Manufacturer no.: CM9A2B

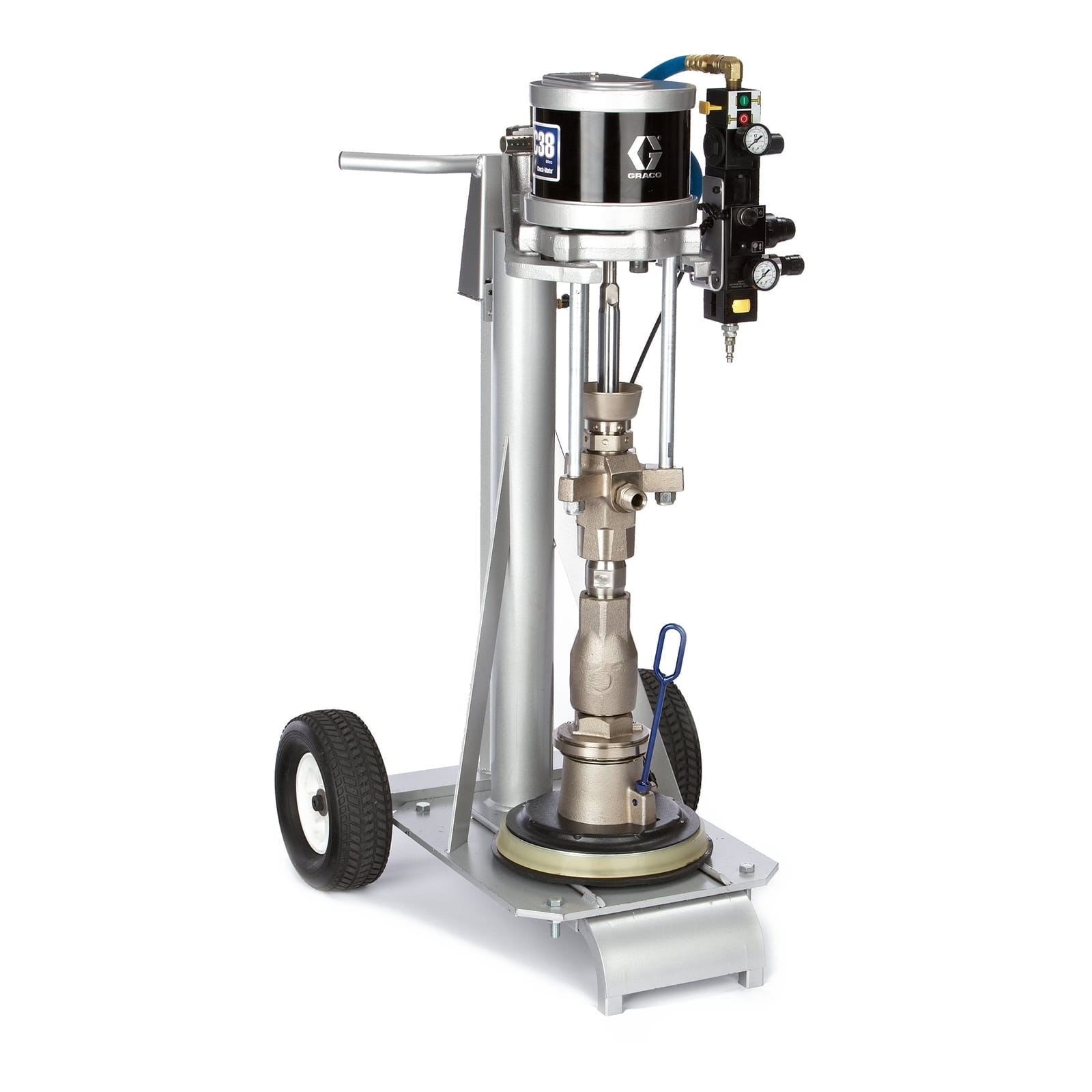

20 L L20C chassis-mounted feeder, ratio 61:1

€8,805.33*

% €12,229.63* (28% saved)

Prices include VAT plus shipping costs

€7,399.44*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange

Free shipping within Germany

EU B2B: net prices with valid VAT ID

Also interesting

Product information

Graco feeding systems reliably deliver single component sealants, adhesives and other medium to high viscosity materials from pails or drums to the measuring and dispensing systems.

Emptying device for large quantities of sealants at ambient temperature, adhesives and other medium to high viscosity materials

20 litre (5 gallon) pail sizes offer the same proven technologies as the larger systems, but with smaller NXT air motors.
Graco S20c - Equivalent to S20 but with a chassis
Industry-first controllers give you immediate and important information at the touch of a button
Quick bucket placement
Plate scrapers can be replaced in seconds
Quick disconnect, turnbuckle attachment and pump cartridge packs allow pump maintenance without removing it from the ram
High-quality, durable parts reduce maintenance time and maximise uptime

Ambient/hot-melting/hot-melting:	Not heated
Application:	Bonding, sealing, sealing, potting, encapsulation, injection molding, spraying, liquid conveying, unloading, underfilling
Container type:	Bucket
Energy type:	Pneumatic
Material container volume (litres):	20
Material follower plate:	Normal steel
Maximum air supply pressure (bar):	8.62
Maximum air supply pressure (kPa):	862
Maximum air supply pressure (kg/cm²):	8.79
Maximum delivery rate (L/min):	3.4
Maximum height (cm):	228.6
Maximum height (m):	2.29
Maximum height (mm):	2286
Maximum inlet air pressure (psi):	125
Maximum material pressure (bar):	420.6
Maximum material pressure (kPa):	42060
Maximum material pressure (psi):	6100
Maximum operating pressure (MPa):	42.1
Maximum operating pressure (kPa):	42100
Maximum operating pressure (psi):	6100
Maximum operating temperature (°C):	49
Minimum height (cm):	165.1
Minimum height (m):	1.65
Minimum height (mm):	1651
Model:	Check Mate
Permissible operating pressure (bar):	421
Pump type:	Suction piston
Series:	S20c
Total depth (cm):	66.1
Total depth (mm):	661
Total width (cm):	56.2
Total width (mm):	562
Transmission ratio of the pump:	61:1
Type:	Feeding device

More information

Product number: 1032150
Manufacturer: Graco
EAN: 00633955499911
Weight: 124 kg
Length: 960 mm
Width: 750 mm
Height: 1330 mm

Technical details

Specifications

Operating specifications

UPC product	6 3 3955499911
Division	IPD
Price Block	222
Country of Origin	US
Unit	EA
Height	133 CM
Length	96 CM
Width	75 cm
Volume	. 9576 m³
Shipping weight	124 KG
