Manufacturer no.:
247164

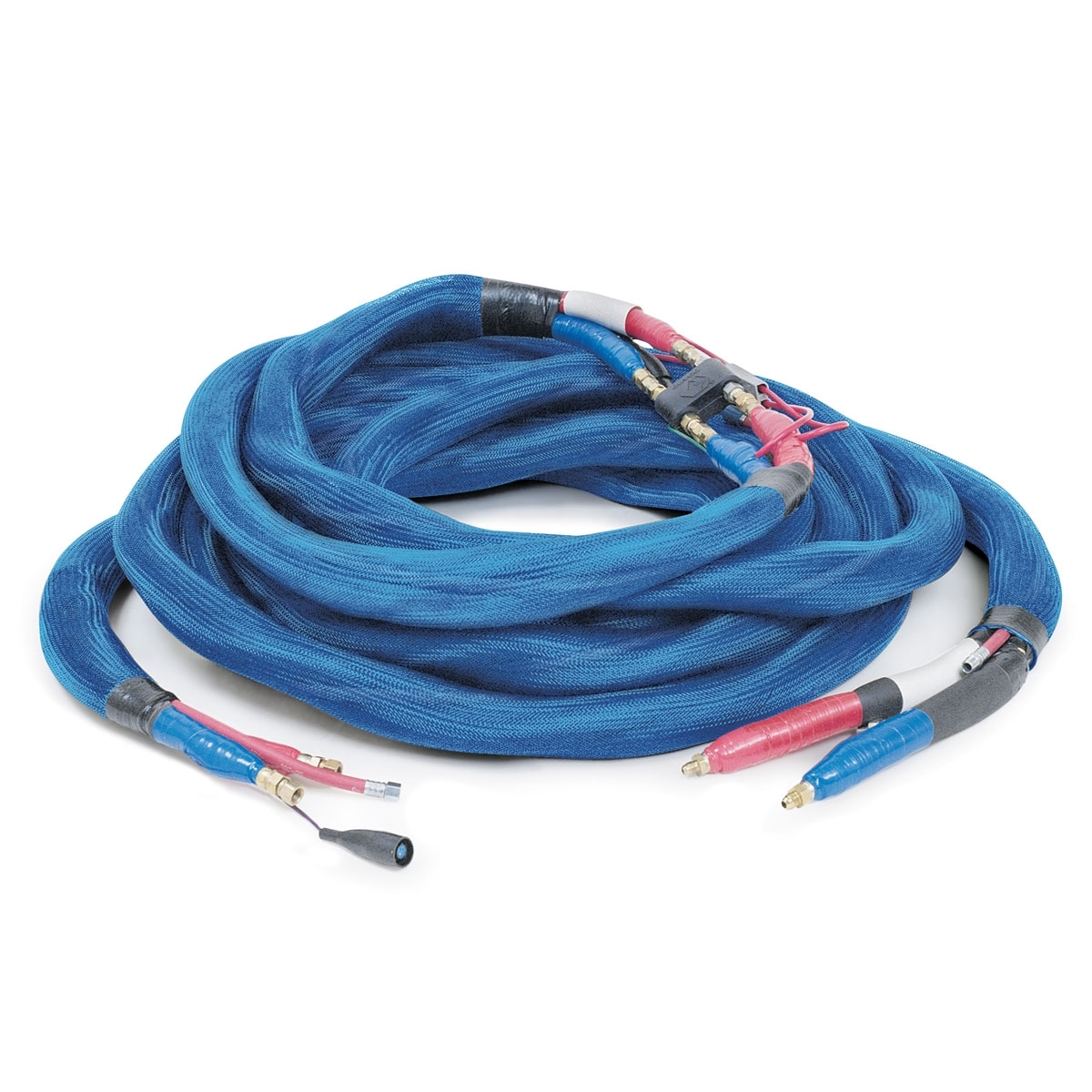

15 m (50') long heated hose with abrasion protection and 6.3 mm (1/4") inner diameter
€4,812.36*
Ready for shipping in 5-8 days
Also interesting
Product information
Graco's heated hoses are specially designed for use with Reactor appliances. Hoses are a central component for the entire system. It is therefore important to achieve precise and uniform heating to ensure the best possible application.
For Reactor dosing devices
The new multi-core copper heating element has significantly improved hose quality:
- Provides 10 times* the service life of previous flat copper heating elements
- Long-term, uniform heating without "hot spots"
- Backwards compatible with existing Reactor heated hoses
- Copper heated hoses are specifically designed for use with Graco dispensers
- Coated with a proprietary butyl layer to protect against moisture-sensitive isocyanates
- Hoses are equipped with foam insulation for heat retention
- Different fitting sizes on the hoses for isocyanates and resin prevent accidental connection of the wrong hoses
- Hoses use a customised connection kit to electrically connect the hoses without having to lay copper under the fittings
- Spiral whip end hose with braided copper wires for added flexibility and longer life
| For use with: | Multi-component dosing devices |
|---|---|
| Hose heater type: | Externally heated |
| Hose length (m): | 15.2 |
| Inner diameter (inch): | 1/4 & 3/8 |
| Inner diameter hose (inch): | 1/4 |
| Inner diameter hose (mm): | 6.35 |
| Maximum operating pressure (MPa): | 24.1 |
| Maximum operating pressure (kPa): | 24100 |
| Maximum operating pressure (psi): | 3500 |
| Model: | Reactor 1 |
| Permissible operating pressure (bar): | 241 |
| Series: | Mesh Scuff |
| Type: | Heated hose |
More information
- Product number: 1038711
- Manufacturer: Graco
- EAN: 00633955017092
- Weight: 16.76 kg
- Length: 730 mm
- Width: 730 mm
- Height: 305 mm
Technical details
Operating specifications
| UPC product | 633955017092 |
|---|---|
| Division | CED |
| Price Block | 046 |
| Country of Origin | US |
| Unit | EA |
| Height | 30.5 CM |
| Length | 73 CM |
| Width | 73 cm |
| Volume | . 163 m³ |
| Shipping weight | 16.76 KG |
| HTS code (GB) | 39 1 7310090 |
| HTS code (EU) | 39 1 7310090 |
Technical
| For Use With | Plural Component Proportioners |
|---|---|
| Hose Inside Diameter (mm) | 6. 35 |
| Maximum working pressure (bar) | 2 41 |
| Maximum working pressure (kPa) | 2 4 100 |
| Maximum working pressure (psi) | 3 5 00 |
| Maximum working pressure (MPa) | 24. 1 |
| Model | Reactor 1 |
| Series | Mesh Scuff |
| Trousers Heating type | External Heated |
| Scuff Guard Type | Mesh Scuff |
| Compatible Sprayer | Reactor 1 |
| Temperature Wire | Ther moc ouple |
