Manufacturer no.: 256548

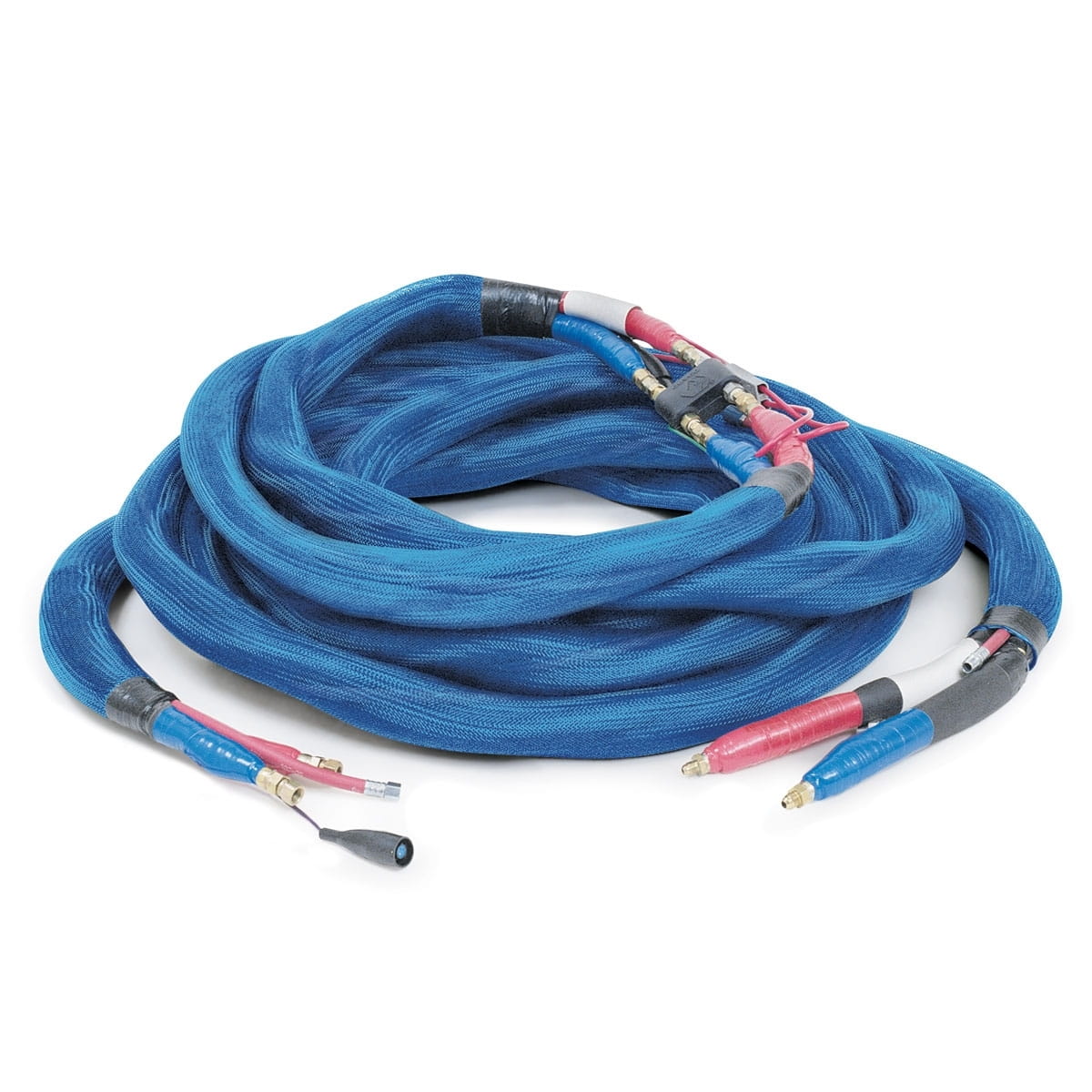

15 m (50') heated high-pressure hose with thermocouple, wear protection and 1/2" internal diameter

€4,695.74*

Prices include VAT plus shipping costs

€3,946.00*

Price excl. VAT

Ready for shipping in 5-8 Werktage

14 days free exchange

Free shipping within Germany

Also interesting

Product information

Graco's heated hoses are specially designed for use with Reactor appliances. Hoses are a central component for the entire system. It is therefore important to achieve precise and uniform heating to ensure the best possible application.

For Reactor dosing devices

The new multi-core copper heating element has significantly improved hose quality:
- Provides 10 times* the service life of previous flat copper heating elements
- Long-term, uniform heating without "hot spots"
- Backwards compatible with existing Reactor heated hoses
Copper heated hoses are specifically designed for use with Graco dispensers
Coated with a proprietary butyl layer to protect against moisture-sensitive isocyanates
Hoses are equipped with foam insulation for heat retention
Different fitting sizes on the hoses for isocyanates and resin prevent accidental connection of the wrong hoses
Hoses use a customised connection kit to electrically connect the hoses without having to lay copper under the fittings
Spiral whip end hose with braided copper wires for added flexibility and longer life

For use with:	Multi-component dosing devices
Hose length (m):	15.2
Maximum operating pressure (MPa):	24.1
Maximum operating pressure (kPa):	24100
Maximum operating pressure (psi):	3500
Model:	Reactor Heated Hoses
Permissible operating pressure (bar):	241
Series:	Mesh Scuff
Type:	Hose set
