Manufacturer no.:
24Y679

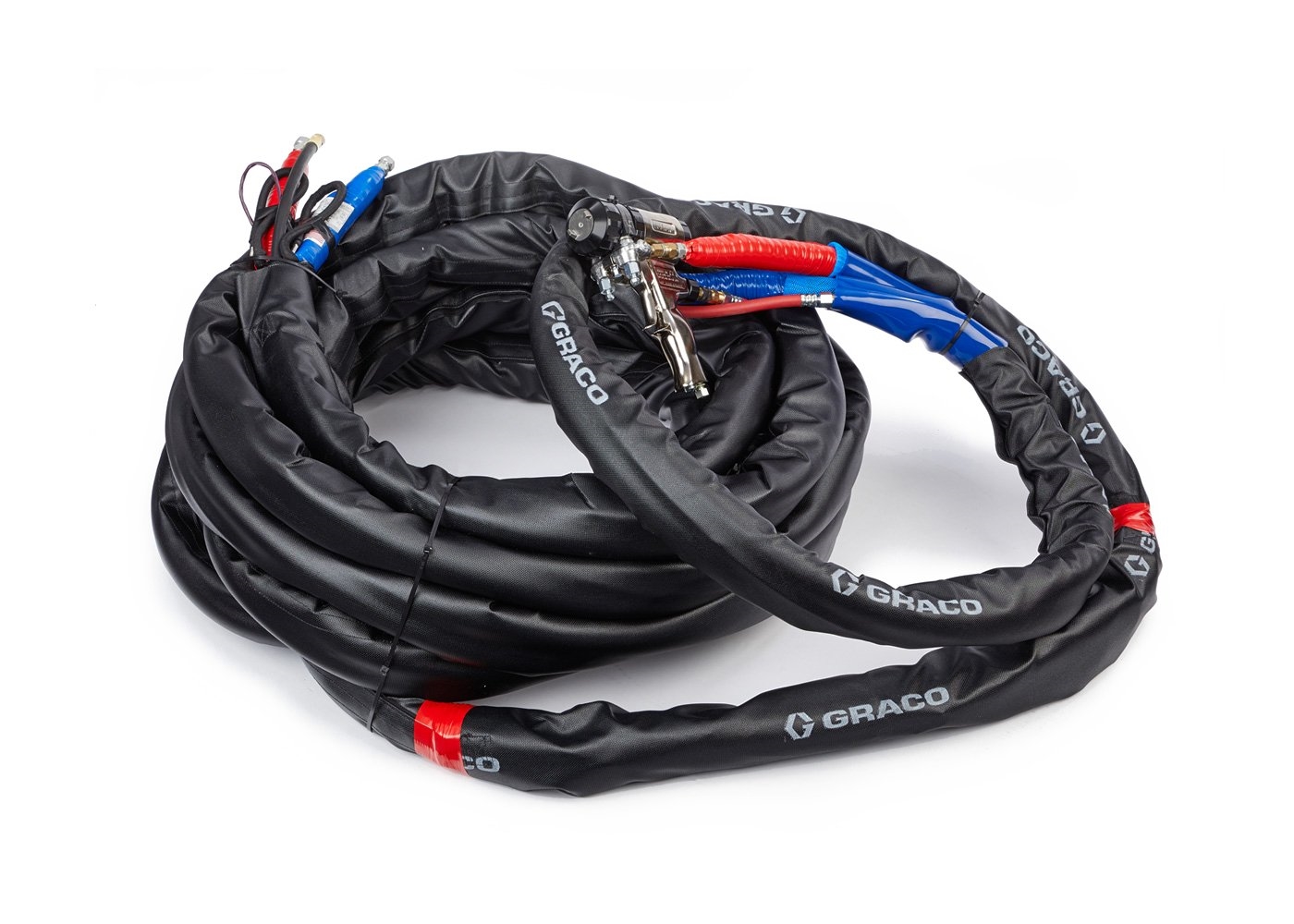

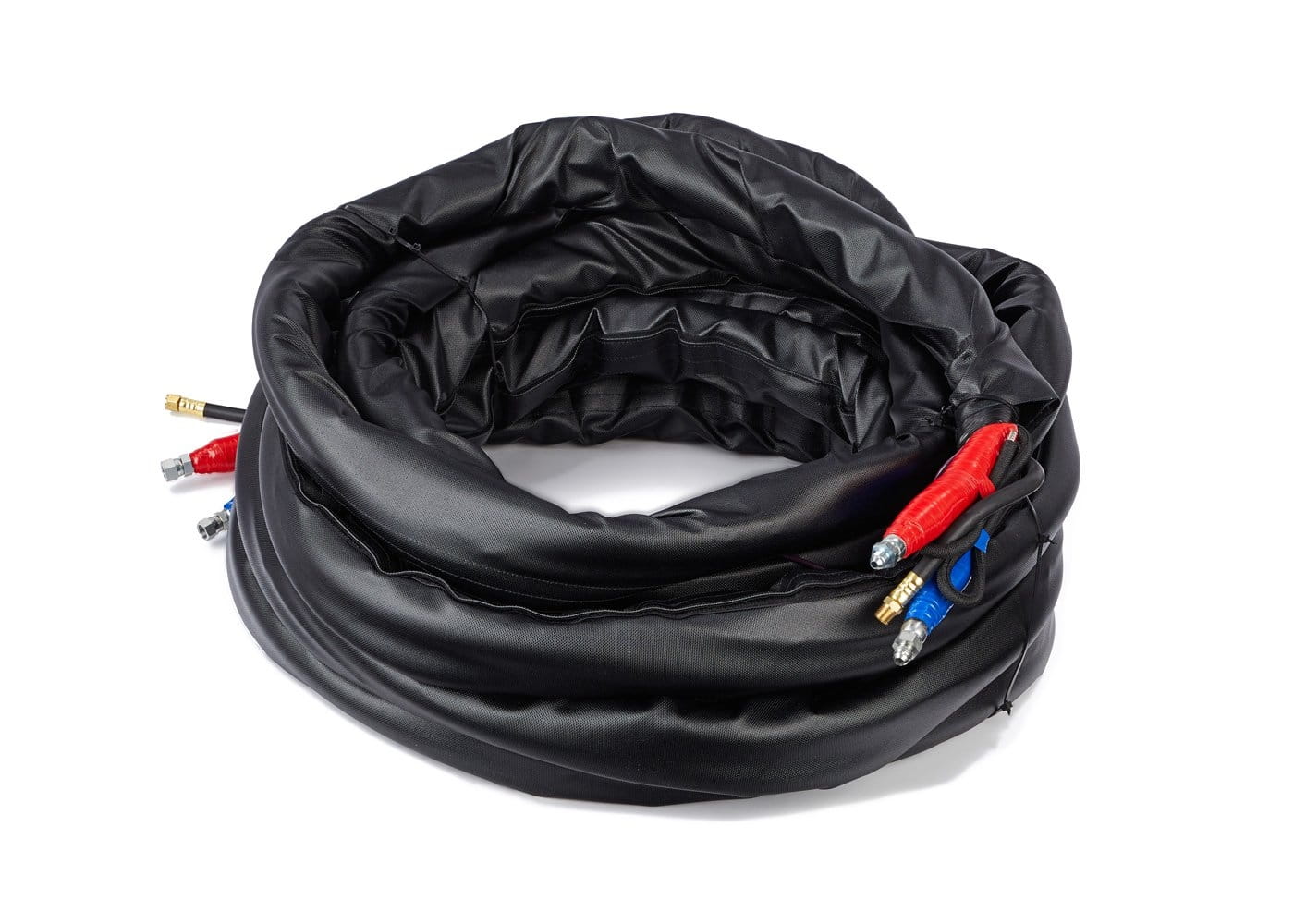

15 m (50 ft) high pressure heated hose with thermocouple, Xtreme-Wrap anti-abrasion protection and 9.5 mm (3/8") internal diameter
€4,129.30*
Ready for shipping in 5-8 days
Also interesting
Product information
Graco heated hoses are designed specifically for use with Reactor equipment. Hoses are a critical component for the entire system, so it is important to achieve precise and consistent heating for the best possible application.
For Reactor dispensers
The new multi-core copper heating element has significantly improved hose quality:
- Offers 10x* the lifespan compared to previous flat copper heaters
- Long-term, even heating without "hot spots"
- Backwards compatible with existing Reactor heated hoses
New Xtreme-Wrap abrasion protection
- Form-fitting to the hose, no more baggy excess material
- Made of urethane-coated ballistic nylon for puncture and tear resistance, abrasion protection, and oil and water resistance
- Releases surface moisture and does not absorb water that would weigh down the hose bundle; will not freeze in cold temperatures
- Full-length hook-and-loop enclosure for easy access to hoses, fittings, and fluid temperature sensors

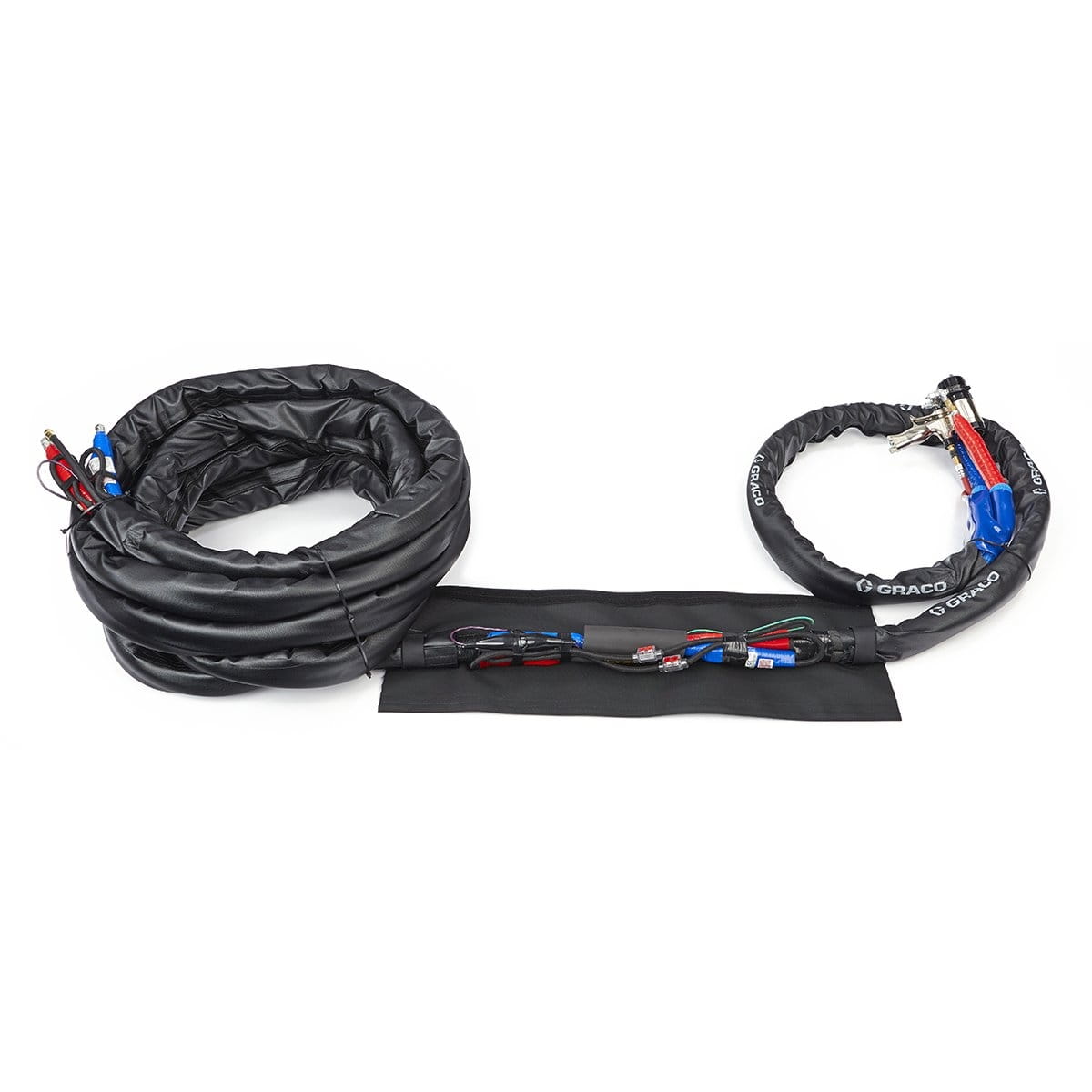

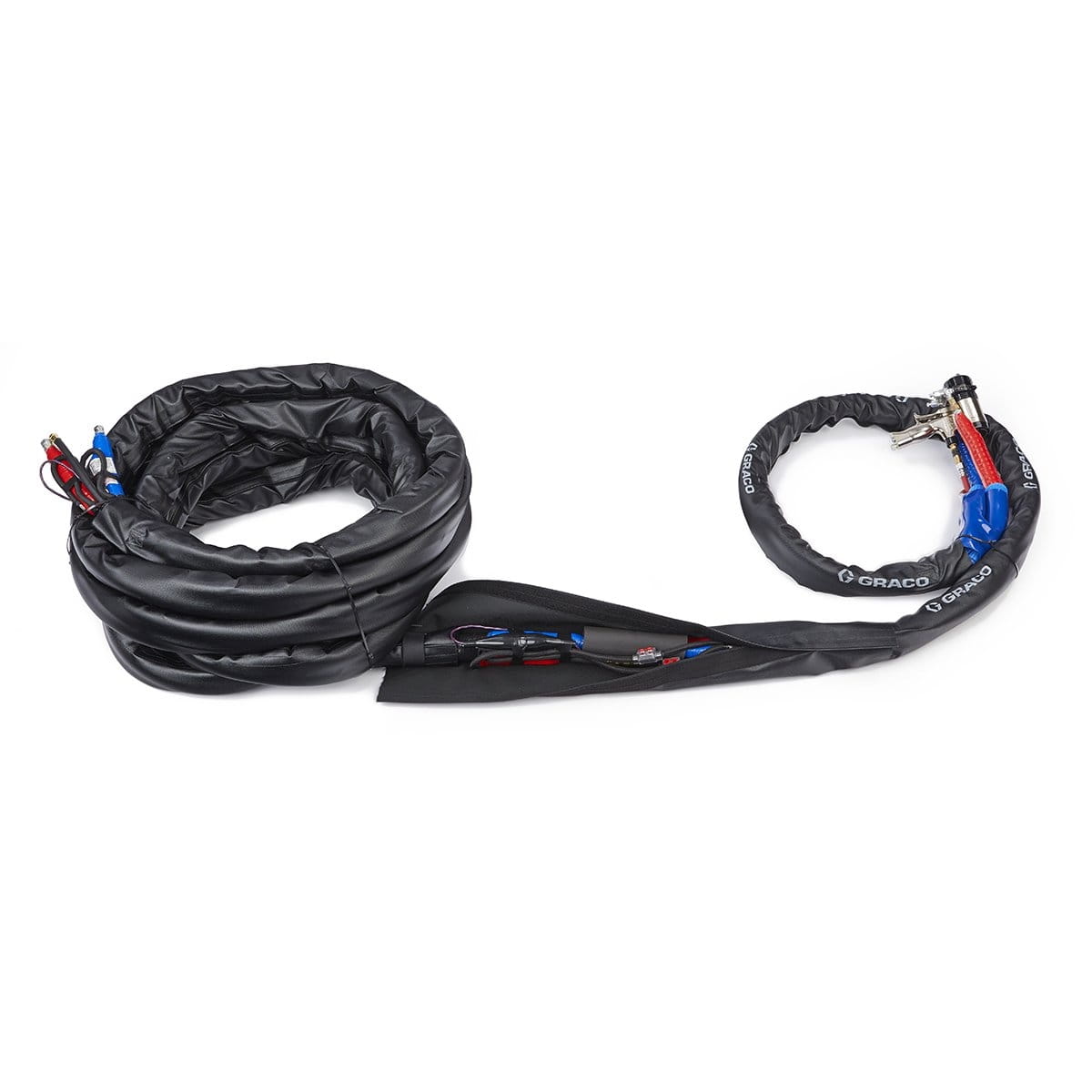

Joint protection
- The joint protection offers additional protection at the most vulnerable point of the hose: the electrical connections, hose fittings and material temperature sensors. Every 15 m (50 ft) of hose with the new Xtreme-Wrap includes a joint protector.
- The heated copper hoses are designed specifically for use with Graco dispensers
- Coated with a proprietary butyl layer to protect against moisture-sensitive isocyanates.
- Hoses are fitted with foam insulation for heat retention.
- Different fitting sizes on the hoses for isocyanates and resin prevent the incorrect hoses from being connected accidentally
- Hoses utilise customised fitting set to electrically connect the hoses without the need to run copper under the fittings
- Spiral whip hose with braided copper wires for added flexibility and longer service life
| For use with: | Multi-component dosing devices |
|---|---|
| Hose heater type: | Externally heated |
| Hose length (m): | 15.2 |
| Inner diameter (inch): | 3/8 |
| Inner diameter hose (inch): | 3/8 |
| Inner diameter hose (mm): | 9,525 |
| Maximum operating pressure (MPa): | 24.1 |
| Maximum operating pressure (kPa): | 24100 |
| Maximum operating pressure (psi): | 3500 |
| Model: | Reactor 1 |
| Permissible operating pressure (bar): | 241 |
| Series: | Xtreme Scuff |
| Type: | Heated hose |
More information
- Product number: 1031501
- Manufacturer: Graco
- EAN: 00633955317338
- Weight: 21.744 kg
- Length: 720 mm
- Width: 720 mm
- Height: 300 mm
Technical details
Operating specifications
| UPC product | 6 3 3955317338 |
|---|---|
| Division | CED |
| Price Block | 046 |
| Country of Origin | US |
| Unit | EA |
| Height | 30 CM |
| Length | 72 cm |
| Width | 72 cm |
| Volume | . 156 m³ |
| Shipping weight | 21.74 KG |
| HTS code (GB) | 3 9 17330090 |
| HTS code (EU) | 3 9 17330090 |
Technical
| For Use With | Plural Component Proportioners |
|---|---|
| Hose Inside Diameter (mm) | 9. 525 |
| Maximum working pressure (bar) | 2 41 |
| Maximum working pressure (kPa) | 2 4 100 |
| Maximum working pressure (psi) | 3 5 00 |
| Maximum working pressure (MPa) | 24. 1 |
| Model | Reactor 1 |
| Series | Xtreme Wrap |
| Hose Heating Type | External Heated |
| Scuff Guard Type | Xtreme Wrap |
| Compatible Sprayer | Reactor 1 |
| Temperature Wire | Thermocou ple |
