Manufacturer no.: 246046

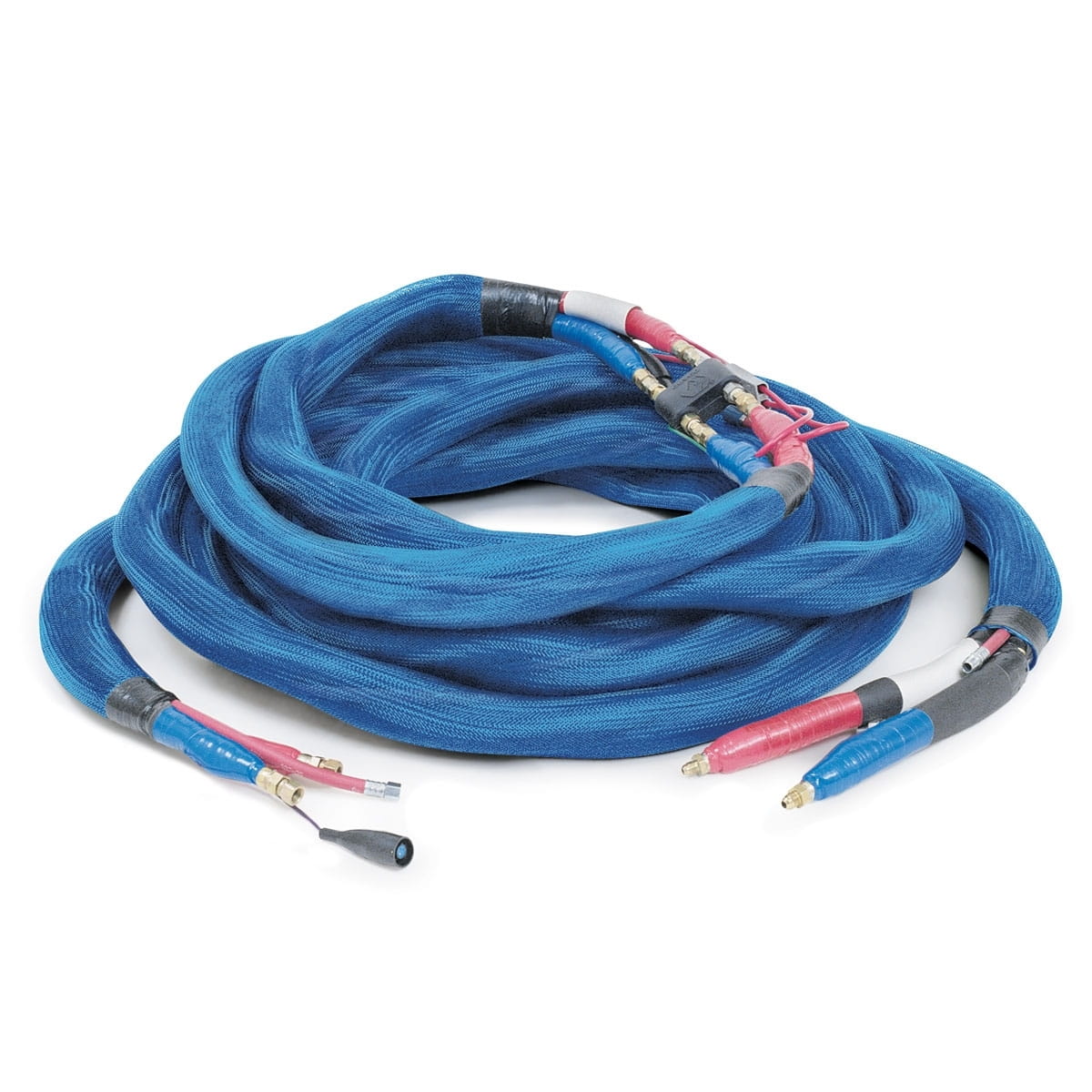

15 m (50 ft) heated low-pressure thermocouple hose with 9.5 mm (3/8") inner diameter

Number	Unit price
Until 3	€2,329.43* €2,588.25* (10% saved) €1,957.50* (Price excl. VAT)
Away 4	€2,212.96* €2,588.25* (14.5% saved) €1,859.63* (Price excl. VAT)

Prices include VAT plus shipping costs

€1,957.50*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange

Free shipping within Germany

EU B2B: net prices with valid VAT ID

Also interesting

Product information

Graco's heated hoses are specially designed for use with Reactor appliances. Hoses are a central component for the entire system. It is therefore important to achieve precise and uniform heating to ensure the best possible application.

For Reactor dosing devices

The new multi-core copper heating element has significantly improved hose quality:
- Provides 10 times* the service life of previous flat copper heating elements
- Long-term, uniform heating without "hot spots"
- Backwards compatible with existing Reactor heated hoses
Copper heated hoses are specifically designed for use with Graco dispensers
Coated with a proprietary butyl layer to protect against moisture-sensitive isocyanates
Hoses are equipped with foam insulation for heat retention
Different fitting sizes on the hoses for isocyanates and resin prevent accidental connection of the wrong hoses
Hoses use a customised connection kit to electrically connect the hoses without having to lay copper under the fittings
Spiral whip end hose with braided copper wires for added flexibility and longer life
Thermocouple
- Very accurate and reliable method of monitoring and maintaining temperature

Artikel Art:	Schlauch
Schlauch Durchmesser:	9 mm
Schlauch Länge:	15 m

More information

Product number: 1035982
Manufacturer: Graco
EAN: 00633955884694
Weight: 17.441 kg
Length: 792 mm
Width: 792 mm
Height: 274 mm

Technical details

Specifications

Operating specifications

UPC product	6 3 3955884694
Division	CED
Price Block	046
Country of Origin	US
Unit	EA
Height	27.4 CM
Length	79.2 CM
Width	79.2 CM
Volume	0 . 172 m³
Shipping weight	17.44 KG
HTS code (EU)	4 0 09420090
HTS code (GB)	4 0 09420090

Technical

For Use With	Plural Component Proportioners
Hose Inside Diameter (mm)	9. 525
Maximum working pressure (bar)	138
Maximum working pressure (kPa)	1 3 800
Maximum working pressure (psi)	2 0 00
Maximum working pressure (MPa)	13. 8
Model	Reactor 1
Series	No S cuff
Hose heating type	External Heated
Scuff Guard Type	No S cuff
Compatible sprayer	Reactor 1
Temperature Wire	Ther moc ouple
