Manufacturer no.:
246053

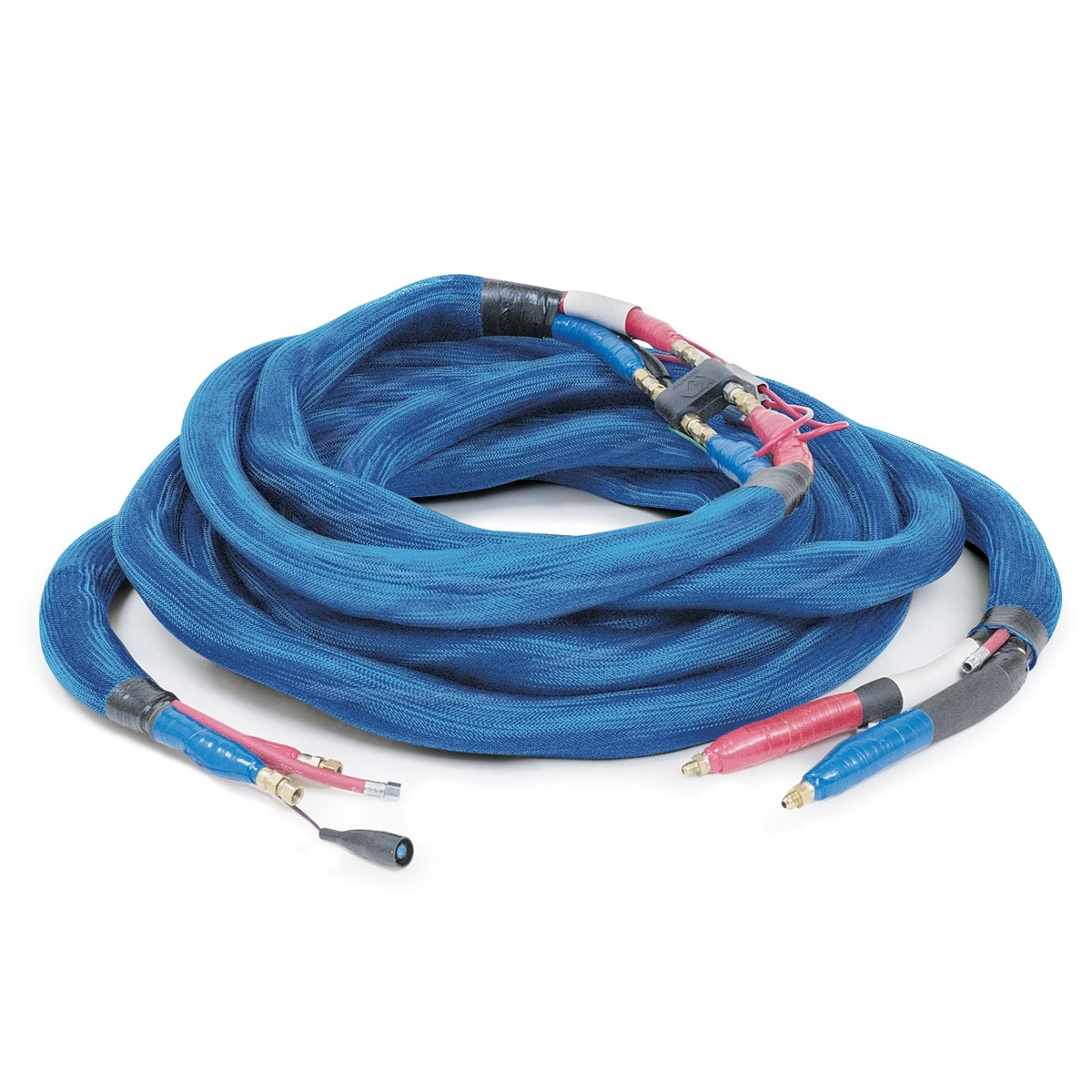

15 m (50 ft) heated hose with 9.5 mm (3/8") inner diameter
€3,495.03*
Ready for shipping in 5-8 days
Also interesting
Product information
Graco's heated hoses are specially designed for use with Reactor appliances. Hoses are a central component for the entire system. It is therefore important to achieve precise and uniform heating to ensure the best possible application.
For Reactor dosing devices
The new multi-core copper heating element has significantly improved hose quality:
- Provides 10 times* the service life of previous flat copper heating elements
- Long-term, uniform heating without "hot spots"
- Backwards compatible with existing Reactor heated hoses
- Copper heated hoses are specifically designed for use with Graco dispensers
- Coated with a proprietary butyl layer to protect against moisture-sensitive isocyanates
- Hoses are equipped with foam insulation for heat retention
- Different fitting sizes on the hoses for isocyanates and resin prevent accidental connection of the wrong hoses
- Hoses use a customised connection kit to electrically connect the hoses without having to lay copper under the fittings
- Spiral whip end hose with braided copper wires for added flexibility and longer life
Thermocouple
- Very accurate and reliable method of monitoring and maintaining temperature
| For use with: | Multi-component dosing devices |
|---|---|
| Hose heater type: | Externally heated |
| Hose length (m): | 15.2 |
| Inner diameter (inch): | 3/8 |
| Inner diameter hose (inch): | 3/8 |
| Inner diameter hose (mm): | 9,525 |
| Maximum operating pressure (MPa): | 24.1 |
| Maximum operating pressure (kPa): | 24100 |
| Maximum operating pressure (psi): | 3500 |
| Model: | Reactor 1 |
| Permissible operating pressure (bar): | 241 |
| Series: | No scuff |
| Type: | Heated hose |
More information
- Product number: 1033931
- Manufacturer: Graco
- EAN: 00633955889118
- Weight: 17.16 kg
- Length: 720 mm
- Width: 720 mm
- Height: 300 mm
Technical details
Operating specifications
| UPC product | 633955889118 |
|---|---|
| Division | CED |
| Price Block | 0 46 |
| Country of Origin | US |
| Unit | EA |
| Height | 30 CM |
| Length | 72 CM |
| Width | 72 cm |
| Volume | . 156 m³ |
| Shipping weight | 17.16 KG |
| HTS code (EU) | 4 0 09420090 |
| HTS code (GB) | 4 0 09420090 |
Technical
| For Use With | Plural Component Proportioners |
|---|---|
| Hose Inside Diameter (mm) | 9. 525 |
| Maximum working pressure (bar) | 2 41 |
| Maximum working pressure (kPa) | 2 4 100 |
| Maximum working pressure (psi) | 3 5 00 |
| Maximum working pressure (MPa) | 24. 1 |
| Model | Reactor 1 |
| Series | No S cuff |
| Hose heating type | External Heated |
| Scuff Guard Type | Mesh Scuff |
| Compatible Sprayer | Reactor 1 |
| Temperature Wire | Thermocou ple |
Further manufacturer information
Produktbroschüre
Produkthandbücher
- 309572j , Power-Lock Beheizter Schlauch (Deutsch)
- 309572j , Power-Lock Beheizter Schlauch (Nederlands)
- 309572j , Power-Lock Beheizter Schlauch (русский)
- 309572j , Power-Lock Beheizter Schlauch (Italiano)
- 309572j , Power-Lock Beheizter Schlauch (Français)
- 309572j , Power-Lock Beheizter Schlauch (Español)
- 309572j , Power-Lock Beheizter Schlauch (English)
- 312056C - Power-Lock Splice Kit 261821, Instructions-Parts, US (English) (Deutsch)
- 312056C - Power-Lock Splice Kit 261821, Instructions-Parts, US (English) (Nederlands)
- 312056C - Power-Lock Splice Kit 261821, Instructions-Parts, US (English) (русский)
- 312056C - Power-Lock Splice Kit 261821, Instructions-Parts, US (English) (Italiano)
- 312056C - Power-Lock Splice Kit 261821, Instructions-Parts, US (English) (Français)
- 312056C - Power-Lock Splice Kit 261821, Instructions-Parts, US (English) (Español)
- 312056C - Power-Lock Splice Kit 261821, Instructions-Parts, US (English) (English)
Verkaufsliteratur
- 349104DE SCHLÄUCHE,SPRITZPISTOLEN UND ZUBEHÖR (Deutsch)
- 349104DE SCHLÄUCHE,SPRITZPISTOLEN UND ZUBEHÖR (Magyar)
- 349104DE SCHLÄUCHE,SPRITZPISTOLEN UND ZUBEHÖR (Čeština)
- 349104DE SCHLÄUCHE,SPRITZPISTOLEN UND ZUBEHÖR (English (UK))
- 349104DE SCHLÄUCHE,SPRITZPISTOLEN UND ZUBEHÖR (Nederlands)
- 349104DE SCHLÄUCHE,SPRITZPISTOLEN UND ZUBEHÖR (Polski)
- 349104DE SCHLÄUCHE,SPRITZPISTOLEN UND ZUBEHÖR (Svenska)
- 349104DE SCHLÄUCHE,SPRITZPISTOLEN UND ZUBEHÖR (Türkçe)
- 349104DE SCHLÄUCHE,SPRITZPISTOLEN UND ZUBEHÖR (Español)
- 349104DE SCHLÄUCHE,SPRITZPISTOLEN UND ZUBEHÖR (Français)
- 349104DE SCHLÄUCHE,SPRITZPISTOLEN UND ZUBEHÖR (Italiano)
