Manufacturer no.:
236151

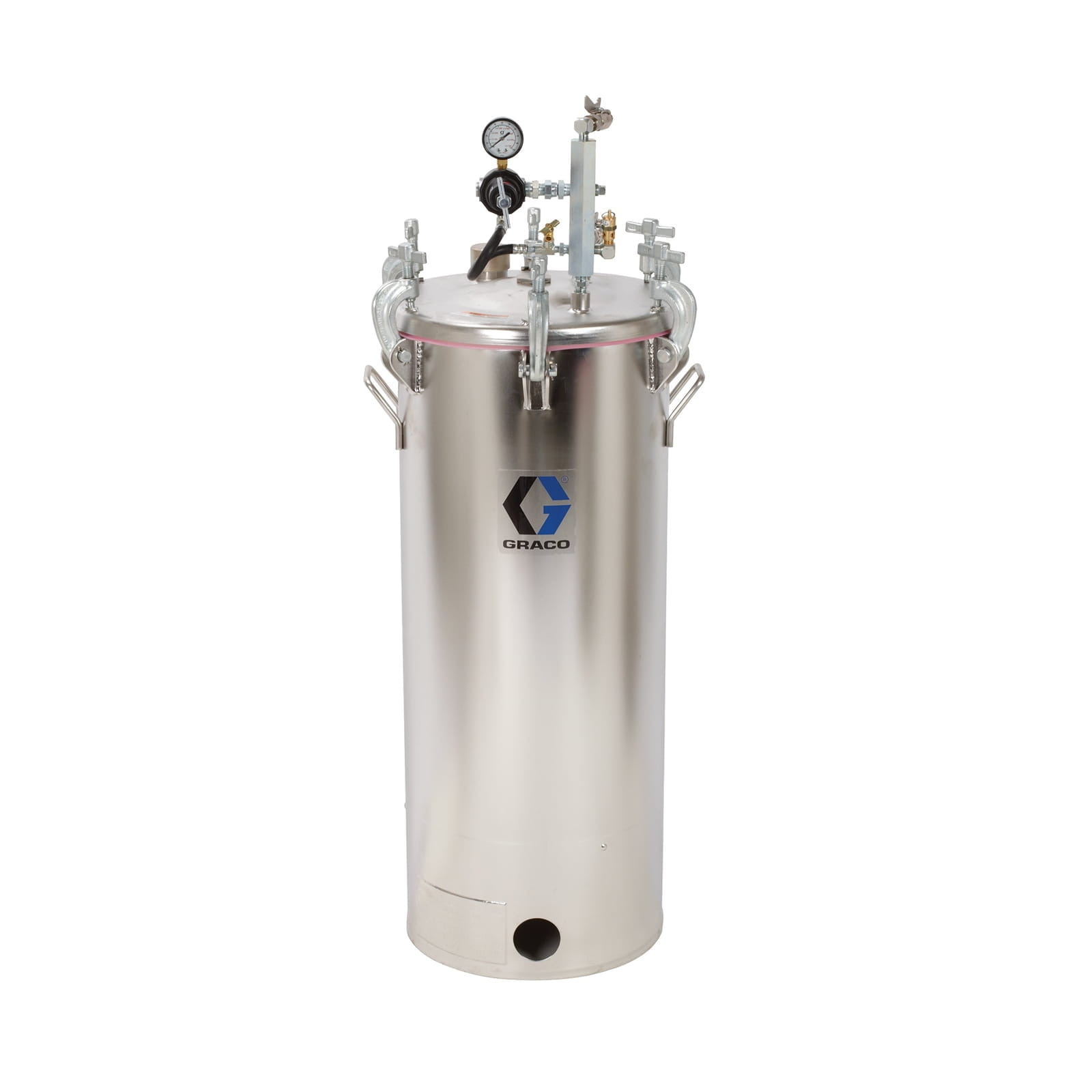

15-gallon high-pressure vessel (HVLP), set to 100 psi, ASME-compliant, 113.2 cm (44.6 in.), 42 kg (92 lbs), stainless steel
€4,188.95*
% €4,787.37* (12.5% saved)Ready for shipping in 5-8 days
Also interesting
Product information
Graco pressure vessels feature galvanised surfaces to prevent dirt accumulation, ensure contaminant-free operation and are precision welded and finished.
- ASME compliant so that factory standards are met
- High quality stainless steel design is compatible with many materials
- For use in spit-only applications, for material/catalyst feed or as a moisture-sensitive material container
| Diffuser size (cm): | 9,525 |
|---|---|
| Gender of the inlet thread: | External thread |
| Gender of the outlet thread: | External thread |
| Inlet size (cm): | 635 |
| Inlet size (inch): | 1/4 |
| Inlet size (mm): | 6.35 |
| Inlet thread type: | NPT |
| Maximum operating pressure (MPa): | 0.7 |
| Maximum operating pressure (kPa): | 700 |
| Maximum operating pressure (psi): | 100 |
| Maximum volume capacity (L): | 57 |
| Outlet size (inch): | 3/8 |
| Outlet size (mm): | 9,525 |
| Outlet thread type: | NPSM |
| Permissible operating pressure (bar): | 7 |
| Total height (cm): | 113.2 |
| Total height (mm): | 1132 |
| Total width (cm): | 48.3 |
| Total width (mm): | 483 |
| Type: | tank |
| Weight (kg): | 42 |
| Wetted material: | Stainless steel, santoprene, polyamide, PET |
More information
- Product number: 1033571
- Manufacturer: Graco
- EAN: 00633955227422
- Weight: 48 kg
- Length: 500 mm
- Width: 500 mm
- Height: 1270 mm
Technical details
Operating specifications
| UPC product | 633955227422 |
|---|---|
| Division | IPD |
| Price Block | 093 |
| Country of Origin | US |
| Unit | EA |
| Height | 127 CM |
| Length | 50 CM |
| Width | 50 cm |
| Volume | . 318 m³ |
| Shipping weight | 48 KG |
Technical
| Inlet size (cm) | 0. 635 |
|---|---|
| Inlet size (in) | 1/4 |
| Inlet size (mm) | 6. 35 |
| Maximum volume capacity (gal) | 15 |
| Maximum volume capacity (L) | 57 |
| Maximum working pressure (bar) | 7 |
| Maximum working pressure (kPa) | 700 |
| Maximum working pressure (psi) | 100 |
| Outlet Size (cm) | 0. 9525 |
| Outlet Size (in) | 3/8 |
| Outlet size (mm) | 9. 525 |
| Overall height (cm) | 113. 2 |
| Overall height (in) | 44. 57 |
| Overall height (mm) | 1 1 32 |
| Overall width (cm) | 48. 3 |
| Overall width (in) | 19 |
| Overall width (mm) | 4 83 |
| Weight (kg) | 42 |
| Inlet thread gender | Male |
| Outlet thread gender | Male |
| Maximum working pressure (MPa) | 0. 7 |
