Manufacturer no.:
P11LCS

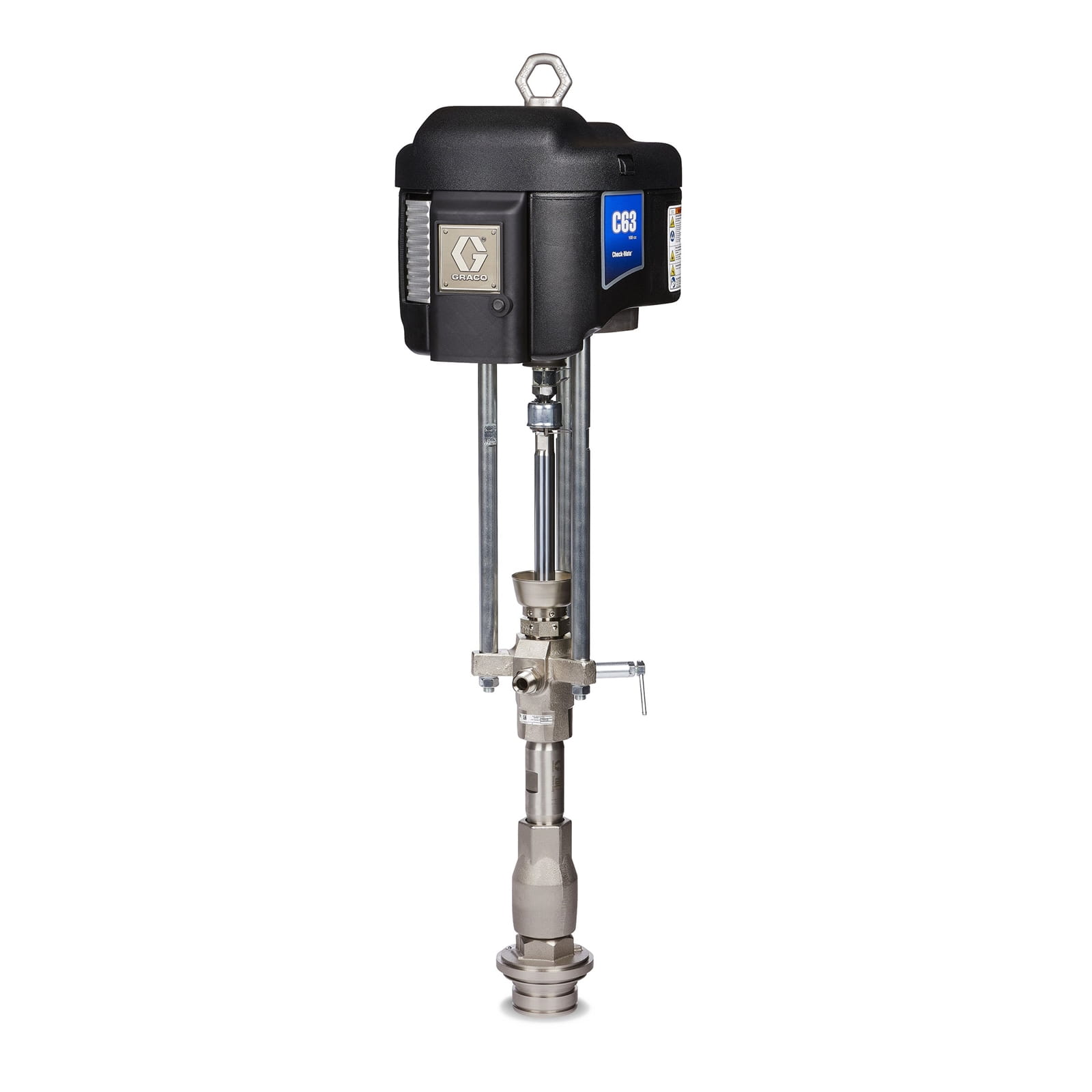

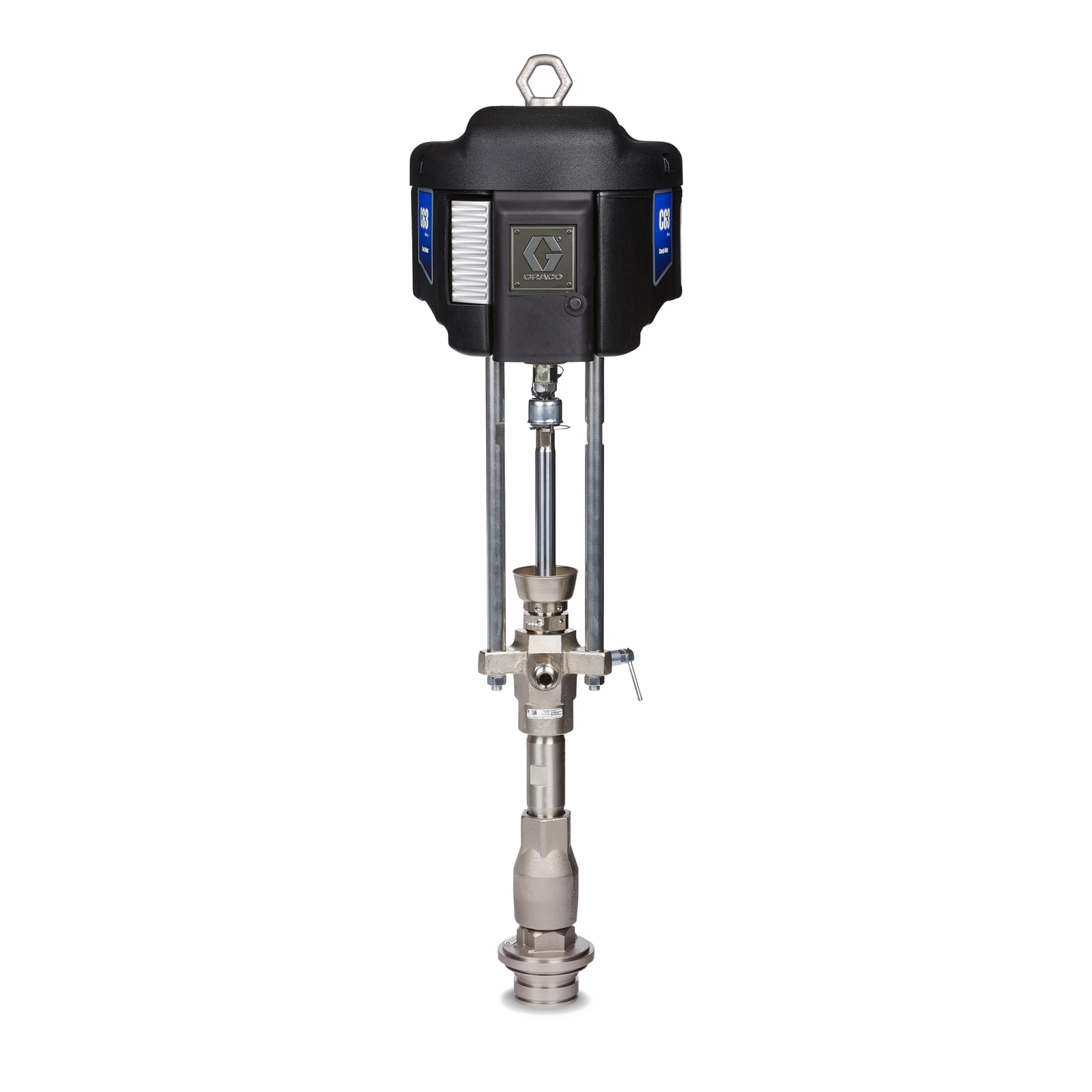

11:1 - 60 cm³ Dura-Flo pump with NXT 400 air motor, severe duty, carbon steel construction
€6,968.27*
% €8,576.33* (18.75% saved)Ready for shipping in 5-8 days
Also interesting
Product information
Graco feed pumps reliably deliver one-component sealants, adhesives and other low- to medium-viscosity materials to dosing systems. Maximise your system's production capacity.
Long service life – Check-Mate pumps are proven workhorses
- NXT 400 air motor
- Quiet
- Easier maintenance due to modular design
- Air motor with the latest technology
- 60 cm³ Check-Mate displacement pump
- Severe-duty coatings on the piston rods and cylinders extend service life.
Standard threaded coupler -
Replaceable 3/4"-14 NPT male outlet fitting
- Reduces repair costs
Replaceable seat
- Minimises service costs
Cast inlet and outlet housings
- enhances structural integrity
NEW Xtreme® Coupling
- Quick-disconnect coupling makes servicing easy
Replaceable outlet fitting
- Reduces repair costs
Piston valve with floating piston seal
- Maximum pressure equalisation over a wide range of material viscosities
Replaceable seat
- Minimises service costs
| Ambient/hot-melting/hot-melting: | Not heated |
|---|---|
| Application: | Bonding, sealing, sealing, potting, encapsulation, injection molding, spraying, liquid conveying, unloading, underfilling |
| Energy type: | Pneumatic |
| Gender of the material outlet thread: | External thread |
| Includes: | Motor, positive displacement pump, lock washer (6), adapter motor, screw |
| Material: | Normal steel |
| Material outlet thread type: | NPT |
| Maximum operating pressure (MPa): | 7.6 |
| Maximum operating pressure (kPa): | 7600 |
| Maximum operating pressure (psi): | 1100 |
| Model: | Check Mate |
| Permissible operating pressure (bar): | 76 |
| Size of the material outlet opening (inches): | 3/4 |
| Transmission ratio of the pump: | 11:1 |
| Type: | Piston pump system |
More information
- Product number: 1034437
- Manufacturer: Graco
- EAN: 00633955463868
- Weight: 31 kg
- Length: 1600 mm
- Width: 260 mm
- Height: 290 mm
Technical details
Operating specifications
| UPC product | 633955463868 |
|---|---|
| Division | IPD |
| Price Block | 2 22 |
| Country of Origin | US |
| Unit | EA |
| Height | 29 CM |
| Length | 160 CM |
| Width | 26 cm |
| Volume | . 12064 M3 |
| Shipping weight | 31 KG |
