Manufacturer no.: PF1400

100-240 VAC PCF system type 2 with user interface with ON/OFF module, mastic controller and high-resolution volume counter

€25,840.85*

Prices include VAT plus shipping costs

€21,715.00*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange

Free shipping within Germany

EU B2B: net prices with valid VAT ID

Also interesting

Product information

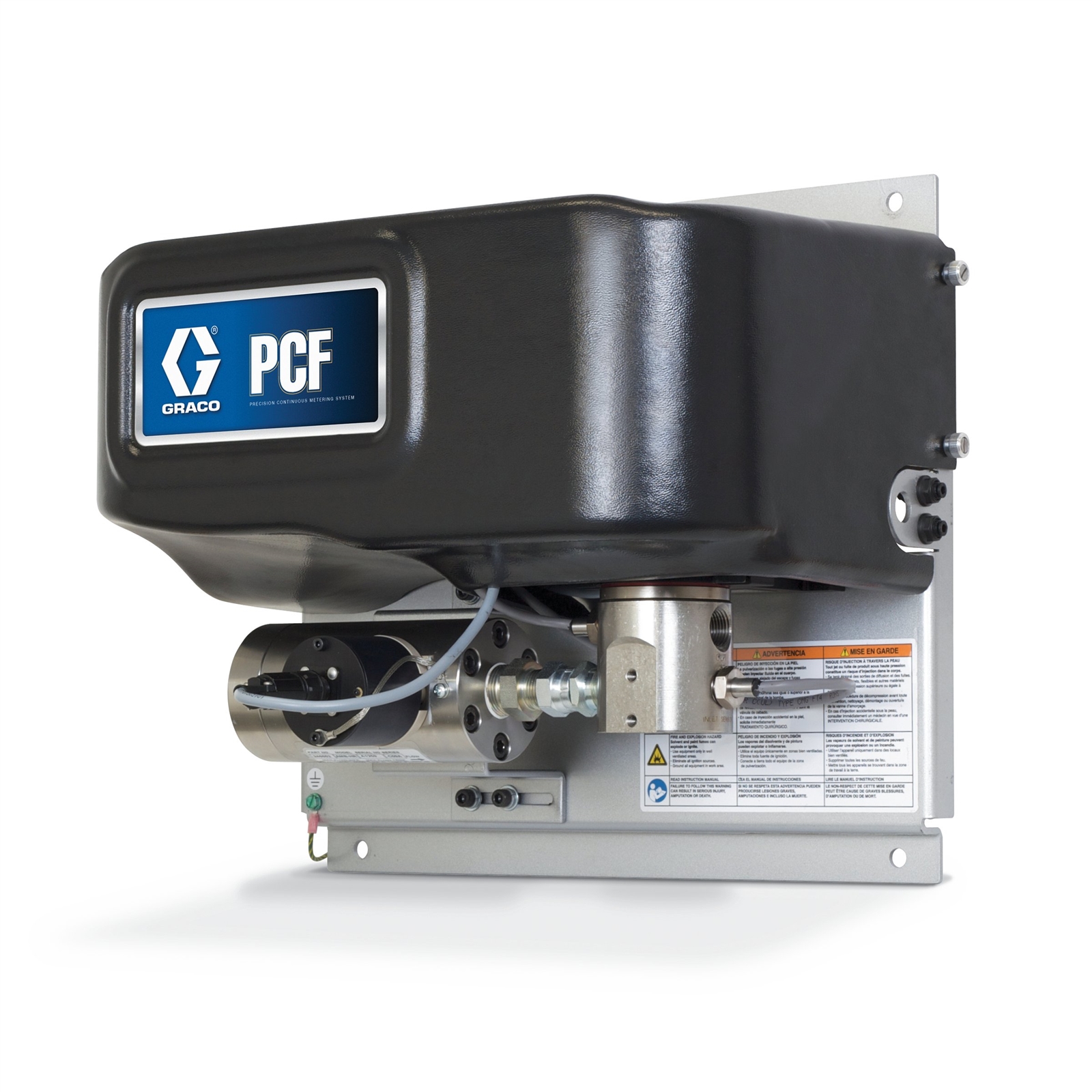

Reduces material waste thanks to superior flow control The Graco PCF metering system used in conjunction with a material feed system and robot platform ensures precise and consistent material flow. Closed-loop technology provides real-time adjustment for changes in material temperatures, viscosities, dispense rates or robot speeds, ensuring highly accurate, consistent dispensing for your operation.

Processes a range of materials including room temperature materials, warm and hot melt materials up to 400°F (204°C) and low to high viscosity materials with unlimited volume.

The next generation of precision dispensing
- Closed-loop "real-time" control ensures precise, continuous dispensing - improves part quality and reduces material waste

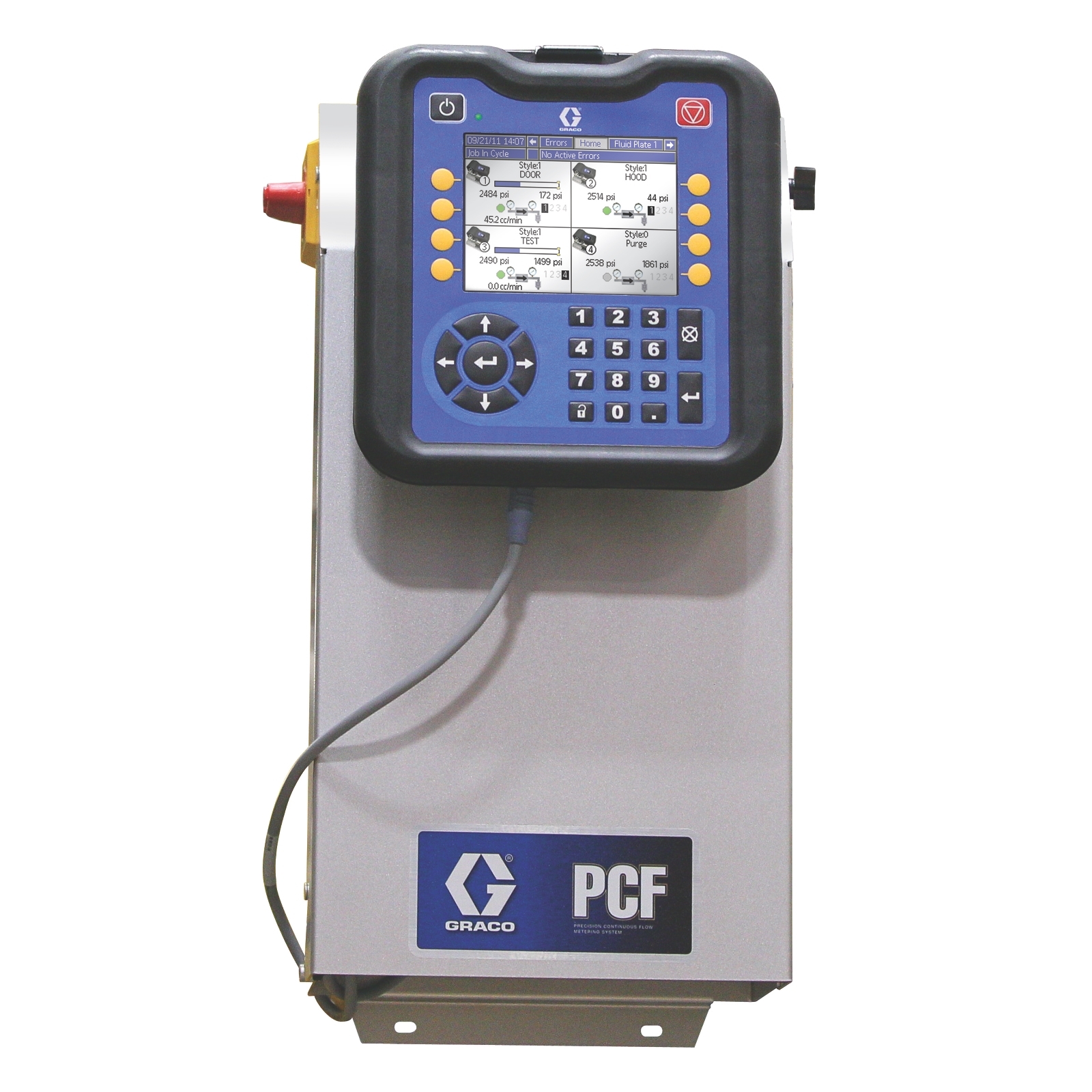

- Intuitive user interface simplifies set-up and reduces training time
- Integrated USB interface for easy data download - enables further analysis of process data
- Multiple gun functions for added productivity - allows programming of up to four guns
- Compact modular design - easy to install, integrate and maintain
- Low cost of ownership - fewer wear parts compared to shot dispensers

Item type:	Regler, Zähler

More information

Product number: 1033024
Manufacturer: Graco
EAN: 00633955055735
Weight: 61.608 kg
Length: 1100 mm
Width: 950 mm
Height: 750 mm

Technical details

Specifications

Operating specifications

UPC product	633955055735
Division	IPD
Price Block	009
Country of Origin	US
Unit	EA
Height	75 CM
Length	110 CM
Width	95 cm
Volume	. 784 m³
Shipping weight	61.61 KG
HTS code (EU)	9032890090
HTS code (GB)	9032890090

Technical

Air inlet size (in)	1/4
Air inlet thread gender	Female
Air outlet size (in)	5/32
Ambient/Warm Melt/Hot Melt	Ambi ent
Amperage (A)	1. 4
Component type	Single Component
Fluid inlet size (in)	3/4
Fluid inlet thread gender	Female
Fluid outlet size (cm)	17281. 1023622047
Fluid outlet size (mm)	1728. 1102362205
Fluid outlet thread gender	Female
Frequency (Hz)	50/60
Includes	Regulator, Flow Meter, FCM Key Token
Maximum air inlet pressure (bar)	8. 27
Maximum air inlet pressure (kPa)	827
Maximum air inlet pressure (psi)	120
Maximum flow rate (cc/min)	7500
Maximum flow rate (L/min)	7. 5
Maximum fluid temperature (°C)	4 9
Maximum fluid temperature (°F)	120
Maximum fluid viscosity (cP)	1000000
Maximum operating temperature (°C)	4 9
Maximum operating temperature (°F)	120
Maximum working pressure (bar)	3 45
Maximum working pressure (kPa)	3 4 500
Maximum working pressure (MPa)	35
Maximum working pressure (psi)	5 0 00
Minimum flow rate (cc/min)	25
Minimum flow rate (GPM)	0. 007
Minimum flow rate (L/min)	0. 025
Minimum fluid viscosity (cP)	1 0 000
Overall Depth (in)	16
Overall height (cm)	55. 9
Overall Height (in)	2 2
Overall height (mm)	559
Overall width (cm)	26. 7
Overall width (in)	10. 5
Overall width (mm)	267
Minimum Ambient Temperature (°C)	40
Maximum ambient temperature (°F)	120
Maximum fluid working pressure (bar)	3 45
Maximum fluid working pressure (MPa)	35
Maximum air inlet pressure (MPa)	0. 83
regulator_type	M astic
number_of_styles_for_fluid_plate	2
Minimum voltage (V ac)	100
Maximum ambient temperature (°C)	4 9
Minimum ambient temperature (°C)	4
Model	PCF
