Binks MXL1231PU, trolley, AC gun & hose, airless and AirCombi pump packages
€6,295.10*
Scope of delivery

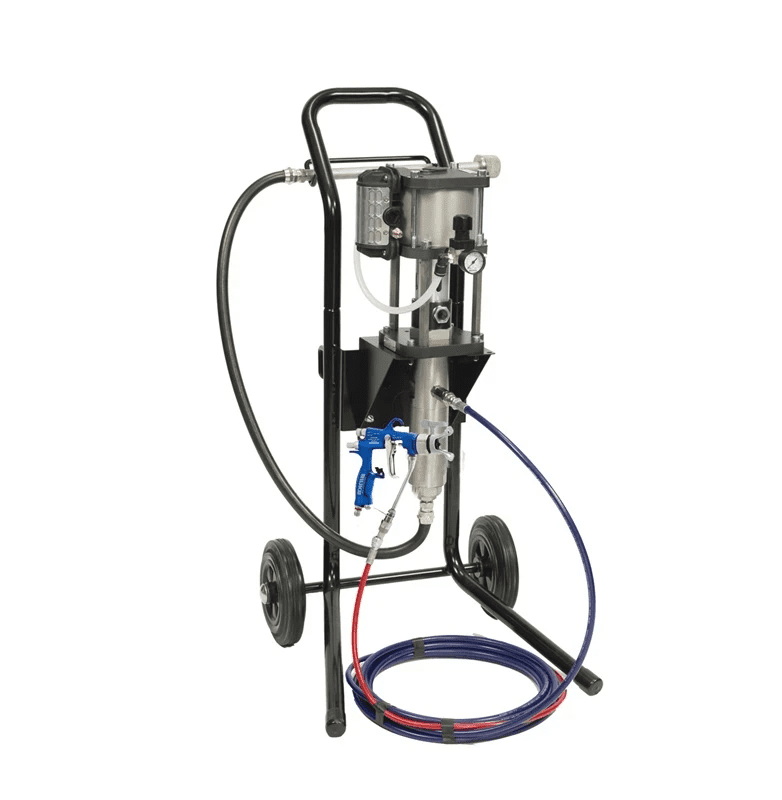

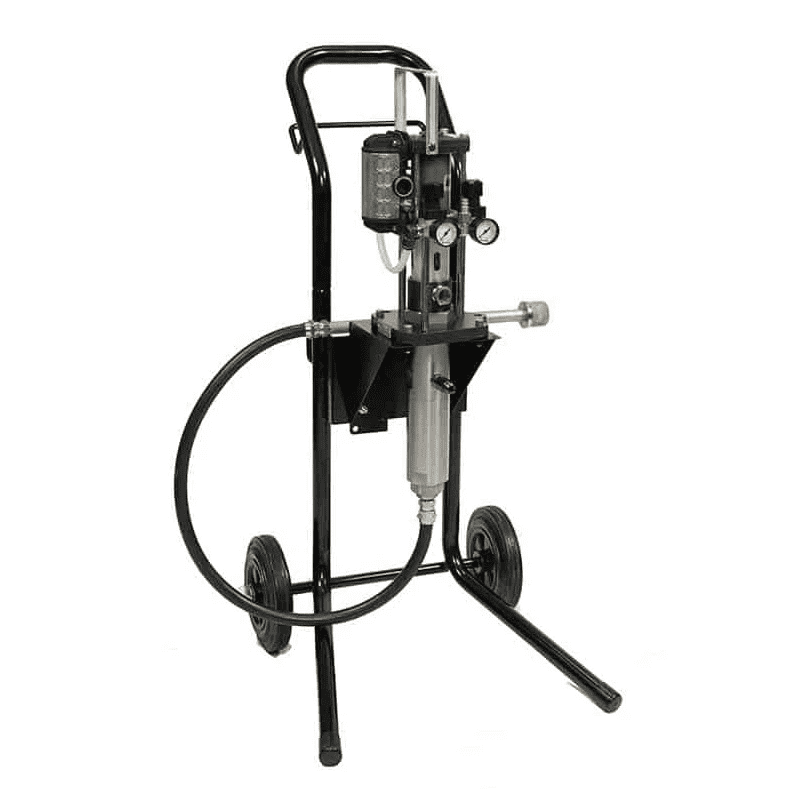

Binks MXL 1231 PTFE/UHMWPE – AirCombi stainless steel pump package on trolley
The Binks MXL 1231 PTFE/UHMWPE pump package is a high-quality, mobile high-pressure system for professional painting and coating applications. It combines proven MX Lite pump technology with a durable PTFE/UHMWPE seal unit to ensure maximum chemical resistance and operational reliability. With a gear ratio of 23:1, the pump delivers a stable flow rate for AirCombi and airless systems – ideal for medium to higher viscosities.
Highlights & advantages
- Corrosion- and chemical-resistant materials – all material-carrying components made of stainless steel with PTFE/UHMWPE seals.
- Virtually pulsation-free operation thanks to the Binks air valve system for consistent pressure.
- Completely mounted on a trolley – ready for immediate use with pre-assembled pressure regulator, HD filter and suction hose.
- Long service life thanks to low-wear piston coating and optimised sealing units.
- Easy maintenance with self-adjusting packings and maintenance-friendly design.
- 5-year pump warranty (excluding wear parts).
Areas of application
Ideal for water- and solvent-based paints, primers, sealants, PU and epoxy resin coatings, as well as industrial painting processes in wood, metal, plastic and mechanical engineering applications.
Technical data
| Transmission ratio | 23:1 |
|---|---|
| Delivery volume / double stroke | approx. 32 cm³ |
| Flow rate (nominal/maximum) | 2.0 l/min · up to 4.5 l/min |
| Max. operating pressure | ≈ 184 bar (≈ 2670 psi) |
| Max. air inlet pressure | 8.0 bar (116 psi) |
| Cylinder diameter | 85 mm |
| Piston stroke | 75 mm |
| Air consumption @ 20 double strokes | ≈ 150 l/min |
| Parts in contact with material | Stainless steel, PTFE, UHMWPE |
Scope of delivery & design
- Complete pump package on chassis with AirCombi pressure regulator and HD filter
- Includes flexible suction hose with filter
- Optional: material pressure hose, gun holder, top container or wall bracket
All units are factory tested, pre-assembled and delivered ready for operation.
Compatible accessories (selection)
- Binks Trophy AA 4400 AirCombi gun (HVLP/LVMP with reversible nozzles and inline filter)
- Binks A75 airless hand spray gun (max. 571 bar)
- Stainless steel high-pressure filter, suction pipe systems, material pressure hoses and spray lances
FAQ
Is the MXL 1231 package suitable for water-based paints?
What is a realistic delivery rate?
What variants are available?
Request a quote now – we will customise your Binks MXL 1231 system for your specific material, pressure and delivery rate.
- Product number: 2180045
- Manufacturer: Binks
- EAN: 5021845103027
- Weight: 30 kg
Technical details
| Eigenschaft | Wert |
|---|---|
| Übersetzungsverhältnis | 31:1 |
| Eingangsdruck max. | 8.0 bar (116 psi) |
| Durchflussrate nominal | 4.3 l/min |
| Durchflussrate max. | 12 l/min |
| Fördervolumen/Doppelhub | 72 cm³ |
| Betriebsdruck max. | 248 bar (557 psi) |
| Zylinder Durchmesser | 140 mm |
| Kolbenhub | 75 mm |
| Luftverbrauch @ 20 Doppelhüben | 498 l/min |
