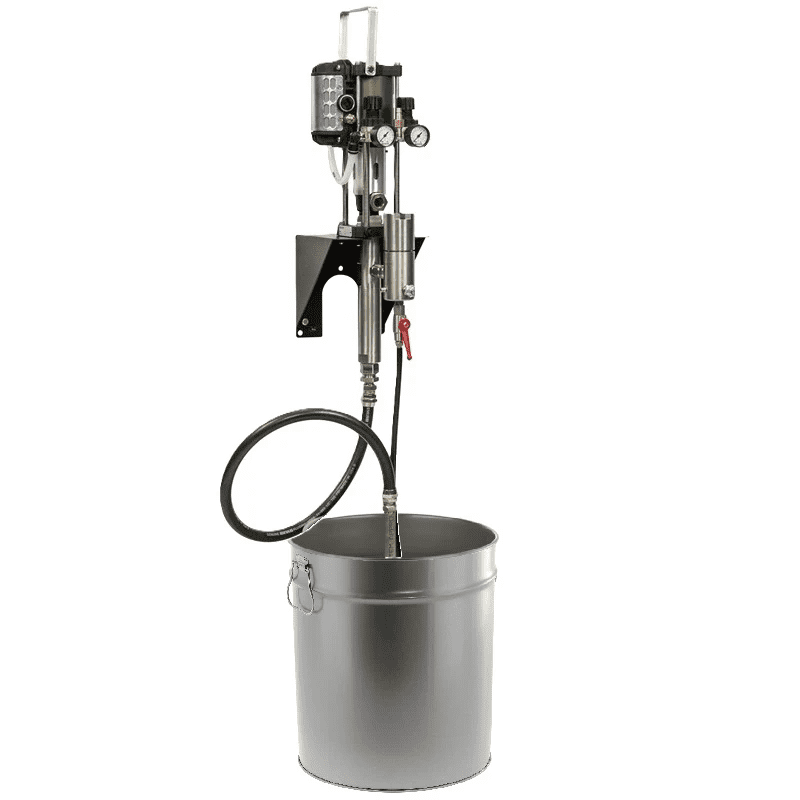

Binks MX1205 BARE PUMP U-CUP/UHMW Airless and AirCombi Pump Packages
€2,948.82
€2,478.00*
Price excl. VAT
Ready to ship in 3–6 working days
Question about this product?
We are here for you. Mon-Fri, 9am - 4pm
Scope of delivery
Binks MXL 1205 – U-Cups / UHMWPE High Pressure Pump
The Binks MXL 1205 U-Cups / UHMWPE pump is a compact, robust high-pressure piston pump from the MX Lite series, equipped with high-quality U-Cups and a UHMWPE sealing unit. It is ideal for compact installations and for integration into modular systems where maximum material compatibility, chemical resistance and reliability are required.
Highlights & advantages
- High-quality U-cup seals and UHMWPE components for long service life and minimal leakage.
- Corrosion-resistant construction with stainless steel materials in the parts that come into contact with the material.
- Compatible with both water and solvent materials thanks to suitable seal selection.
- Low pulsation behaviour and uniform material flow via optimised air valve technology.
- Easy maintenance thanks to modular design and easy access to seal units.
- Easy to install – ideal for integration into existing pump systems or system modules.
Areas of application
Particularly suitable for dispersion paints, water-based paint systems, low-viscosity to medium-viscosity paints, primers, sealants and chemically aggressive coating materials in industrial environments.
Technical data
| Transmission ratio | 12:1 |
|---|---|
| Delivery volume / double stroke | approx. 15 cm³ |
| Flow rate (nominal/maximum) | 0.8 l/min · up to approx. 2.5 l/min |
| Max. operating pressure | ≈ 80 bar (≈ 1160 psi) |
| Max. air inlet pressure | 8.0 bar (116 psi) |
| Cylinder diameter | 50 mm |
| Piston stroke | 60 mm |
| Air consumption @ 20 double strokes | ≈ 100 l/min |
| Components in contact with material | Stainless steel, U-cups, UHMWPE |
Variants & options
- Standard version with PTFE U-cups
- UHMWPE seal version for aggressive media
- Versions with various inlet and outlet connections (e.g. NPT, BSP)
- Optional surface coatings or special materials on request
All pump equipment is factory tested and delivered ready for operation.
Compatible accessories (selection)
- Stainless steel high-pressure filter
- Material pressure and suction hoses
- AirCombi or Airless pressure regulators
- Guns, spray lances and accessory packages
FAQ
Is the MXL 1205 pump suitable for water-based paints?
What delivery rate can be achieved?
What variants are available?
Request a quote now – we will configure your Binks MXL 1205 pump to suit your material, pressure and system.
- Product number: 2180048
- Manufacturer: Binks
- EAN: 5021845102433
- Weight: 30.009 kg
Technical details
| Feature | Value |
|---|---|
| Gear ratio | 4.8:1 |
| Max. air inlet pressure | 8 bar | 116 psi |
| Max. fluid pressure | 39 bar | 557 psi |
| Displacement per stroke | 72 cc | 2.4 oz |
| Flow rate at 60 strokes/min | 4.3 l/min | 1.2 US gal/min |
| Max. recommended stroke rate (continuous) | 20/min |
| Air consumption @ 20 strokes/min, 8 bar | 62.5 l/min | 2.2 SCFM |
| Air inlet | Ø12 mm hose |
| Fluid inlet | 3/4" NPS (m) |
| Fluid outlet | 3/8" BSP (m) / NPS (m) |
| Sound pressure level | 88 dB |
| Weight | 13 kg | 28.4 lbs |
| Wetted parts (materials) | Stainless steel, tungsten carbide, PTFE, polyethylene, leather, ceramic |
