Binks 42-1 Pump MX 30/42 PTFE/UHMW Wall, 1 REG Airless and AirCombi Pump Wall Mount
€7,080.50*
Scope of delivery
Binks MX30/42 – Airless/AirCombi piston pump (42:1 ratio, 190 cc/cycle) – Wall bracket

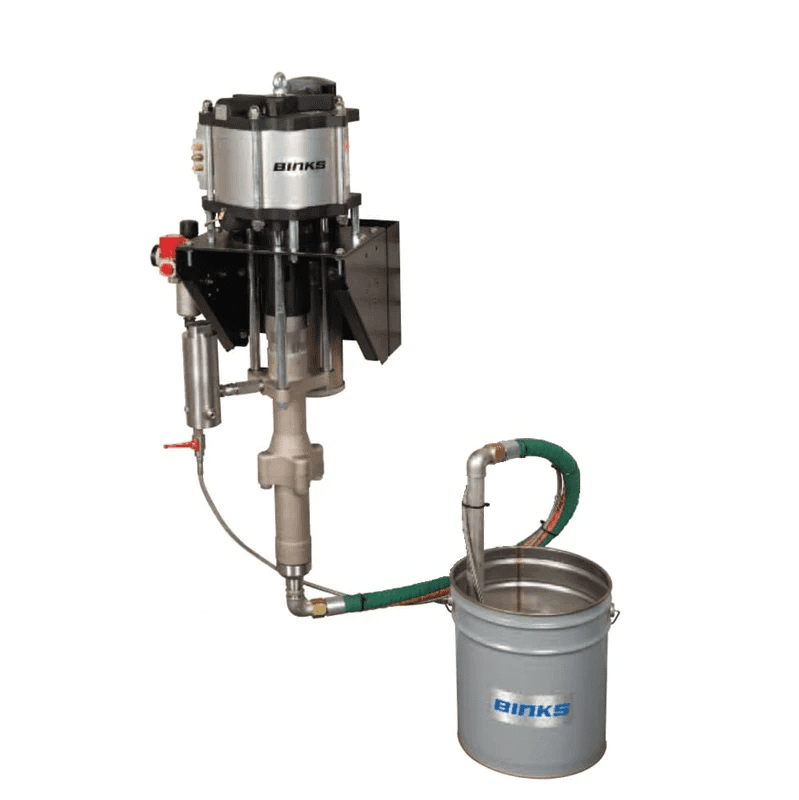

The Binks MX30/42 is a robust, industry-proven piston pump for demanding coating applications. With a 42:1 ratio and 190 cc/cycle, it delivers up to 11.4 l/min (at 60 cycles/min) at a maximum material pressure of 294 bar. The patented magnetic switch enables a smooth, virtually pulsation-free stroke change; ceramic-coated pistons significantly increase the service life of the packings. This outfit is the wall-mounted version and includes air control (airless/AA), stainless steel high-pressure filter and flexible suction.
Highlights & advantages
- Performance data: 42:1, 190 cc/cycle, up to 11.4 l/min (60 cycles/min), max. 294 bar.
- Magnetic switch: fast, low-pulsation stroke change for an even spray pattern.
- Ceramic-coated piston: high wear resistance, lower friction, longer service life.
- Material compatibility: material part in stainless steel (for water-based media) or normal steel (for solvent-based/high-solids media).
- Quiet operation: noise level approx. 82.9 dB(A) under typical test conditions.
Areas of application
Corrosion protection, large steel structures, oil & gas, shipbuilding, container manufacturing, commercial vehicle/chassis coating, and much more. Suitable for solvent- and water-based coatings, zinc-rich primers, high-viscosity 2K materials, enamel and polyurethane paints.
Technical data
| Transmission ratio | 42:1 |
|---|---|
| Volume/cycle | 190 cm³ |
| Max. flow rate | 11.4 l/min (at 60 cycles/min) |
| Max. material pressure | 294 bar |
| Piston stroke | 127 mm |
| Noise level* | ≈ 82.9 dB(A) |
| Scope of delivery Outfit | Pump, wall bracket, air control (Airless/AirCombi), stainless steel high-pressure filter, flexible suction hose with filter screen, pressure relief valve |
| Air/material connections | Air inlet: 1/2" BSP (F); material outlet on high-pressure filter: 1/4" NPS (M) |
*Measuring conditions according to MX series data sheet.
Versions & part numbers
Wall version (Airless & AirCombi)
- MX19042PU-SAH-WAL – stainless steel, Airless
- MX19042PU-CAH-WAL – Normal steel, Airless
- MX19042PU-SAH-WAC – stainless steel, AirCombi
- MX19042PU-CAH-WAC – Normal steel, AirCombi
Compatible accessories (selection)
- Binks Airless A75 hand spray gun (up to 517 bar), AA4400M AirCombi gun
- Stainless steel high-pressure filter (mesh 30–200), high-pressure hoses, micro swivel joints
FAQ
Water- or solvent-based media?
What connections does the pump have?
Request a quote now – we will configure your MX30/42 outfit to suit your material, pressure and delivery rate.
Keywords
Binks MX30/42, airless pump 42:1, piston pump 294 bar, ceramic piston, magnetic switch, stainless steel, normal steel, wall outfit, industrial coating.
- Product number: 2180028
- Manufacturer: Binks
- EAN: 5021845100729
- Weight: 77 kg
