3nh YT8200 Triangular Gloss Meter with Touchscreen – Coating Thickness Measurement: Split Design

The YT8200, YT8300 and YT8500 three-angle glossmeters with touchscreens are professional split-type dual-use instruments designed for fast and precise non-destructive coating thickness measurement on metallic substrates. Thanks to their external probe, these instruments are particularly suitable for hard-to-reach measurement points and flexible industrial applications.

The instruments combine magnetic induction and eddy current measurement in a compact testing system, enabling reliable measurements on both magnetic and non-magnetic metals. This makes the instruments ideal for measuring paints, powder coatings, electroplated layers, galvanised coatings, chrome layers, as well as protective and insulating coatings.

The models differ mainly in their maximum measurement range:

YT8200: 0–2000 µm
YT8300: 0–3000 µm
YT8500: 0–5000 µm

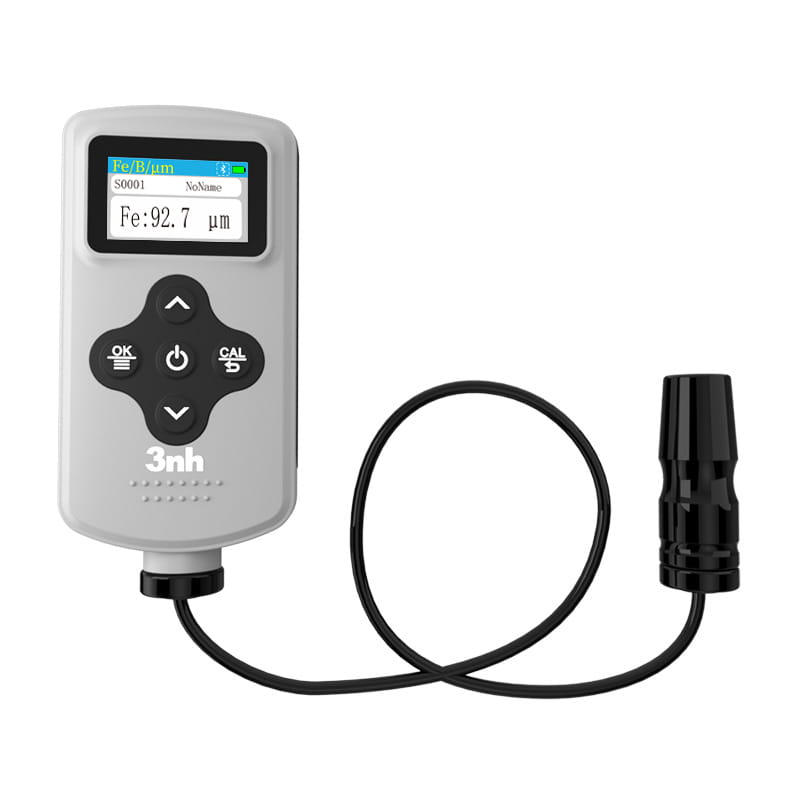

Split-type dual-use measuring system

The external probe enables convenient and precise measurements even in hard-to-reach places, on small components or complex geometries. Thanks to automatic substrate detection, the appropriate measurement method is selected automatically:

Magnetic induction for ferromagnetic substrates such as steel
Eddy current method for non-magnetic metals such as aluminium or stainless steel

The non-destructive measurement does not damage either the coating or the workpiece and is ideal for quality control and production measurements.

Precise coating thickness measurement

The YT8 series instruments enable precise measurements of a wide variety of coatings:

Paints
Powder coatings
Galvanised coatings
Electroplated coatings
Chrome and copper layers
Protective and insulating coatings
Ceramic and porcelain coatings

Various calibration methods, such as zero-point, single-point and multi-point calibration, ensure high repeatability and stable measurement results, even in demanding applications.

Modern features and functions

The YT8 series offers numerous functions for professional industrial measurement tasks:

Wide measuring range up to 5000 µm
External, highly sensitive precision probe
Automatic material recognition
Non-destructive measurement
IPS colour display
Multiple measurement modes
Continuous measurement
Statistical and quality control functions
Internal data storage
USB and, in some cases, Bluetooth interface
Compact and robust design

The devices support rapid serial measurements and are suitable for both mobile applications and industrial quality control.

Typical applications

The YT8 series split-type goniometer glossmeters with touchscreens are suitable for:

Automotive industry
Mechanical engineering
Metalworking
Corrosion protection
Electroplating plants
Surface technology
Paint and powder coating systems
Incoming goods inspection
Industrial quality control
Production monitoring

Thanks to the flexible external probe, the devices are particularly suitable for measurements on complex workpieces, pipes, small components and hard-to-reach surfaces.
