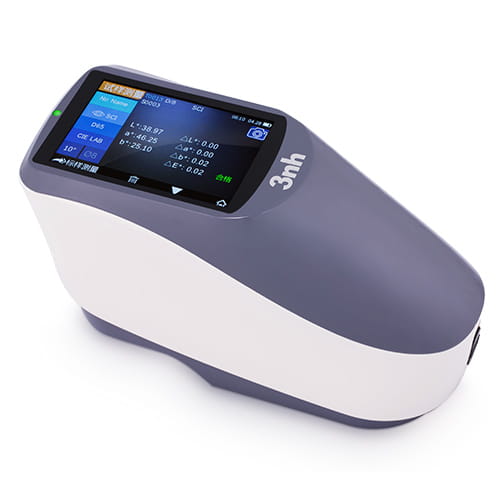

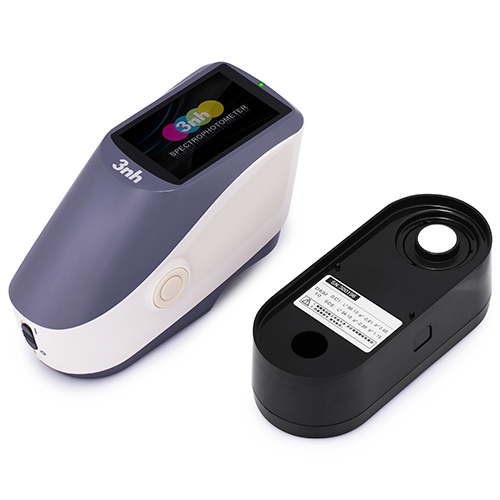

3nh YS3020 Portable Spectrophotometer – Measurement geometry & functions: D/8 — with Bluetooth

The YS3000 series of portable spectrophotometers combine precise spectral colour measurement with state-of-the-art optical technology and an ergonomic handheld design. The YS3060, YS3020 and YS3010 models have been developed for professional colour control, colour difference analysis and quality management in industry, laboratories and production.

Thanks to D/8 geometry, SCI/SCE technology, planar grating spectroscopy and high-performance CMOS dual sensors, the instruments deliver stable and reproducible measurement results on a wide variety of materials and surfaces. Depending on the model, UV support, Bluetooth communication and various aperture sizes are available for flexible measurement tasks.

Applications

The YS3000 series is suitable for:

The plastics and electronics industries
Paints, varnishes and coatings
Textile and clothing industry
Printing and packaging
Ceramics industry
Automotive industry
Cosmetics and consumer goods
Laboratory and research applications
Colour matching and quality control

Models with a UV light source also enable precise measurements of fluorescent materials, optical brighteners and special effect surfaces. Thanks to various aperture sizes, both large areas and small or textured areas can be analysed with precision.

Model overview

YS3060 Portable Spectrophotometer
D/8 geometry with SCI/SCE technology
Integrated UV light source
Bluetooth 4.0 + USB communication
Dual aperture:
Ø8 mm / Ø10 mm and Ø4 mm / Ø5 mm
Spectral range: 400–700 nm
Repeatability: ΔE* ≤ 0.03
Inter-instrument deviation: ΔE* ≤ 0.15
Professional premium instrument for high-precision industrial colour control and fluorescent materials

YS3020 Portable Spectrophotometer
D/8 geometry with SCI/SCE technology
Bluetooth 4.0 + USB communication
Customisable apertures:
Ø8 mm / Ø4 mm / 1×3 mm
Spectral range: 400–700 nm
Repeatability: ΔE* ≤ 0.04
Inter-instrument deviation: ΔE* ≤ 0.20
Flexible spectrophotometer for small, structured or complex measurement areas

YS3010 Portable Spectrophotometer
D/8 geometry with SCI/SCE technology
USB communication
Single aperture: Ø8 mm / Ø10 mm
Spectral range: 400–700 nm
Repeatability: ΔE* ≤ 0.06
Inter-instrument deviation: ΔE* ≤ 0.40
Compact and cost-effective solution for professional colour difference control

Optical technology and sensor technology

The YS3000 series utilises modern planar grating spectroscopy combined with high-performance 256-element dual-array CMOS sensors. This ensures stable and reproducible measurement results with high accuracy and long-term stability.

Technical features:

D/8 diffuse illumination with 8° viewing angle
SCI/SCE synchronous measurement
Full-spectrum LED light source
Optional additional UV light source
Concave grating spectroscopy
256-element dual-array CMOS sensor
Integrating sphere Ø48 mm
Measurement range (reflectance): 0–200%
Measurement time approx. 2.6 seconds
Capacitive 3.5" TFT colour display
Camera positioning system
ETC real-time calibration

Multiple apertures and flexible measurement

The different aperture variants allow flexible adaptation to various sample sizes and surface structures. This enables precise analysis of both large areas and small or textured measurement areas.

The models with small apertures are particularly suitable for:

narrow printed elements
textiles
small plastic parts
textured surfaces
edge areas
Laboratory samples with a limited measurement area

Colorimetric functions

The instruments support comprehensive colour and quality analyses:

CIE LAB
XYZ
Yxy
LCh
CIE LUV
Hunter LAB
CIE RGB

Supported colour difference formulas:

ΔE*ab
ΔE*uv
ΔE94
ΔEcmc
ΔE00
ΔE(Hunter)

Additional analysis functions:

Whiteness Index (WI)
Yellowness Index (YI)
Tint Index (TI)
Metamerism Index (MI)
Colour Strength
Opacity
Colour Fastness
Staining Fastness
8° Gloss

Software and Data Management

The YS3000 series supports professional colour management and quality control via PC software, as well as Bluetooth and USB communication.

Functions:

Colour difference analysis
PASS/FAIL evaluation
Spectral diagrams
Colour matching support
Measurement reports
Quality reports
Colour comparison and archiving

Data storage:

Up to 2,000 standard data points
Up to 20,000 measurement data points

Special features

The devices feature an ergonomic handheld design with a capacitive touchscreen and integrated camera positioning. Automatic real-time calibration ensures stable measurement results and reduces operator error.

The long-lasting full-spectrum LED light sources can perform more than 3 million measurements or last for approximately 5 years. The lithium-ion batteries allow for up to 5,000 measurements within 8 hours.

The YS3060 and YS3020 models also support Bluetooth communication for modern mobile colour management and wireless data transfer.
