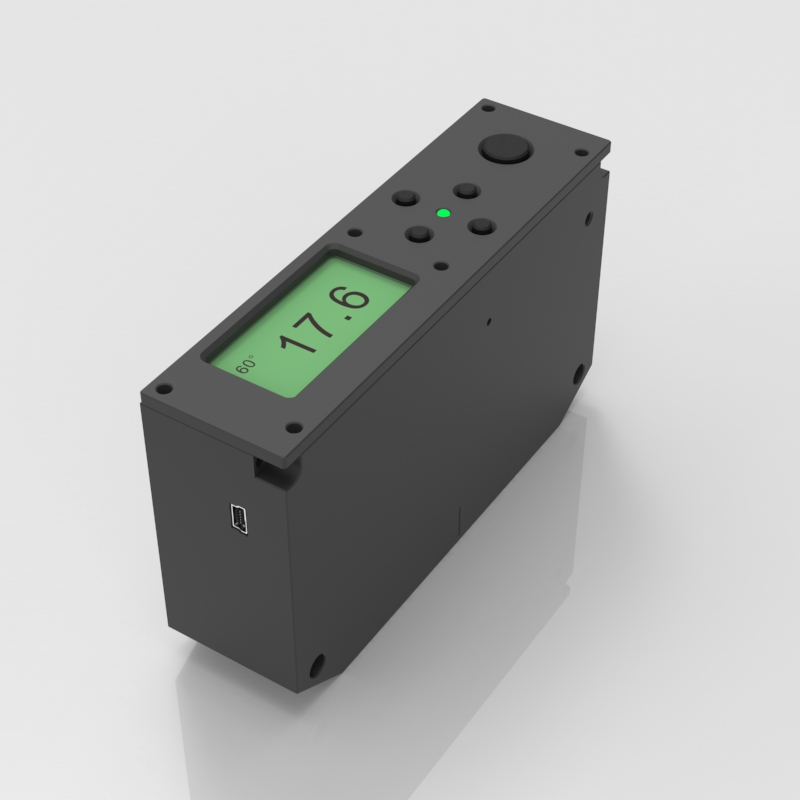

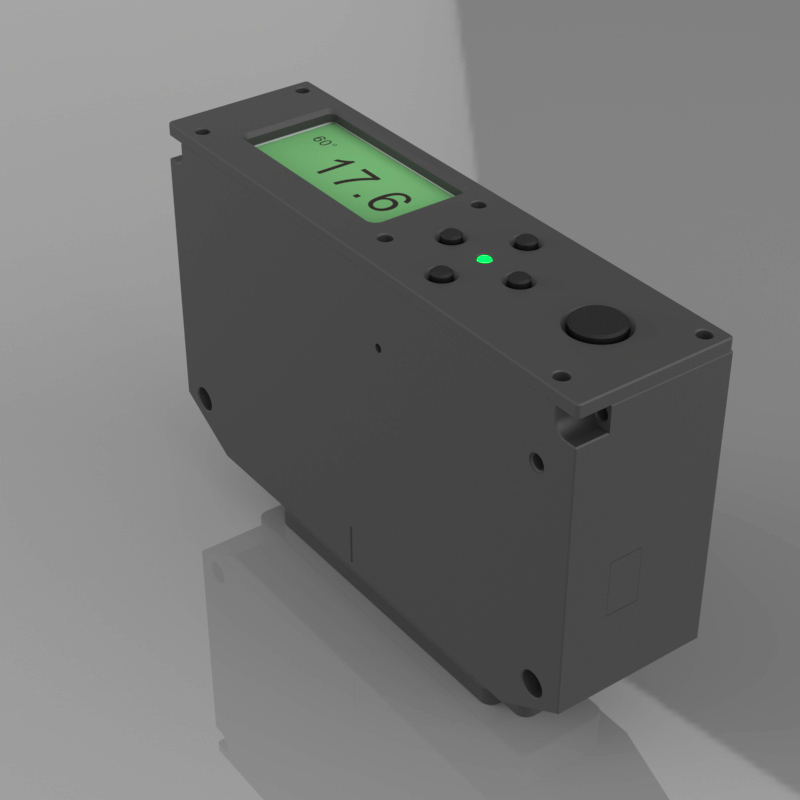

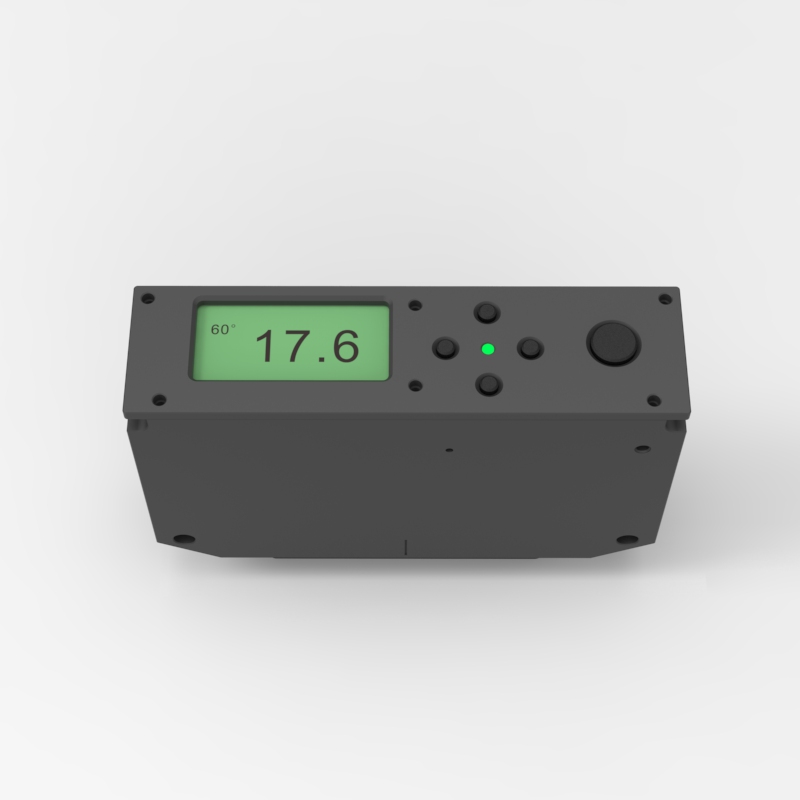

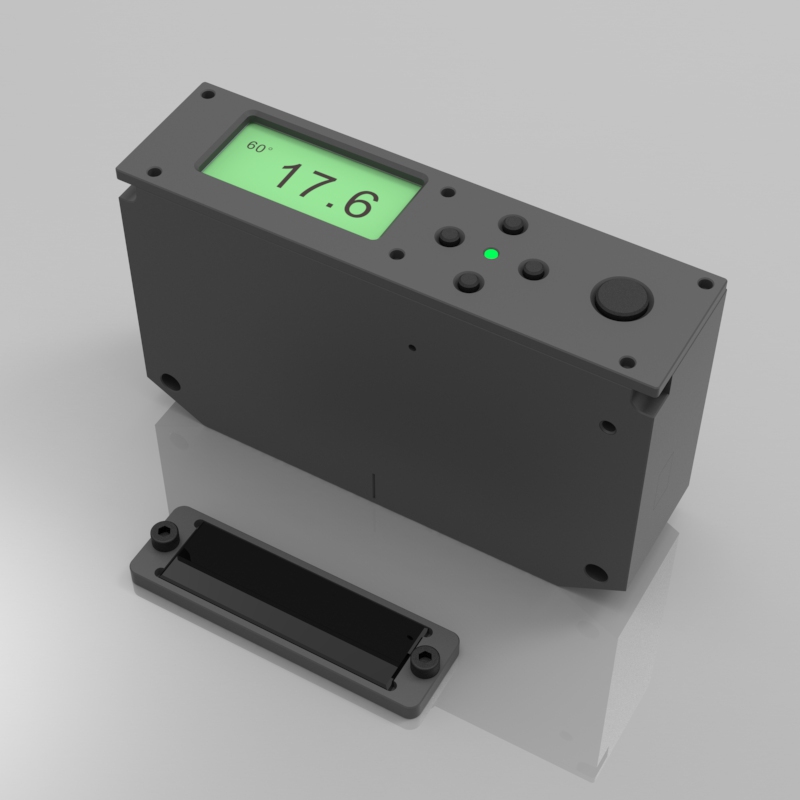

3nh YG60L Online Triangular Gloss Meter

The YG60L online gloss meter has been specially developed for non-contact gloss measurement in automated production lines. Thanks to its innovative non-contact technology, the device is ideal for sensitive, liquid or fragile materials and enables precise, real-time quality control directly within the production process.

The system combines fast measurement speed, high repeatability and professional quality management functions with an open interface architecture for integration into industrial automation systems.

Product overview

YG60L Online Non-contact Gloss Meter
60° online gloss measurement
Non-contact measurement
Basic Measuring Mode
GQC6 Quality Management Software
For automated production lines and in-line quality control

Non-contact measurement technology

The YG60L utilises innovative non-contact measurement technology. Measurements are taken at a distance of:

10 mm ±0.1 mm

This makes the device ideal for:

Liquids
Pastes and sauces
Powders
delicate surfaces
Fragile materials
Freshly coated products
automated production processes

Non-contact measurement prevents damage to the surface whilst delivering stable and highly accurate measurement results.

Inline and real-time quality control

The device has been specially developed for use in automated production lines. Thanks to the compact sensor design, the measuring head can be flexibly integrated into existing systems.

Typical applications:

Paints and coatings
Printing industry
Paper industry
Plastics industry
Electronic surfaces
Furniture industry
Ceramics
Electroplating
Metal surfaces
Marble and natural stone

The open data interface enables:

System integration
Automation integration
Production monitoring
Online quality control
Data exchange with external systems

Measurement performance and precision

The YG60L operates with a standardised:

60° measurement angle

Supported standards:

ISO 2813
ASTM D523
GB/T 9754

Technical specifications:

Measuring range 0–1000 GU
Resolution 0.1 GU
Measurement speed up to 0.2 seconds
Measurement spot 9 × 15 mm

Repeatability:

0–100 GU: ±0.5 GU
100–1000 GU: ±0.5% of the measured value

The high measurement stability ensures reliable results even during continuous production.

Measurement modes and quality management

The device supports several intelligent measurement modes:

Basic Mode
Statistical Mode
Continuous Mode
Quality Control Mode

QC mode enables:

Limit value monitoring
PASS/FAIL evaluation
Incoming goods inspection
Automatic quality assessment

Continuous Mode is ideal for:

continuous production monitoring
Inline measurements
automated process control

Software and system integration

The YG60L is supplied with the professional GQC6 quality management software.

Software functions:

Measurement data management
Test reports
Data analysis
Quality documentation
PC connection
Production analysis
Report generation

The device also supports:

USB communication
Bluetooth 5.0
Custom software adaptations
custom interface integration

The open communication interfaces enable flexible integration into existing industrial and automation systems.

Compact industrial design

The compact sensor design allows for easy installation in production environments.

Technical specifications:

Dimensions 140 × 83 × 38 mm
Weight approx. 500 g
USB power supply
2.3-inch display
Multilingual user interface

The robust design is suitable for both laboratory environments and continuous industrial operation.
