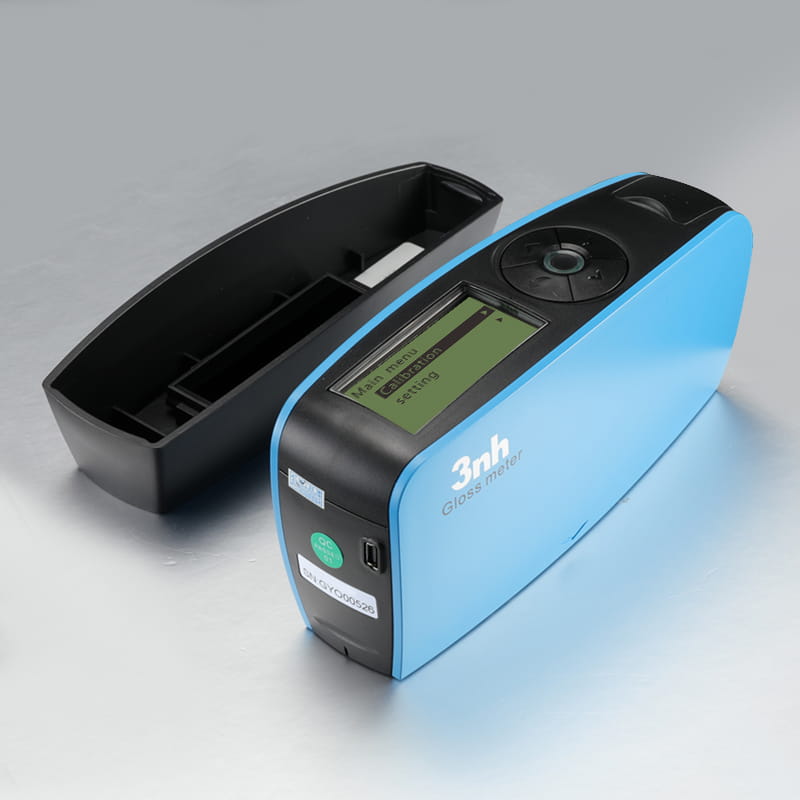

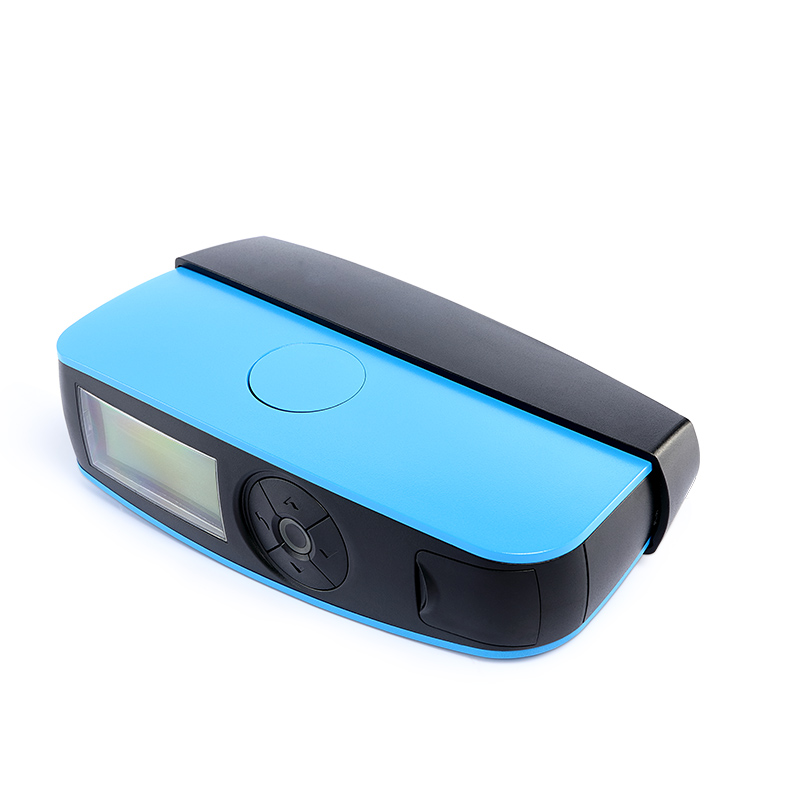

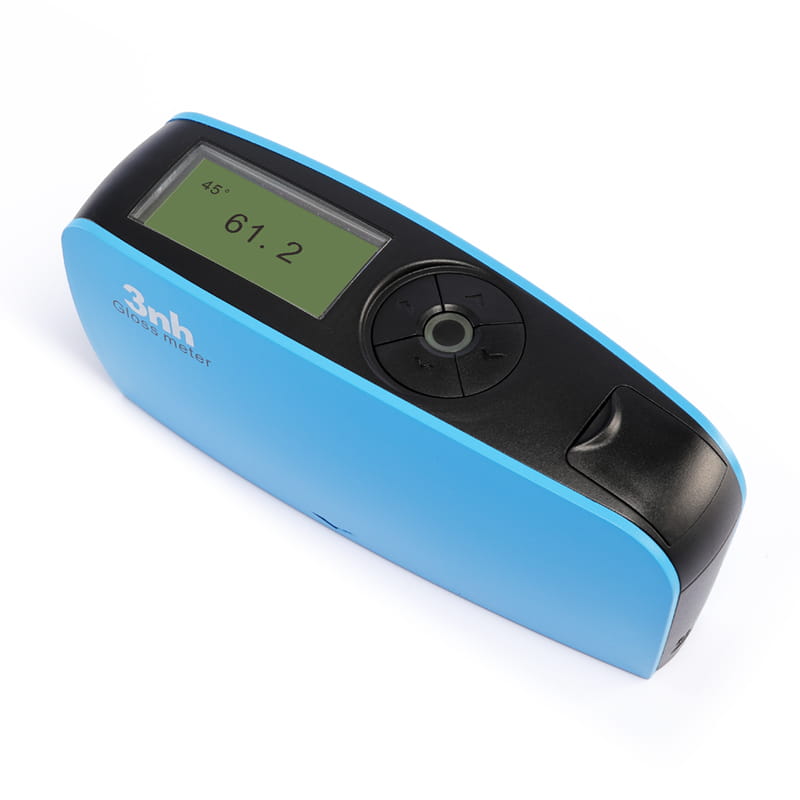

3nh YG45 Triangular Gloss Meter – Gloss measurement: 45°
€422.45*
Scope of delivery
The YG series gloss meters have been specially developed for precise gloss measurements in the printing, paper, film, plastics and coatings industries. The instruments combine high measurement accuracy, a compact design and professional quality control functions for use in laboratories, production and incoming goods inspection.
Depending on the model, single, dual or multi-angle measurements, micro-aperture technology, statistical analysis functions and the professional GQC6 quality management software are available. The instruments comply with international standards such as JJG696 and are suitable for precise industrial surface analysis.
Model overview
YG45 High Precision Gloss Meter
45° gloss measurement
Ideal for the film, paper and plastics industries
Four measurement modes
Button operation
GQC6 Quality Management Software
Professional specialist instrument for surfaces with medium to high gloss levels
YG47 Dual-Angle Gloss Meter
45° and 75° dual-angle measurement
For the film, printing and paper industries
Four measurement modes
Simultaneous multi-angle measurement
GQC6 quality management software
Ideal for precise print and film analysis
YG75 High Precision Gloss Meter
75° gloss measurement
Optimised for the printing industry and matt surfaces
Four measurement modes
GQC6 Quality Control Software
Professional gloss meter for printing and paper applications
YG60M Micro-aperture Gloss Meter
60° gloss measurement
Micro-aperture technology
For small or hard-to-reach measurement surfaces
Precise detailed measurements
YG268 Tri-angle Gloss Meter
20° / 60° / 85° multi-angle measurement
Four measurement modes
Button operation
GQC6 quality management software
Universal professional gloss meter for a wide range of gloss levels
YG60 Gloss Meter
60° standard gloss measurement
Four measurement modes
Button operation
GQC6 quality management software
Compact solution for standard industrial measurements
YG60S Economic Gloss Meter
60° standard gloss measurement
Basic measurement mode
Without software
Particularly cost-effective entry-level solution for simple gloss control
Measurement angles and applications
The YG series offers different measurement angles for specific industrial applications:
20°
For high-gloss surfaces
45°
Specially designed for the film, paper and printing industries
60°
Universal standard angle for medium gloss levels
75°
For matt surfaces and printing applications
85
For low-gloss and matt surfaces
The YG45, YG47 and YG75 models in particular have been specially designed for:
Printing industry
Paper industry
Film production
Packaging industry
Plastics industry
Ceramics industry
Measurement modes and quality control
The professional YG models support four intelligent measurement modes:
Basic Measurement
Statistical Measurement
Continuous Measurement
Quality Control Measurement
The QC mode enables:
PASS/FAIL evaluation
Limit monitoring
Incoming goods inspection
Batch testing
Quality analysis
Continuous measurement mode is ideal for:
Production monitoring
Surface homogeneity
Process control
In-line quality inspection
Dual-angle technology YG47
The YG47 model features two measurement angles:
45°
75°
Both angles can be measured simultaneously.
This makes the device particularly suitable for:
Print quality control
Paper surfaces
Film materials
Packaging printing
Plastic surfaces
Ceramic surfaces
Simultaneous multi-angle measurement enables a particularly precise assessment of complex surface structures and varying degrees of gloss.
Micro-aperture technology YG60M
The YG60M was developed for precise measurements on small surfaces.
Micro-aperture technology is ideal for:
small components
narrow measurement ranges
textured surfaces
precise detailed measurements
hard-to-reach areas
Precision and measurement performance
The devices meet the requirements of:
JJG696
international industrial gloss measurement standards
Typical performance data:
Measurement speed approx. 0.5 seconds
Resolution up to 0.1 GU
Repeatability up to ±0.2 GU
Measurement ranges up to 800 GU
The optimised optical design ensures:
high reproducibility
stable measurement results
precise quality control
low instrument deviation
Software and data management
The YG45, YG47, YG75, YG268 and YG60 models support the professional GQC6 quality management software.
Software functions:
Measurement data management
QC reports
Data export
PC connection
Online measurement
Statistical analysis
Documentation
Reporting
The YG60S model is supplied without software and is suitable for simple standalone measurements.
Ergonomics and portability
The YG series instruments feature an ergonomic handheld design and are suitable for both laboratory applications and mobile use in production.
Technical features:
Compact design
Weight approx. 300 g
AA battery or rechargeable battery
Over 10,000 measurements per charge
USB interface
Multilingual user interface
The ergonomic design ensures comfortable use even during extended measurement sessions.
- Product number: 2200267
- Manufacturer: 3nh
