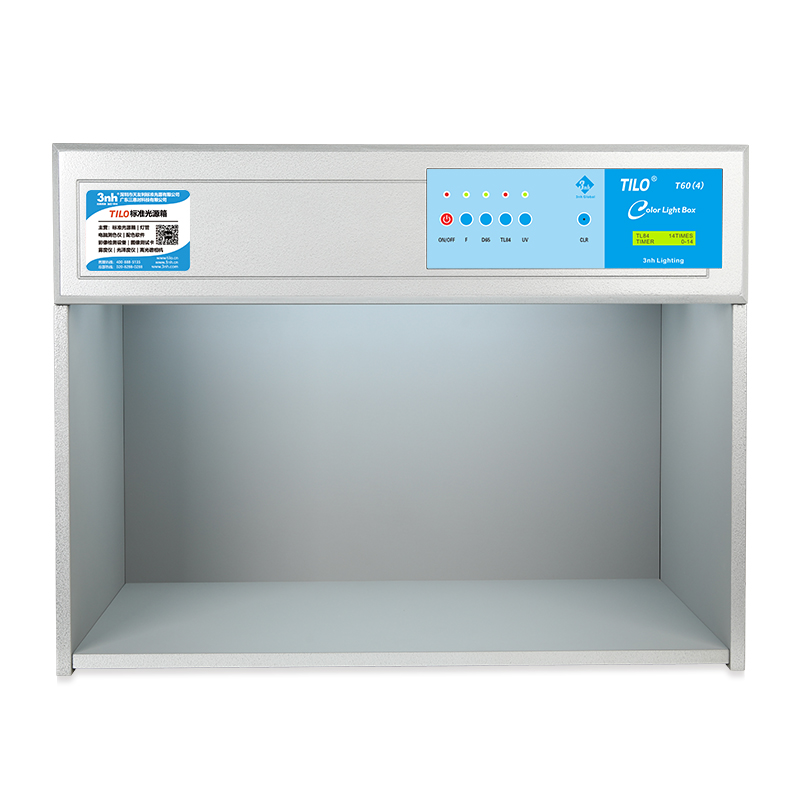

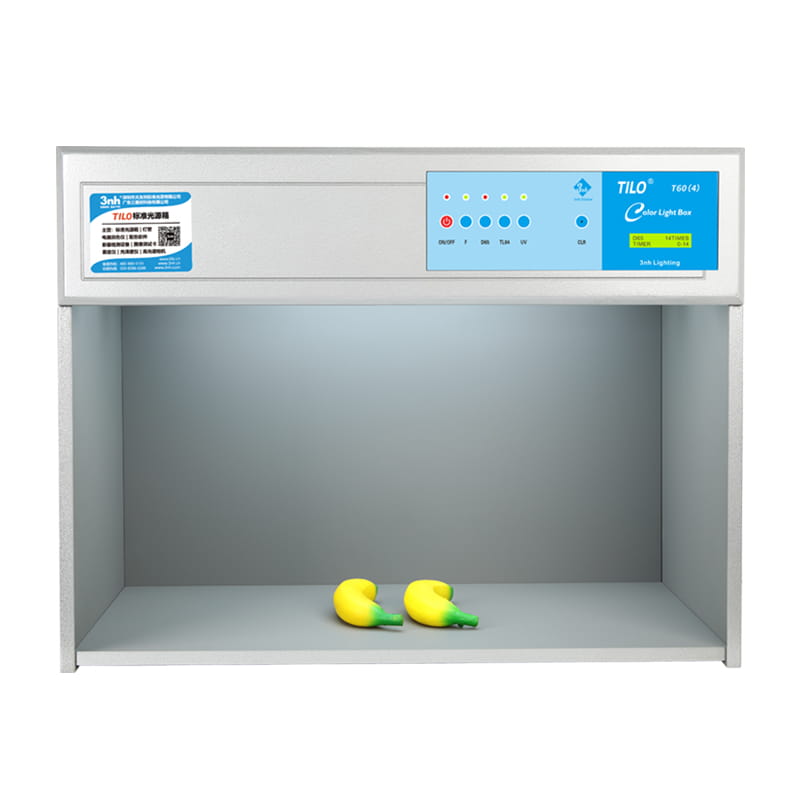

3nh LED Colour Light Box – Model T60(4) – Light source: D65, TL84, F, UV
€821.10*
Scope of delivery
The T60(4) colour inspection booth with 4 light sources enables precise visual colour assessment under standardised lighting conditions. It is ideally suited for applications in the printing, textile, plastics, automotive and packaging industries.
System & Application
The colour inspection booth simulates various standardised light types for the reliable assessment of colour deviations and metamerism effects. The uniform illumination enables reproducible results in visual quality control.

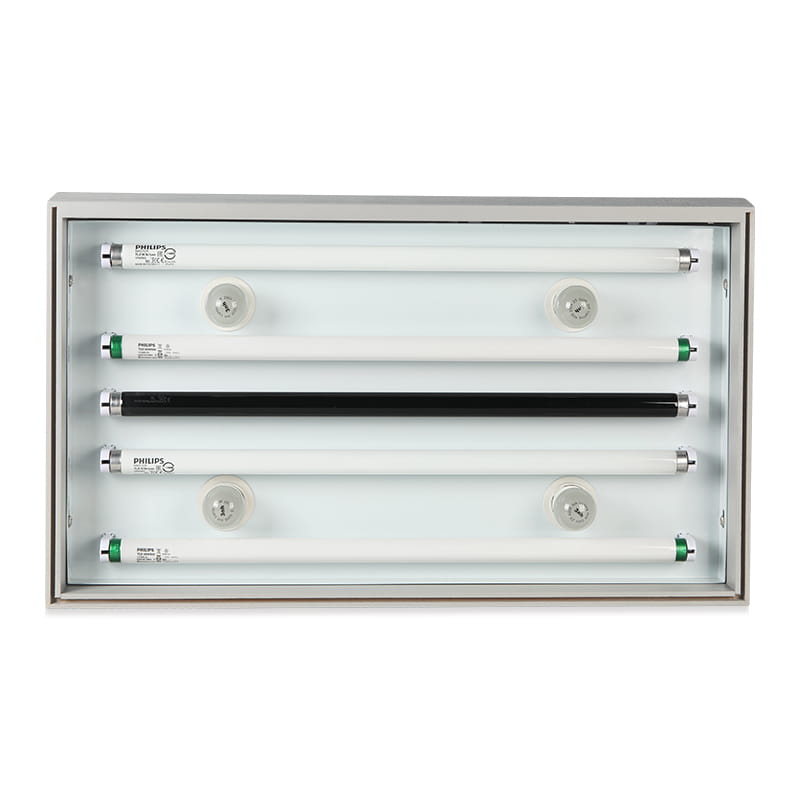

Light sources
D65 – Standard daylight
TL84 – Retail lighting (Europe/Asia)
F – Warm light / Sunset light
UV – UV light for testing fluorescent materials
Technical specifications
Model: T60(4)
Number of light sources: 4
Dimensions (W × D × H): 710 × 405 × 570 mm
Internal dimensions: 680 × 385 × 355 mm
Voltage: 220 V
Weight: 28 kg
Special features
Precise colour assessment under standardised conditions
Detection of metamerism using multiple light sources
Separate switches for each light type
Automatic switching between light sources
No warm-up time required
Low heat generation and energy-efficient operation
Operating hours counter for lamp monitoring
- Product number: 2200081
- Manufacturer: 3nh
