Manufacturer no.:
24P984

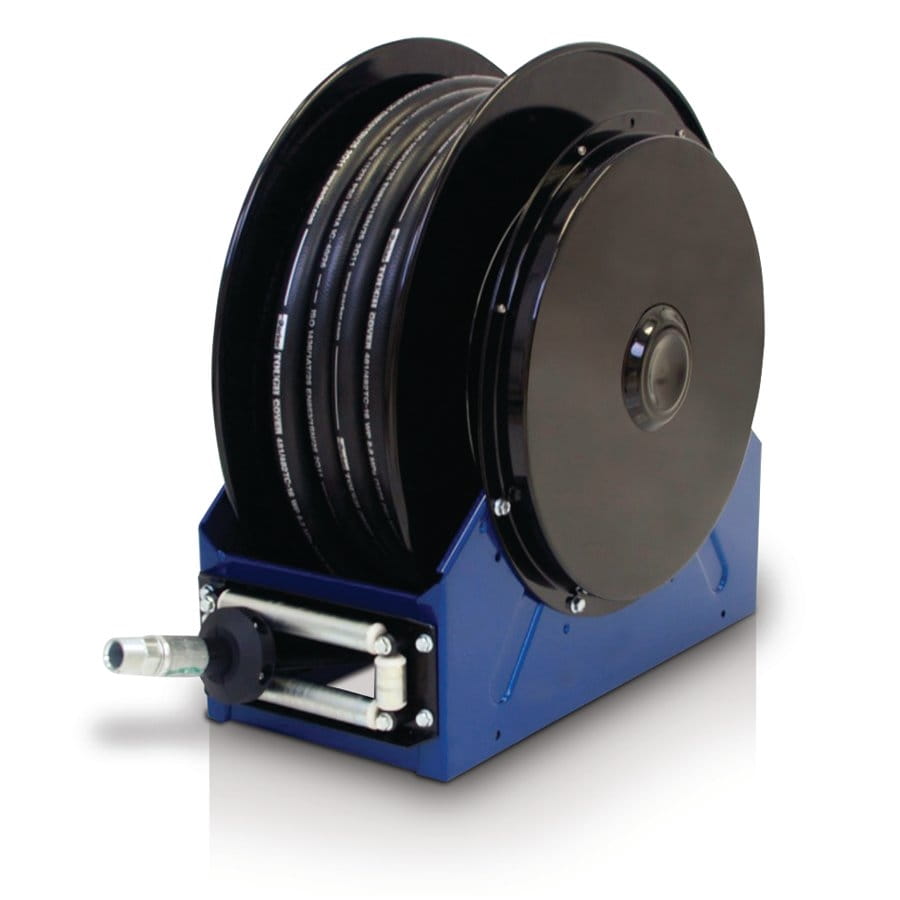

XD40™, antifreeze, 25 mm (1") inlet, 19 mm x 30 m (1/4" x 100') hose, NPT, metallic blue
€4,335.41*
% €4,926.60* (12% saved)Ready for shipping in 5-8 days
Also interesting
Product information
The XD40 and XD50 series hose reels from Graco can withstand a lot and work - whenever they are needed. Choose from several colour options, thread types and hoses. Typical materials include: Petroleum and synthetic based oils, diesel fuel, air, water, antifreeze and waste oil.
Ideal for indoor and outdoor use at heavy-duty vehicle dealerships, fleet maintenance, public workshops, construction vehicle maintenance, agricultural vehicles and emergency vehicles.
- Extensive hose range - standard models are supplied complete with factory-installed hoses on the hose reel, wide range of optional hose reels for different applications
- Full flow swivel - Maximise material flow with minimal pressure drop for faster filling - increasing throughput in your workshop.
- Robust and durable body - Robust welded spool and ribbed frame for added strength and wear resistance
- Meets global requirements - 90° elbow with NPT threads as standard
| Colours: | Blau |
|---|---|
| Item type: | Schlauch |
| Length: | 3000 cm |
More information
- Product number: 1030040
- Manufacturer: Graco
- EAN: 00755652365556
- Weight: 82.553 kg
Technical details
Operating specifications
| UPC product | 755652365556 |
|---|---|
| Division | LED |
| Price Block | 150 |
| Country of origin | US |
| Unit of measurement | EA |
| Height | 85 CM |
| Length | 50 CM |
| Width | 80 CM |
| Volume | . 34 m³ |
| Shipping weight | 82.55 KG |
| HTS code (EU) | 4 0 09420090 |
| HTS code (GB) | 4 0 09420090 |
Technical
| Dry weight (lb) | 125 |
|---|---|
| Hose inside diameter (mm) | 19. 05 |
| Inlet size (in) | 1 |
| Inlet size (mm) | 25. 4 |
| Maximum working pressure (psi) | 300 |
| Outlet Size (in) | 1 |
| Outlet Size (mm) | 25. 4 |
| Overall height (in) | 26. 13 |
| Overall height (mm) | 664 |
| Overall Length (in) | 26. 4 |
| Overall Length (mm) | 671 |
| Overall width (in) | 16. 54 |
| Overall width (mm) | 420 |
| Series | 40 |
| Frame type | Box frame |
| Reel Thread Type | NPT |
| Recommended fluid type | Antifreeze |
| Hose reel type | Reel with hose |
| Model | XD |
| includes hose | Yes |
Further manufacturer information
Produktbroschüre
Produkthandbücher
- 332400L, Handbuch, Schlauchaufroller XD40 und XD50, Montage, Betrieb, Anleitung (Deutsch)
- 332400L, Handbuch, Schlauchaufroller XD40 und XD50, Montage, Betrieb, Anleitung (English)
- 332400L, Handbuch, Schlauchaufroller XD40 und XD50, Montage, Betrieb, Anleitung (Français)
- 332400L, Handbuch, Schlauchaufroller XD40 und XD50, Montage, Betrieb, Anleitung (Español)
- 332400L, Handbuch, Schlauchaufroller XD40 und XD50, Montage, Betrieb, Anleitung (Italiano)
- 332400L, Handbuch, Schlauchaufroller XD40 und XD50, Montage, Betrieb, Anleitung (русский)
Verkaufsliteratur
- 303245ENEU Vehicle Service Equipment Buyer's Guide (English (UK))
- 303245ENEU Vehicle Service Equipment Buyer's Guide (русский)
Zertifizierungen
