Manufacturer no.:
246654

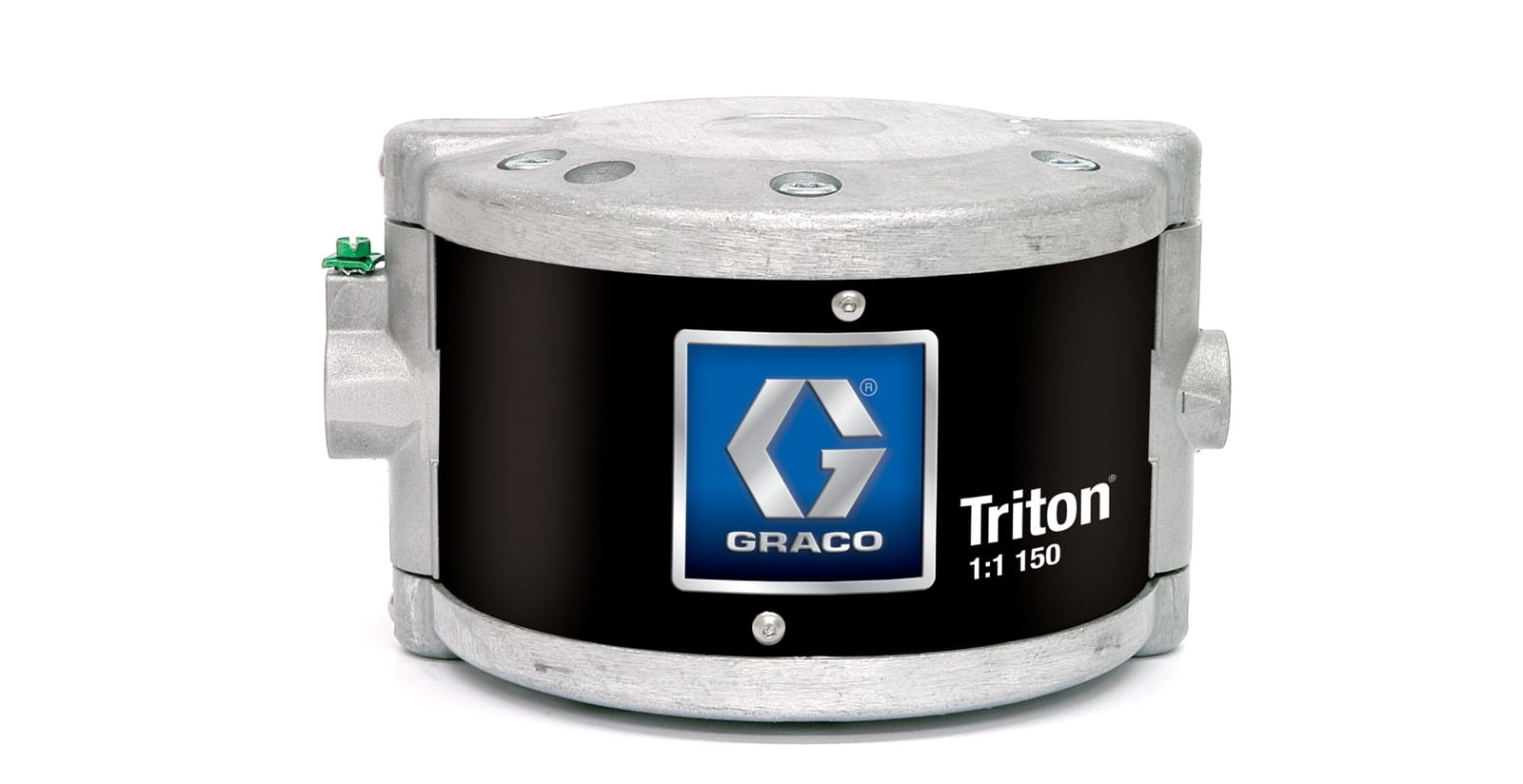

Triton 308 diaphragm pump
Price on request
Ready for shipping in 5-8 days
Create PDF offer for this product
Tip: Add multiple products to the cart and create the offer there. Logged in users get an individualized offer.
Product number:
1033472
PDF offer
Create PDF offer for this product
Tip: Add multiple products to the cart and create the offer there. Logged in users get an individualized offer.
Our payment methods:
Custom image 1
Question about this product?
We are here for you. Mon-Fri, 9am - 4pm
Also interesting
Product information
Triton is an air-operated diaphragm sprayer for high-quality and decorative painting of wood and metal. It is a more effective alternative to conventional pressure tanks and standard diaphragm pumps.
Apply a high-quality, decorative finish to wood and metal parts with this double diaphragm pump system.
- Supplies the gun with up to 35 % more air for optimum atomisation
- Saves material and time when rinsing, priming and changing colours
- Provides a consistent spray pattern and uniform film thickness
- Processes a wide range of material viscosities
- For fatigue-free working
- High-quality finish, low pulsation and even switching ensure a consistent spray pattern.
- High-quality finish, low pulsation and even switching ensure a consistent spray pattern.
- Robust stainless steel or aluminium pump for pumping a wide range of materials
| Item type: | Komplettgerät |
|---|---|
| Pumps: | Membranpumpe |
More information
- Product number: 1033472
- Manufacturer: Graco
- EAN: 00633955022614
- Weight: 7.4 kg
- Length: 1311 mm
- Width: 274 mm
- Height: 274 mm
Technical details
Operating specifications
| UPC product | 6 3 3955022614 |
|---|---|
| Division | CED |
| Price Block | 026 |
| Country of Origin | US |
| Unit | EA |
| HTS code (GB) | 8413508090 |
| HTS code (EU) | 8413508090 |
Technical
| Air inlet size (in) | 1/4 |
|---|---|
| Air inlet thread gender | Female |
| Fluid inlet size (cm) | 1. 905 |
| Fluid inlet size (in) | 3/4 |
| Fluid inlet size (mm) | 19. 05 |
| Fluid outlet size (cm) | 0. 9525 |
| Fluid outlet size (mm) | 9. 525 |
| Maximum air pressure (bar) | 8 |
| Maximum air pressure (kPa) | 80 |
| Maximum air pressure (psi) | 115 |
| Maximum flow rate (L/min) | 7. 6 |
| Maximum fluid pressure (bar) | 8 |
| Maximum fluid pressure (kPa) | 80 |
| Maximum fluid pressure (psi) | 115 |
| Model | Triton |
| Series | 308 |
| Maximum fluid pressure (MPa) | 0. 8 |
| Maximum Air Pressure (MPa) | 0. 8 |
| Maximum working pressure (psi) | 115 |
| Maximum working pressure (MPa) | 0. 8 |
| Maximum working pressure (kPa) | 80 |
| Maximum working pressure (bar) | 8 |
Further manufacturer information
Produktbroschüre
Produkthandbücher
- 309815T, Manual, Reactor Feed Pump Kits, Operation and Parts, English (Deutsch)
- 309815T, Manual, Reactor Feed Pump Kits, Operation and Parts, English (Čeština)
- 309815T, Manual, Reactor Feed Pump Kits, Operation and Parts, English (Nederlands)
- 309815T, Manual, Reactor Feed Pump Kits, Operation and Parts, English (Dansk)
- 309815T, Manual, Reactor Feed Pump Kits, Operation and Parts, English (Français)
- 309815T, Manual, Reactor Feed Pump Kits, Operation and Parts, English (Suomi)
- 309815T, Manual, Reactor Feed Pump Kits, Operation and Parts, English (Italiano)
- 309815T, Manual, Reactor Feed Pump Kits, Operation and Parts, English (Polski)
- 309815T, Manual, Reactor Feed Pump Kits, Operation and Parts, English (Español)
- 309815T, Manual, Reactor Feed Pump Kits, Operation and Parts, English (Svenska)
- 309815T, Manual, Reactor Feed Pump Kits, Operation and Parts, English (русский)
- 309815T, Manual, Reactor Feed Pump Kits, Operation and Parts, English (Türkçe)
- 309815T, Manual, Reactor Feed Pump Kits, Operation and Parts, English (中文)
- 309815T, Manual, Reactor Feed Pump Kits, Operation and Parts, English (日本語)
- 309815T, Manual, Reactor Feed Pump Kits, Operation and Parts, English (한국어)
- 309815T, Manual, Reactor Feed Pump Kits, Operation and Parts, English (English)
- 3A3929V, TRITON 308 Membranpumpe, Anleitungen/Teile (Deutsch)
- 3A3929V, TRITON 308 Membranpumpe, Anleitungen/Teile (Čeština)
- 3A3929V, TRITON 308 Membranpumpe, Anleitungen/Teile (Nederlands)
- 3A3929V, TRITON 308 Membranpumpe, Anleitungen/Teile (Dansk)
- 3A3929V, TRITON 308 Membranpumpe, Anleitungen/Teile (Français)
- 3A3929V, TRITON 308 Membranpumpe, Anleitungen/Teile (Suomi)
- 3A3929V, TRITON 308 Membranpumpe, Anleitungen/Teile (Italiano)
- 3A3929V, TRITON 308 Membranpumpe, Anleitungen/Teile (Polski)
- 3A3929V, TRITON 308 Membranpumpe, Anleitungen/Teile (Español)
- 3A3929V, TRITON 308 Membranpumpe, Anleitungen/Teile (Svenska)
- 3A3929V, TRITON 308 Membranpumpe, Anleitungen/Teile (русский)
- 3A3929V, TRITON 308 Membranpumpe, Anleitungen/Teile (Türkçe)
- 3A3929V, TRITON 308 Membranpumpe, Anleitungen/Teile (中文)
- 3A3929V, TRITON 308 Membranpumpe, Anleitungen/Teile (日本語)
- 3A3929V, TRITON 308 Membranpumpe, Anleitungen/Teile (한국어)
- 3A3929V, TRITON 308 Membranpumpe, Anleitungen/Teile (English)
Verkaufsliteratur
- 349104DE SCHLÄUCHE,SPRITZPISTOLEN UND ZUBEHÖR (Deutsch)
- 349104DE SCHLÄUCHE,SPRITZPISTOLEN UND ZUBEHÖR (Magyar)
- 349104DE SCHLÄUCHE,SPRITZPISTOLEN UND ZUBEHÖR (Čeština)
- 349104DE SCHLÄUCHE,SPRITZPISTOLEN UND ZUBEHÖR (English (UK))
- 349104DE SCHLÄUCHE,SPRITZPISTOLEN UND ZUBEHÖR (Nederlands)
- 349104DE SCHLÄUCHE,SPRITZPISTOLEN UND ZUBEHÖR (Polski)
- 349104DE SCHLÄUCHE,SPRITZPISTOLEN UND ZUBEHÖR (Svenska)
- 349104DE SCHLÄUCHE,SPRITZPISTOLEN UND ZUBEHÖR (Türkçe)
- 349104DE SCHLÄUCHE,SPRITZPISTOLEN UND ZUBEHÖR (Español)
- 349104DE SCHLÄUCHE,SPRITZPISTOLEN UND ZUBEHÖR (Français)
- 349104DE SCHLÄUCHE,SPRITZPISTOLEN UND ZUBEHÖR (Italiano)
Zertifizierungen
Reviews
Register
No reviews found. Share your experiences with others.
