Manufacturer no.:
25B502

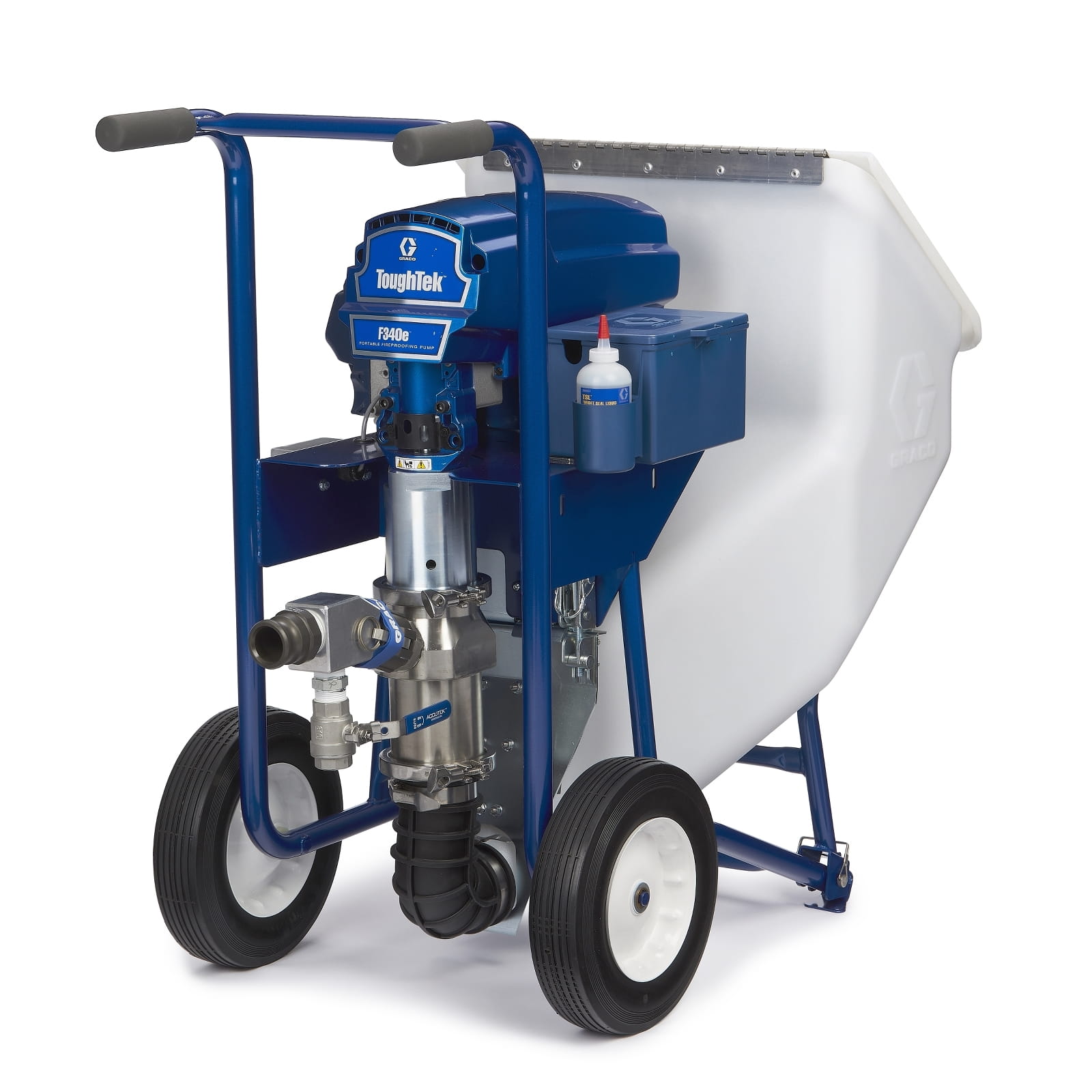

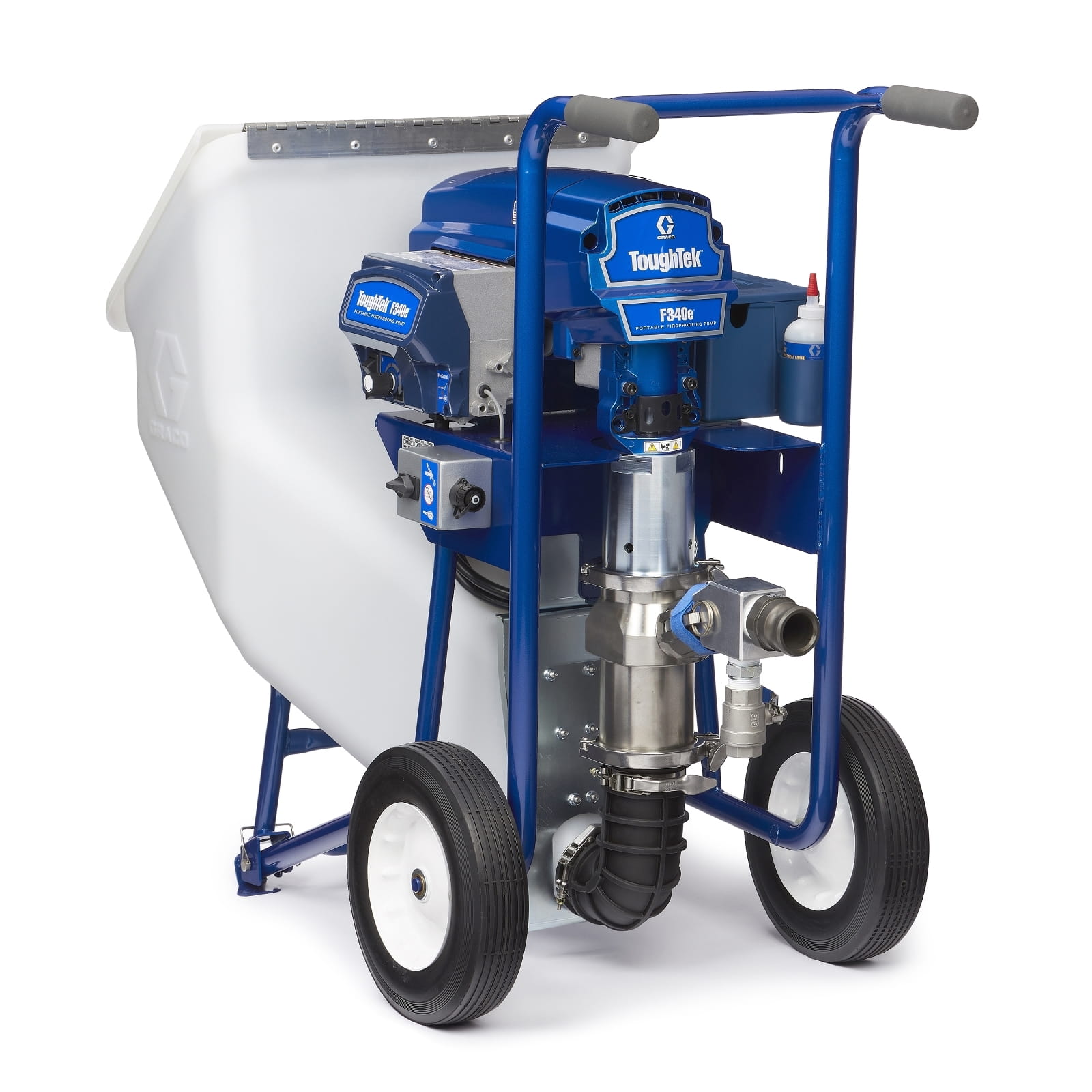

ToughTek F340e system, 120V, 15A
€13,607.06*
% €15,118.95* (10% saved)Prices include VAT plus shipping costs
€11,434.50*
Price excl. VAT
Ready for shipping in 5-8 days
Also interesting
Product information
Designed with Graco's proprietary piston pump technology, the ToughTek F340e piston pump is perfect for small to medium sized jobs spraying up to 100 bags per day and is capable of generating pressures up to 600 psi (41 bar) with an energy efficient direct drive electric motor. This high pump pressure allows your team to spray up to 150 feet (46 metres) from the machine and pump 15 bags per hour.
- Piston pump technology for effortless application of fire protection materials
- Thanks to high pressure, the job is now done faster
- Electrically powered - can be connected to a 120 V, 15 A socket
- Durable wear parts for more uptime, less downtime
- Simple operation and easy maintenance
- Ideal for applying fire protection materials to structural steel or spray foam insulation
- ProGuard System features - Integrated protection system continuously monitors operation - Dual LED indicators provide immediate feedback during material application - Automatic pump shut-off to protect against thermal overload or excessive pressure
| Application: | Fire protection |
|---|---|
| Compatible material: | Cementitious material |
| Input voltage (V ac): | 120 |
| Material: | Fire protection |
| Material outlet size (mm): | 38.1 |
| Material output (bags/h): | 20 |
| Material section type: | 2-ball |
| Maximum continuous double stroke rate (DH/min): | 150 |
| Maximum delivery rate (L/min): | 24.61 |
| Maximum input current (A): | 15 |
| Maximum operating pressure (MPa): | 4.1 |
| Maximum operating pressure (kPa): | 4130 |
| Maximum operating pressure (psi): | 600 |
| Maximum operating temperature (°C): | 49 |
| Minimum operating temperature (°C): | 0 |
| Model: | ToughTek |
| Motor type: | Brushless |
| Permissible operating pressure (bar): | 41.3 |
| Portable: | Portable |
| Series: | f340e |
| Size of the material outlet opening (inches): | 1-1/2 |
| Type: | Electric piston pump |
| Voltage (V): | 120 |
| Weight (kg): | 93 |
More information
- Product number: 1030362
- Manufacturer: Graco
- EAN: 00755652820659
- Weight: 140.16 kg
Technical details
Operating specifications
| UPC product | 755652820659 |
|---|---|
| Division | CED |
| Price Block | 2 33 |
| Country of origin | US |
| Unit | EA |
| Height | 0 CM |
| Length | 0 CM |
| Width | 0 CM |
| Volume | 0 M3 |
| Shipping weight | 140.16 KG |
Technical
| Fluid outlet size (mm) | 38. 1 |
|---|---|
| Hopper Capacity (gal) | 20 |
| Input Voltage (V ac) | 120 |
| Material output (bags/hr) | 20 |
| Maximum continuous cycle rate (CPM) | 1 5 0 |
| Maximum flow rate (L/min) | 24. 61 |
| Maximum Hose Length (ft) | 1 5 0 |
| Maximum input amperage (A) | 15 |
| Maximum operating temperature (°C) | 4 9 |
| Maximum operating temperature (°F) | 120 |
| Maximum working pressure (bar) | 41. 3 |
| Maximum working pressure (kPa) | 4130 |
| Maximum working pressure (psi) | 600 |
| Minimum operating temperature (°C) | 0 |
| Minimum operating temperature (°F) | 32 |
| Model | ToughTek |
| Portable | Portable |
| Power rating (HP) | 2 |
| Series | F340e |
| Weight (kg) | 93 |
| Maximum working pressure (MPa) | 4. 1 |
