Manufacturer no.:
17Y233

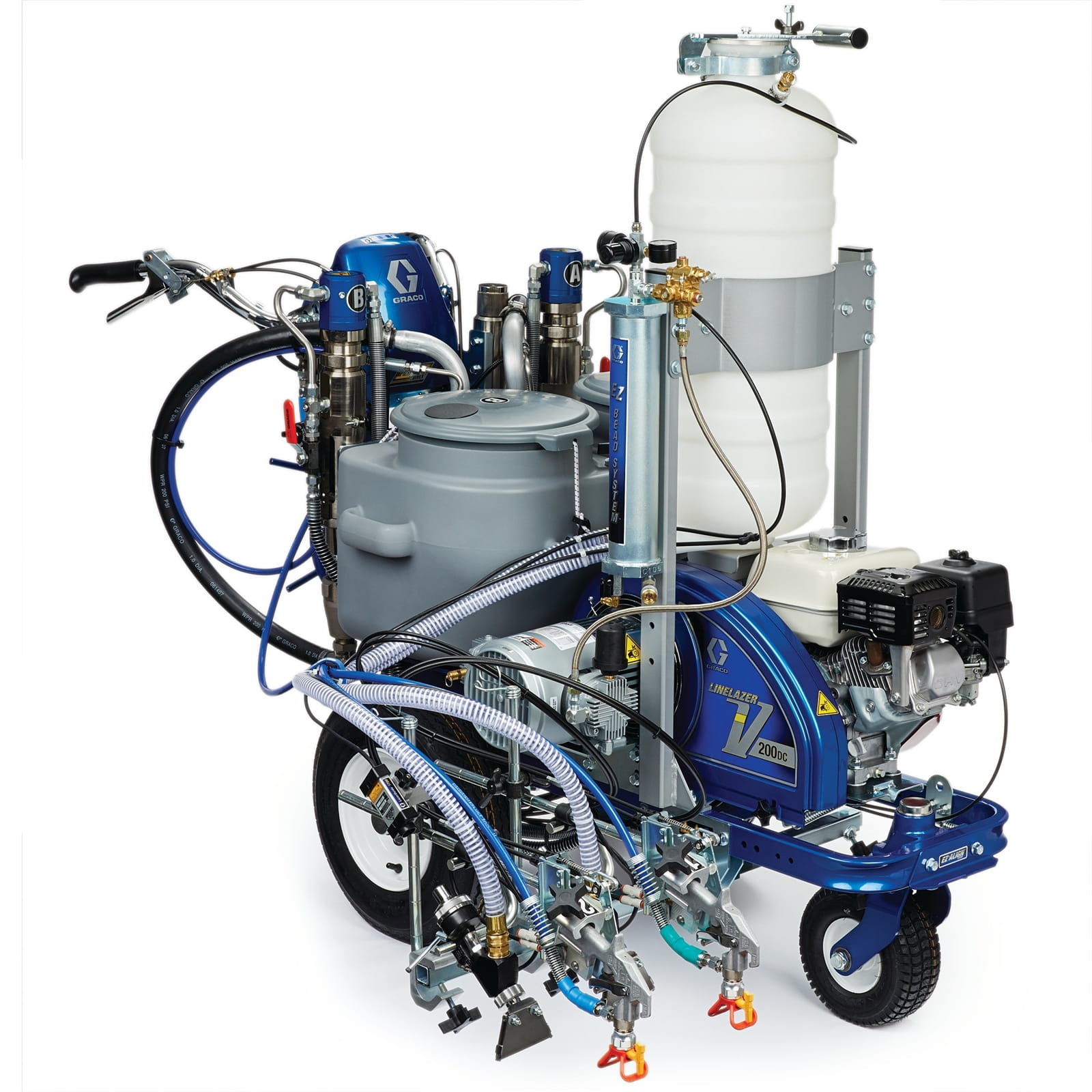

The LineLazer V 200DC HP Reflective series, a petrol-powered hydraulic airless marking device, 2 automatic guns, 1 container
€54,534.13*
Ready for shipping in 5-8 days
Also interesting
Product information
The new LineLazer V 200DC is ideal for smaller two-colour jobs and simplifies the two-colour application process. Marking contractors can improve efficiency and profitability by eliminating the need for separate "yellow" and "white" machines and spend less time refilling material.
The HP Reflective Series adds superior bead application capabilities to the HP Automatic Series, including automatic line making, including broken lines, and real-time application performance data for verification requirements.
- Pressurised glass bead dispensing system
- Integrated encapsulated compressor prevents dust and dirt ingress
- Appropriate bead flow and colour penetration are ensured
- Large-volume bead container with a capacity of up to 54 kg
- The bead gun is automatically activated at the same time as the paint gun
- Bead gun with application delay function
- Adjustable nozzle for regulating the bead application width
- Automatic paint gun system
- Button operation for reduced operator fatigue and accurate (interrupted) lines
- Manual, semi-automatic and fully automatic guns/mode
- Auto-Layout II
- SmartControl™ measures as you go and sets pre-marks
- Tape measure and guide cords are not required
- Reduces the time required for car park layout by half
- LiveLook display with SmartControl
- Track, measure and control every aspect of your job
- Real-time information for perfect lines
- Valuable job information with the J-Log system
- Integrated job information for proof of completion
- All job data can be recorded with the USB download
- For two colours
- Two-colour applications with just one single device for improved efficiency and profitability
- Two paint containers with 38 litre capacity
- Longer marking jobs thanks to larger material containers
- Two Graco hydraulic motors
- The hydraulic design, which prevents downtime, allows work to continue without interruption
- Honda® GX200 engine
- Reliable and easy to start
- Favoured by users: excellent performance and proven reliability
- Oil level warning switches off the engine to prevent damage if the oil level drops too low
- Additional features
- EasyMark gun adjustment system
- EZ Align wheel system
- DualComfort handlebar system
- Endurance Chromex pump
- High-performance cooling system
- QuickSelect gun selection aid
- Easy Out pump filter
- Flex Plus guns
| Compatible material: | Colors for road markings |
|---|---|
| Compatible surfaces: | road, lawn |
| Fuel tank capacity (L): | 3.6 |
| Gun activation: | Manual, automatic |
| Includes: | Flex Plus pistol (2) |
| Maximum delivery rate (L/min): | 8.14 |
| Maximum nozzle size (cm): | 838 |
| Maximum nozzle size (inch): | 33 |
| Maximum nozzle size (mm): | 8,382 |
| Maximum operating pressure (kPa): | 2270 |
| Maximum operating pressure (psi): | 3300 |
| Maximum sound pressure level (dB(A)): | 85.5 |
| Model: | LineLazer V |
| Motor model: | GX200 |
| Number of colours: | two-color |
| Number of containers: | 2 |
| Number of guns: | 2 |
| Number of pumps: | 2 |
| Permissible operating pressure (bar): | 227 |
| Product series: | HP Reflective |
| Pump type: | Endurance |
| Rated power (kW): | 4.85 |
| Series: | 200DC |
| Supply voltage: | Petrol powered, hydraulic |
| Total height (cm): | 113.03 |
| Total height (mm): | 1130.3 |
| Total length (cm): | 174.63 |
| Total length (mm): | 1746.25 |
| Total width (cm): | 87.0 |
| Total width (mm): | 870 |
| Type: | Hand-held line marking device |
| Weight (kg): | 223 |
More information
- Product number: 1032890
- Manufacturer: Graco
- EAN: 00755652823278
- Weight: 301.638 kg
- Length: 2000 mm
- Width: 1150 mm
- Height: 1600 mm
Technical details
Operating specifications
| UPC product | 755652823278 |
|---|---|
| Division | CED |
| Price Block | 018 |
| Country of Origin | US |
| Unit | EA |
| Height | 160 CM |
| Length | 200 CM |
| Width | 115 CM |
| Volume | 3 .68 m³ |
| Shipping weight | 301.64 KG |
Engine
| Engine brand | Honda |
|---|---|
| Engine model | GX200 |
| Fuel tank capacity (gal) | 0. 95 |
| Fuel Tank Capacity (L) | 3. 6 |
| Maximum flow rate (L/min) | 8. 14 |
| Maximum sound pressure level (dB(A)) | 85. 5 |
| Maximum tip size (cm) | 0. 0838 |
| Maximum tip size (in) | 0. 033 |
| Maximum tip size (mm) | 0. 8382 |
| Maximum working pressure (bar) | 2 27 |
| Maximum working pressure (kPa) | 2 270 |
| Maximum working pressure (psi) | 3 3 00 |
| Model | LineLazer V |
| Number of Colours | Two colours |
| Number of Guns | 2 |
| Number of hoppers | 2 |
| Number of Pumps | 2 |
| Overall height (cm) | 113. 03 |
| Overall Height (in) | 44. 5 |
| Overall height (mm) | 1130. 3 |
| Overall Length (cm) | 174. 63 |
| Overall Length (in) | 68. 75 |
| Overall Length (mm) | 1746. 25 |
| Overall width (cm) | 87 |
| Overall width (in) | 34. 25 |
| Overall width (mm) | 870 |
| Power Rating (HP) | 6. 5 |
| Power rating (kW) | 4. 85 |
| Series | 200DC |
| Weight (kg) | 223 |
| Bead tank size (lb) | 120 |
| Product Series | HP Reflective |
