Manufacturer no.:
24V686

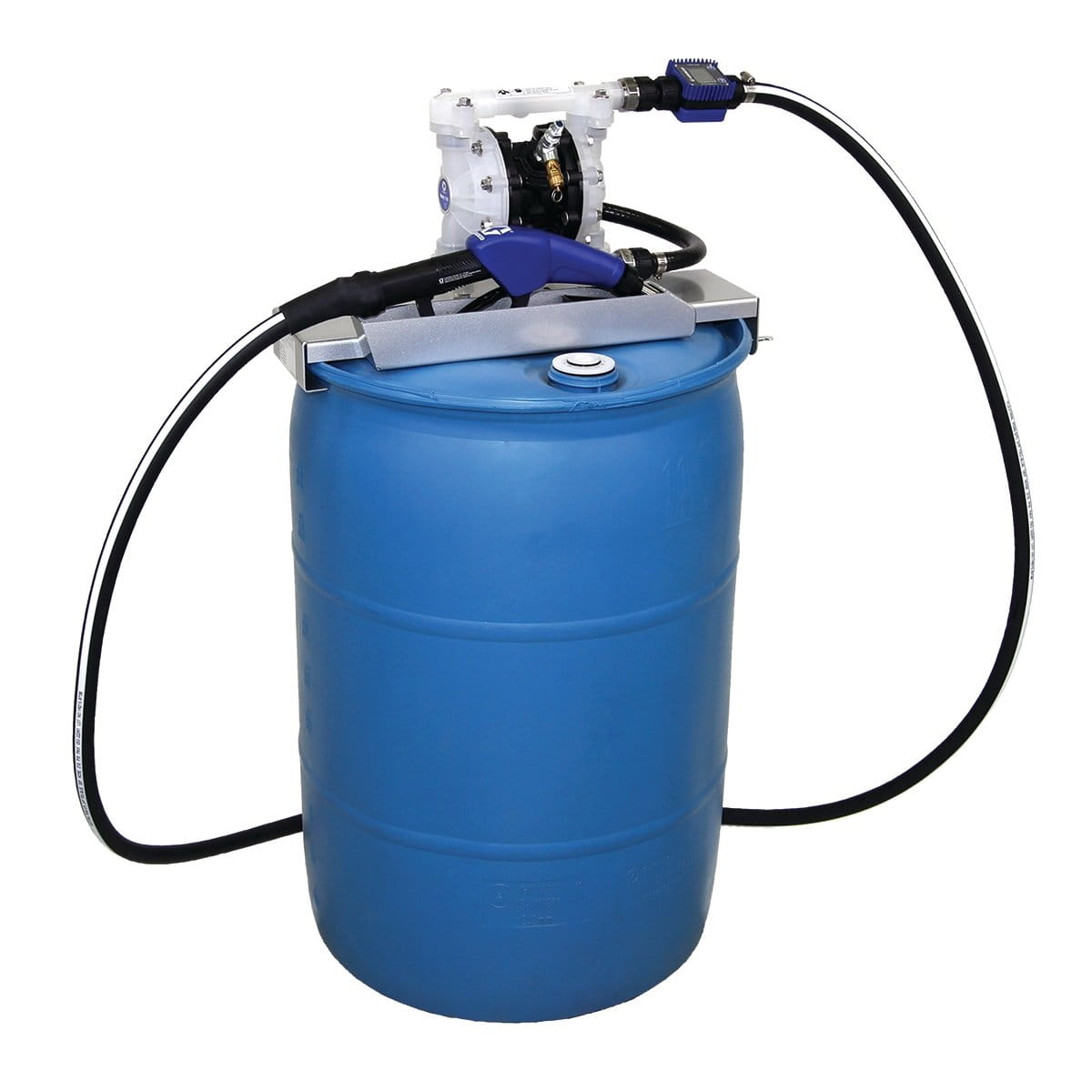

SD™ Blue Drum Pump Complete System - 2 ft (0.61 m) suction hose length - automatic nozzle - stainless steel compression fittings
€2,110.94*
% €2,345.49* (10% saved)Prices include VAT plus shipping costs
€1,773.90*
Price excl. VAT
Ready for shipping in 5-8 days
Also interesting
Product information
The Graco DEF SD Series solutions are based on the versatility of a Husky 515 air-driven double diaphragm pump with a flow rate of up to 57 l/min and an operating pressure of only 2.1 to 3.4 bar (30 to 50 psi). This powerful pneumatic design boosts productivity by providing superior siphoning and lifting in tanks, sumps and drums. From small shops to large dealerships, Graco has a complete line of AdBlue products that deliver higher performance for longer periods of time.
Typical applications include car and truck dealerships, mining, service and quick lube centres, fleet maintenance, in-plant and lubrication vehicles.
- Modular air valve in a fail-safe design with low pulsation – The fail-safe air valve with low pulsation ensures smooth and fast switching, resulting in higher efficiency and reduced downtime.
- Robust design with screw-through material cover to prevent leakage and ensure safety and reliability
- Rugged construction – corrosion resistance for reliable performance and long product life
- High efficiency air valves operate at 28 scfm maximum
- Optional centre housing and end opening
- Up to 15 feet (4.57 m) suction lift for installation flexibility
- 5-year warranty. For details, visit the manufacturer's website.
| Application: | industry |
|---|---|
| Compatible material: | Diesel Exhaust Fluid |
| For use with: | DEF |
| Gender of the inlet thread: | Internal thread |
| Gender of the material inlet thread: | Internal thread |
| Gender of the material outlet thread: | Internal thread |
| Includes: | Air operated diaphragm pump, mounting bracket, LD automatic nozzle with SST spout, LD DEF meter, metering hose and 2 clamps, suction hose and 2 clamps, air safety valve |
| Inlet size (cm): | 1,905 |
| Inlet size (inch): | 3/4 |
| Inlet size (mm): | 19.05 |
| Inlet thread type: | BSPP(I) |
| Material inlet thread type: | BSPP(I) |
| Material outlet size (cm): | 1,905 |
| Material outlet size (mm): | 19.05 |
| Material outlet thread type: | BSPP(I) |
| Maximum air pressure (bar): | 4 |
| Maximum air pressure (kPa): | 40 |
| Maximum air pressure (psi): | 50 |
| Maximum material pressure (MPa): | 0.35 |
| Maximum material pressure (bar): | 3.4 |
| Maximum material pressure (kPa): | 34 |
| Maximum material pressure (psi): | 50 |
| Maximum number of cycles (DH/min): | 400 |
| Maximum solids size (cm): | 2,381 |
| Maximum solids size (mm): | 2.3813 |
| Model: | SD |
| Mounting position: | Barrel assembly |
| Size of the material inlet opening (cm): | 1.9050 |
| Size of the material inlet opening (inches): | 3/4 |
| Size of the material inlet opening (mm): | 19.05 |
| Size of the material outlet opening (inches): | 3/4 |
| Type: | Diaphragm pump system |
More information
- Product number: 1037712
- Manufacturer: Graco
- EAN: 00633955688391
- Weight: 13.517 kg
- Length: 600 mm
- Width: 600 mm
- Height: 290 mm
Technical details
Operating specifications
| UPC product | 6 3 3955688391 |
|---|---|
| Division | LED |
| Price Block | 003 |
| Country of Origin | IT |
| Unit of measurement | EA |
| Height | 29 CM |
| Length | 60 cm |
| Width | 60 cm |
| Volume | . 104 m³ |
| Shipping weight | 13.52 KG |
| HTS code (GB) | 8413508090 |
| HTS code (EU) | 8413508090 |
Technical
| Fluid inlet size (cm) | 1. 9050 |
|---|---|
| Fluid inlet size (in) | 3/4 |
| Fluid inlet size (mm) | 19. 05 |
| Fluid inlet thread gender | Female |
| Fluid outlet size (cm) | 1. 905 |
| Fluid outlet size (mm) | 19. 05 |
| Fluid outlet thread gender | Female |
| For use with | DEF |
| Includes | Air-operated diaphragm pump, mounting bracket, LD automatic nozzle with SST spout, LD DEF meter, dispense hose and 2 clamps, suction hose and 2 clamps, air safety valve |
| Inlet Size (cm) | 1. 905 |
| Inlet size (in) | 3/4 |
| Inlet size (mm) | 19. 05 |
| Inlet thread gender | Female |
| Maximum air pressure (bar) | 4 |
| Maximum air pressure (kPa) | 40 |
| Maximum air pressure (psi) | 50 |
| Maximum cycle rate (CPM) | 400 |
| Maximum fluid pressure (bar) | 3. 4 |
| Maximum fluid pressure (kPa) | 34 |
| Maximum fluid pressure (psi) | 50 |
| Maximum solid size (cm) | 0. 2381 |
| Maximum solid size (in) | 0. 09375 |
| Maximum solid size (mm) | 2. 3813 |
| Maximum fluid pressure (MPa) | 0. 35 |
| Model | SD |
