Manufacturer no.:
FD9222

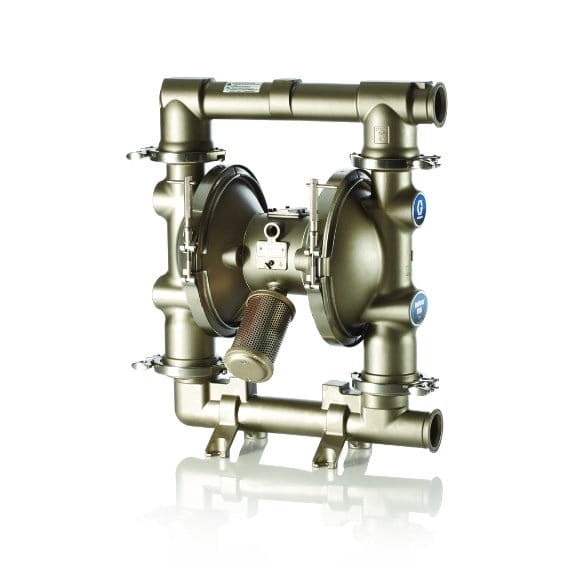

SaniForce 2150 diaphragm pump
€11,691.75*
% €12,471.20* (6.25% saved)Ready for shipping in 5-8 days
Also interesting
Product information
Graco's SaniForce 2150 air operated double diaphragm pumps feature the best, most durable, lubricant-free air valves in the industry. Excellent for applications where high flow rates and portability are required. Graco's reliable diaphragm pumps offer a wide range of food grade elastomers such as Santoprene, PTFE and moulded EPDM/PTFE.
SaniForce 2150 double diaphragm pump
- 63.5 mm (2-1/2'') Tri-Clamp connection
- Flow rates of up to 567 l/min 568 l/min
- Material pressure up to 0.84 MPa (8.4 bar, 120 psi)
- All wetted materials are FDA approved and fulfil the requirements of section 21 of the US Code of Federal Regulations (CFR)
- High-volume emptying of liquid concentrates from receiving containers or repackaging of materials from the original container into smaller containers - up to 20,000 cps
- Suitable for pumping products such as: concentrated fruit juices, sauces, pastes, starch, wine, cooking oil, jams and jellies
Patented lubricant-free air valve
- Three-way control valve for non-stick operation
- Durable 16 series stainless steel rod construction for long life and corrosion resistance
- The 1040, 1590 and 2150 SaniForce pumps use common centre sections
- 100% extremely easy to maintain air valve
Moulded PTFE / EPDM diaphragm
- Moulded diaphragm plate with PTFE on the material side and EPDM on the air side on Graco's PTFE/EPDM diaphragms - so there is no room for bacteria
- Improved wear and service life of the membrane without an exposed membrane plate on the material side
- Longer membrane life in abrasive applications where PTFE is still required
- Available for the SaniForce 1040, 1590, 2150 and SaniForce HS 1590 and 3150
| Air inlet size (inches): | 1/2 |
|---|---|
| Air inlet thread type: | NPT |
| Application: | Hygienic applications |
| Ball material: | Santoprene |
| Compatible material: | Cooking oil, food and personal care |
| Connection type: | DIN |
| Distributor O-ring material: | EPDM |
| Distributor configuration: | End opening |
| For use with: | Food and personal care |
| Gender of the air inlet thread: | Internal thread |
| Material: | stainless steel |
| Material in the liquid housing: | 316L stainless steel |
| Material of the centre housing: | stainless steel |
| Material outlet size (cm): | 6.35 |
| Material outlet size (mm): | 63.5 |
| Maximum air pressure (MPa): | 0.8 |
| Maximum air pressure (bar): | 8 |
| Maximum air pressure (kPa): | 800 |
| Maximum air pressure (psi): | 120 |
| Maximum delivery rate (L/min): | 568 |
| Maximum material pressure (MPa): | 0.8 |
| Maximum material pressure (bar): | 8 |
| Maximum material pressure (kPa): | 800 |
| Maximum material pressure (psi): | 120 |
| Maximum number of cycles (DH/min): | 165 |
| Maximum solids size (cm): | 635 |
| Maximum solids size (mm): | 6.35 |
| Membrane, compatible material: | Santoprene |
| Membrane material: | Santoprene |
| Model: | SaniForce |
| Seat material: | 316L stainless steel |
| Series: | 2150 |
| Size of the exhaust air opening (inches): | 3/4 |
| Size of the material inlet opening (cm): | 6.35 |
| Size of the material inlet opening (inches): | 2 |
| Size of the material inlet opening (mm): | 63.5 |
| Size of the material outlet opening (inches): | 2 |
| Standards met:: | ATEX, CE, FDA compliant materials |
| Supply voltage: | Pneumatic |
| Thread of the exhaust air opening (inside/outside): | Internal thread |
| Thread of the exhaust air opening (type): | NPT |
| Transmission ratio of the pump: | 1:1 |
| Type: | Pneumatic diaphragm pump |
More information
- Product number: 1035178
- Manufacturer: Graco
- EAN: 00633955677982
- Weight: 81.646 kg
Technical details
Operating specifications
| UPC product | 633955677982 |
|---|---|
| Division | PRO |
| Price Block | 2 43 |
| Country of Origin | US |
| Unit | EA |
| Height | 0 CM |
| Length | 0 CM |
| Width | 0 CM |
| Volume | 0 M3 |
| Shipping weight | 81.65 KG |
| HTS code (GB) | 8413508090 |
| HTS code (EU) | 8413508090 |
Technical
| Air exhaust port size (in) | 3/4 |
|---|---|
| Air exhaust port thread gender | Female |
| Air inlet size (in) | 1/2 |
| Air inlet thread gender | Female |
| For Use With | Food and personal care |
| Maximum Air Consumption (SCFM) | 1 75 |
| Maximum air pressure (bar) | 8 |
| Maximum air pressure (kPa) | 800 |
| Maximum air pressure (psi) | 120 |
| Maximum cycle rate (CPM) | 165 |
| Maximum flow rate (L/min) | 568 |
| Maximum fluid pressure (bar) | 8 |
| Maximum fluid pressure (kPa) | 800 |
| Maximum fluid pressure (psi) | 120 |
| Maximum solid size (cm) | 0. 63 |
| Maximum solid size (in) | 0. 25 |
| Maximum solid size (mm) | 6. 3 |
| Model | SaniForce |
| Overall Height (in) | 25. 9 |
| Series | 2150 FG |
| Maximum fluid pressure (MPa) | 0. 8 |
| Maximum air pressure (MPa) | 0. 8 |
| Maximum fluid operating temperature (°C) | 82 |
| Minimum fluid operating temperature (°C) | -40 |
| Maximum fluid operating temperature (°F) | 180 |
| Minimum fluid operating temperature (°F) | -40 |
| Surface finish | 125 Ra |
| compressor_required | Yes |
| Fluid passage size (in) | 2 |
| Fluid passage size (mm) | 50 |
| fluid_passage_size_cm | 5 |
| configuration_code | 2150FG-PS01AS14SSSPSPEP21 |
Further manufacturer information
Produkthandbücher
- 3A1882ZAN, SaniForce Membranpumpen, Anleitung – Teilelistee (Deutsch)
- 3A1882ZAN, SaniForce Membranpumpen, Anleitung – Teilelistee (中文)
- 3A1882ZAN, SaniForce Membranpumpen, Anleitung – Teilelistee (Français)
- 3A1882ZAN, SaniForce Membranpumpen, Anleitung – Teilelistee (Español)
- 3A1882ZAN, SaniForce Membranpumpen, Anleitung – Teilelistee (Italiano)
- 3A1882ZAN, SaniForce Membranpumpen, Anleitung – Teilelistee (日本語)
- 3A1882ZAN, SaniForce Membranpumpen, Anleitung – Teilelistee (русский)
- 3A1882ZAN, SaniForce Membranpumpen, Anleitung – Teilelistee (English)
