Manufacturer no.:
FD1111

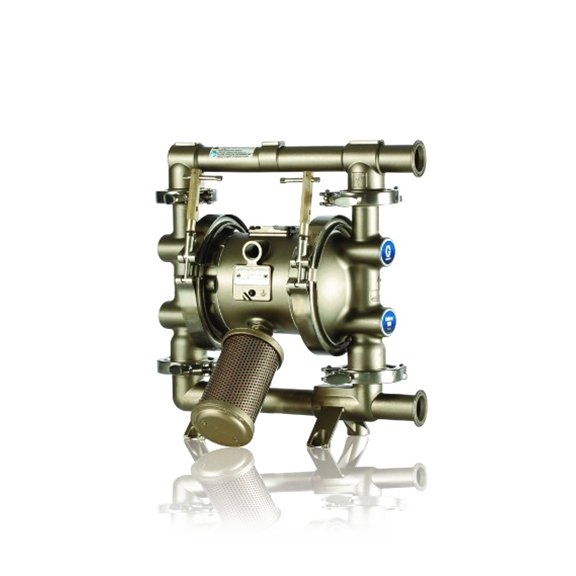

SaniForce 1040 S/S Air operated double diaphragm pump with flanged connection, 316 S/S seats, PTFE O-rings, balls and diaphragms
€6,096.89*
% €6,503.35* (6.25% saved)Ready for shipping in 5-8 days
Also interesting
Product information
Graco's SaniForce 1040 hygienic air operated double diaphragm pumps feature the best, most durable, lubricant-free air valves in the industry. Excellent for applications where high flow rates and portability are required. Graco's reliable diaphragm pumps offer a wide range of food grade elastomers such as Santoprene, PTFE and moulded EPDM/PTFE.
- 38 mm (1.5'') Tri-Clamp connection
- All materials in contact with the fluid are FDA approved and fulfil the requirements of Section 21 of the US Code of Federal Regulations (CFR)
- Material pressure up to 0.84 MPa (8.4 bar, 120 psi)
- Flow rates of 151 l/min
- High-volume discharge of liquid concentrates from receiving containers or repackaging of materials from the original container into smaller containers - up to 10,000 cps
- Suitable for pumping products such as: concentrated fruit juices, sauces, pastes, starch, wine, cooking oil, jams and jellies
| Air inlet size (inches): | 1/2 |
|---|---|
| Air inlet thread type: | NPT |
| Application: | Hygienic applications |
| Ball material: | PTFE |
| Compatible material: | Cooking oil, food and personal care |
| Connection type: | Tri-Clamp |
| Distributor O-ring material: | PTFE |
| Distributor configuration: | End opening |
| For use with: | Food and personal care |
| Gender of the air inlet thread: | Internal thread |
| Material: | stainless steel |
| Material in the liquid housing: | 316L stainless steel |
| Material of the centre housing: | stainless steel |
| Material outlet size (cm): | 3.81 |
| Material outlet size (mm): | 38.1 |
| Maximum air pressure (MPa): | 0.8 |
| Maximum air pressure (bar): | 8 |
| Maximum air pressure (kPa): | 800 |
| Maximum air pressure (psi): | 120 |
| Maximum delivery rate (L/min): | 151 |
| Maximum material pressure (MPa): | 0.8 |
| Maximum material pressure (bar): | 8 |
| Maximum material pressure (kPa): | 800 |
| Maximum material pressure (psi): | 120 |
| Maximum number of cycles (DH/min): | 256 |
| Maximum operating temperature (°C): | 104 |
| Maximum solids size (cm): | 3,175 |
| Maximum solids size (mm): | 3,175 |
| Membrane, compatible material: | PTFE |
| Membrane material: | PTFE |
| Model: | SaniForce |
| Seat material: | 316L stainless steel |
| Series: | 1040 |
| Size of the exhaust air opening (inches): | 3/4 |
| Size of the material inlet opening (cm): | 3.81 |
| Size of the material inlet opening (inches): | 1 |
| Size of the material inlet opening (mm): | 38.1 |
| Size of the material outlet opening (inches): | 1 |
| Standards met:: | ATEX, CE, FDA compliant materials |
| Supply voltage: | Pneumatic |
| Thread of the exhaust air opening (inside/outside): | Internal thread |
| Thread of the exhaust air opening (type): | NPT |
| Transmission ratio of the pump: | 1:1 |
| Type: | Pneumatic diaphragm pump |
| Wetted material: | 316 stainless steel, PTFE |
More information
- Product number: 1036973
- Manufacturer: Graco
- EAN: 00633955194502
- Weight: 27.7 kg
- Length: 420 mm
- Width: 240 mm
- Height: 450 mm
Technical details
Operating specifications
| UPC product | 633955194502 |
|---|---|
| Division | PRO |
| Price Block | 2 43 |
| Country of Origin | US |
| Unit | EA |
| Height | 45 CM |
| Length | 42 cm |
| Width | 24 cm |
| Volume | . 045 m³ |
| Shipping weight | 27.7 KG |
| HTS code (GB) | 8413508090 |
| HTS code (EU) | 8413508090 |
Technical
| Air exhaust port size (in) | 3/4 |
|---|---|
| Air exhaust port thread gender | Female |
| Air inlet size (in) | 1/2 |
| Air inlet thread gender | Female |
| For Use With | Food and personal care |
| Maximum Air Consumption (SCFM) | 50 |
| Maximum air pressure (bar) | 8 |
| Maximum air pressure (kPa) | 800 |
| Maximum air pressure (psi) | 120 |
| Maximum cycle rate (CPM) | 2 56 |
| Maximum flow rate (L/min) | 155 |
| Maximum fluid pressure (bar) | 8 |
| Maximum fluid pressure (kPa) | 800 |
| Maximum fluid pressure (psi) | 120 |
| Maximum solid size (cm) | 0. 32 |
| Maximum solid size (in) | 0. 125 |
| Maximum solid size (mm) | 3.2 |
| Model | SaniForce |
| Overall Height (in) | 16. 1 |
| Series | 1040 FG |
| Maximum fluid pressure (MPa) | 0. 8 |
| Maximum air pressure (MPa) | 0. 8 |
| Maximum fluid operating temperature (°C) | 82 |
| Minimum fluid operating temperature (°C) | - 40 |
| Maximum fluid operating temperature (°F) | 180 |
| Minimum fluid operating temperature (°F) | -40 |
| Surface finish | 125 Ra |
| compressor_required | Yes |
| Fluid passage size (in) | 1 |
| Fluid passage size (mm) | 25. 4 |
| Tri-Clamp Connection Size | 1. 5-inch |
| fluid_passage_size_cm | 2. 54 |
| Configuration code | 1040FG-PS01AS13SSPTPTPT21 |
