Manufacturer no.: DG2666

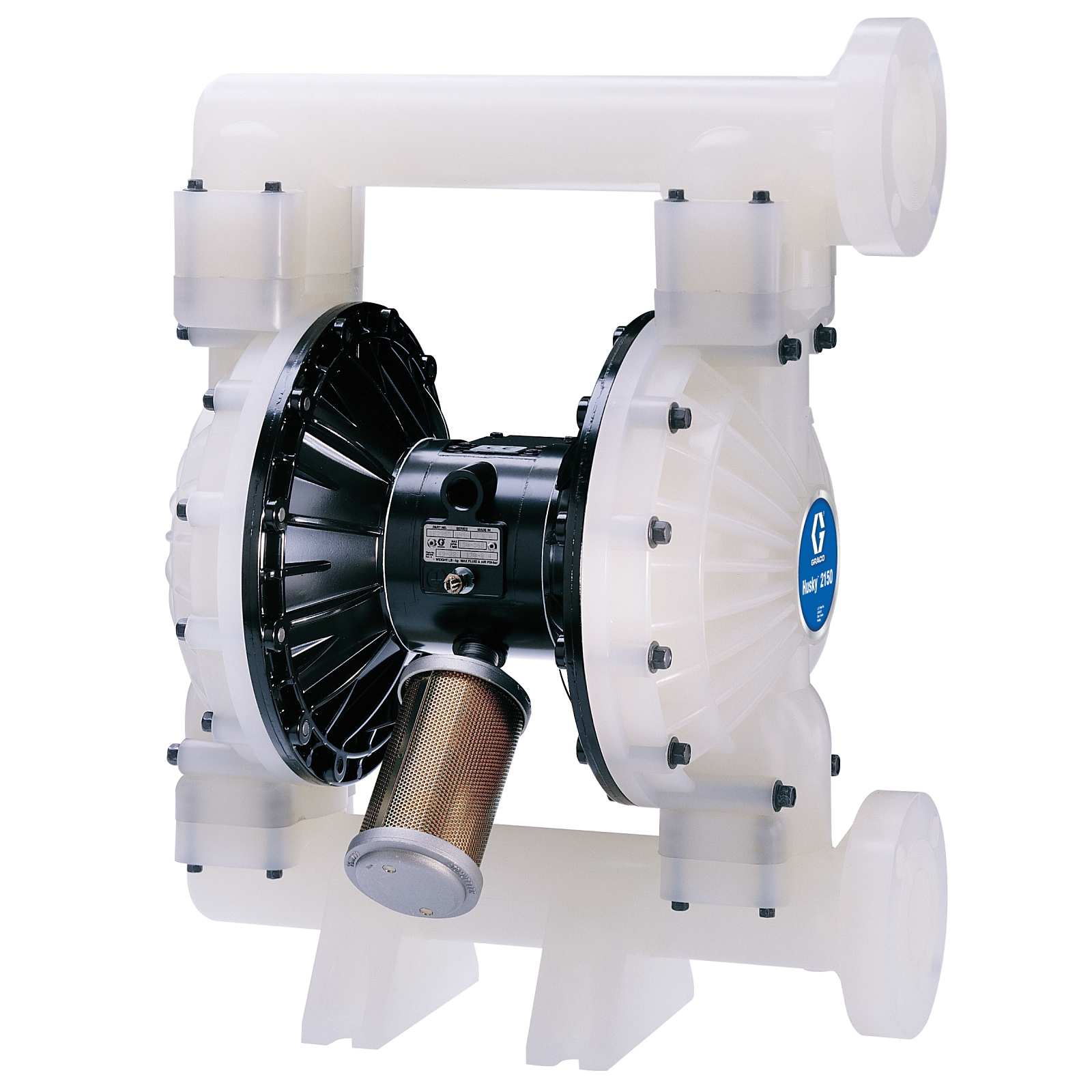

Remote-controlled pump Husky 2150 PP 51 mm (2") NPT, AL centre housing, SP seats, SP balls and SP diaphragm

€6,005.60*

% €8,283.59* (27.5% saved)

€5,046.72*

Price excl. VAT

Ready for shipping in 5-8 days

EU B2B: net prices with valid VAT ID

Also interesting

Product information

The Husky 2150 air-operated diaphragm pump with a failure-free, low pulsation air valve that provides a smooth and fast stroke change.

Improved overall efficiency (up to 40% more efficient)
Highest material flow in its class
Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps
Expanded range of materials for use in a variety of applications
The pump consists of fewer parts than many competing products and the complete air valve is accessible from the outside. This makes it quick and easy to service without having to remove the diaphragm pump.
51 mm (2") ANSI end opening
Flow rate up to 568 l/min
Material pressure up to 0.84 MPa (8.4 bar, 120 psi)
Lubricant-free operation
Epoxy-coated air section for harsh working conditions

Artikel Art:	Membranpumpe
Material Art:	Aluminium

More information

Technical details

Air exhaust port size (in)	3/4
Air exhaust port thread gender	Female
Air inlet size (in)	1/2
Air inlet thread gender	Female
Fluid inlet size (cm)	5. 08
Fluid inlet size (in)	2
Fluid inlet size (mm)	50. 8
Fluid inlet thread gender	Female
Fluid outlet size (cm)	5. 08
Fluid outlet size (mm)	50. 8
Fluid outlet thread gender	Female
Maximum air consumption (SCFM)	1 75
Maximum air pressure (bar)	8
Maximum air pressure (kPa)	800
Maximum air pressure (psi)	120
Maximum Cycle Rate (CPM)	1 45
Maximum flow rate (L/min)	568
Maximum fluid pressure (bar)	8
Maximum fluid pressure (kPa)	800
Maximum fluid pressure (psi)	120
Maximum operating temperature (°C)	66
Maximum operating temperature (°F)	1 5 0
Maximum solid size (cm)	0. 635
Maximum solid size (in)	0. 25
Maximum solid size (mm)	6. 35
Model	H usky
Series	2 150
Maximum fluid pressure (MPa)	0. 8
Maximum air pressure (MPa)	0. 8
Diaphragm compatible material	Sant op rene
