Manufacturer no.:
DC2666

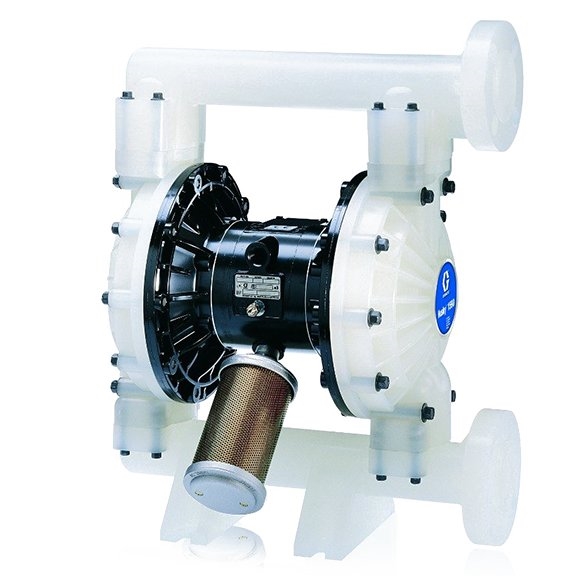

Remote-controlled pump Husky 1590 PP 38.1 mm (1-1/2") NPT, AL centre housing, SP seats, SP balls and SP diaphragm
€4,321.93*
% €5,319.30* (18.75% saved)Ready for shipping in 5-8 days
Also interesting
Product information
The Husky 1590 air operated diaphragm pump features a patented air valve with a closed centre section for high reliability that can be serviced online and an epoxy coated air section for harsh environments.
- Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps in this class
- Extended range of materials for use in a variety of applications
- The pump consists of fewer parts than many competitor products and the complete air valve is accessible from the outside. This makes it quick and easy to service without having to remove the diaphragm pump.
- Available in ATEX configuration.
- 38.1 mm (1-1/2'') ANSI end opening
- High flow - 378 l/min in a compact, portable size
- Material pressure up to 0.84 MPa (8.4 bar, 120 psi)
- Lubricant-free operation
- Available in polypropylene, aluminium and stainless steel
- Epoxy-coated air section for harsh working conditions
| Air inlet size (inches): | 1/2 |
|---|---|
| Air inlet thread type: | NPT |
| Application: | industry |
| Ball material: | Santoprene |
| Compatible material: | Antifreeze, detergent, engine oil, hydraulic fluid, cutting oil, water - wastewater transfer |
| Connection type: | With thread |
| Distributor O-ring material: | PTFE |
| Distributor configuration: | End opening |
| Gender of the air inlet thread: | Internal thread |
| Gender of the material inlet thread: | Internal thread |
| Gender of the material outlet thread: | Internal thread |
| Material: | Polypropylene |
| Material inlet thread type: | NPT |
| Material in the liquid housing: | Polypropylene |
| Material of the centre housing: | aluminum |
| Material outlet size (cm): | 3.81 |
| Material outlet size (mm): | 38.1 |
| Material outlet thread type: | NPT |
| Maximum air pressure (MPa): | 0.84 |
| Maximum air pressure (bar): | 8.4 |
| Maximum air pressure (kPa): | 840 |
| Maximum air pressure (psi): | 120 |
| Maximum delivery rate (L/min): | 379 |
| Maximum material pressure (MPa): | 0.84 |
| Maximum material pressure (bar): | 8.4 |
| Maximum material pressure (kPa): | 840 |
| Maximum material pressure (psi): | 120 |
| Maximum number of cycles (DH/min): | 200 |
| Maximum operating temperature (°C): | 66 |
| Maximum solids size (cm): | 4,763 |
| Maximum solids size (mm): | 4,763 |
| Membrane, compatible material: | Santoprene |
| Membrane material: | Santoprene |
| Model: | Husky |
| Seat material: | Santoprene |
| Series: | 1590 |
| Size of the exhaust air opening (inches): | 3/4 |
| Size of the material inlet opening (cm): | 3.81 |
| Size of the material inlet opening (inches): | 1-1/2 |
| Size of the material inlet opening (mm): | 38.1 |
| Size of the material outlet opening (inches): | 1-1/2 |
| Standards met:: | CE |
| Supply voltage: | Air |
| Thread of the exhaust air opening (inside/outside): | Internal thread |
| Thread of the exhaust air opening (type): | NPT |
| Type: | Pneumatic diaphragm pump |
More information
- Product number: 1038290
- Manufacturer: Graco
- EAN: 00633955924543
- Weight: 40 kg
- Length: 600 mm
- Width: 460 mm
- Height: 300 mm
Technical details
Operating specifications
| UPC product | 6 3 3955924543 |
|---|---|
| Division | PRO |
| Price Block | 263 |
| Country of Origin | US |
| Unit | EA |
| Height | 58 CM |
| Length | 43 cm |
| Width | 29.5 cm |
| Volume | 0 . 074 m³ |
| Shipping weight | 40 KG |
| HTS code (GB) | 8413508090 |
| HTS code (EU) | 8413508090 |
Technical
| Air exhaust port size (in) | 3/4 |
|---|---|
| Air exhaust port thread gender | Female |
| Air inlet size (in) | 1/2 |
| Air inlet thread gender | Female |
| Fluid inlet size (cm) | 3. 81 |
| Fluid inlet size (in) | 1-1/2 |
| Fluid inlet size (mm) | 38. 1 |
| Fluid inlet thread gender | Female |
| Fluid outlet size (cm) | 3. 81 |
| Fluid outlet size (mm) | 38. 1 |
| Fluid outlet thread gender | Female |
| Maximum air consumption (SCFM) | 125 |
| Maximum air pressure (bar) | 8. 4 |
| Maximum air pressure (kPa) | 840 |
| Maximum air pressure (psi) | 120 |
| Maximum Cycle Rate (CPM) | 2 00 |
| Maximum flow rate (L/min) | 379 |
| Maximum fluid pressure (bar) | 8. 4 |
| Maximum fluid pressure (kPa) | 840 |
| Maximum fluid pressure (psi) | 120 |
| Maximum operating temperature (°C) | 66 |
| Maximum operating temperature (°F) | 1 5 0 |
| Maximum solid size (cm) | 0. 4763 |
| Maximum solid size (in) | 0. 1875 |
| Maximum solid size (mm) | 4. 763 |
| Model | H usky |
| Series | 1 5 90 |
| Maximum fluid pressure (MPa) | 0. 84 |
| Maximum Air Pressure (MPa) | 0. 84 |
| Diaphragm compatible material | Sant op rene |
