Manufacturer no.: 25M333

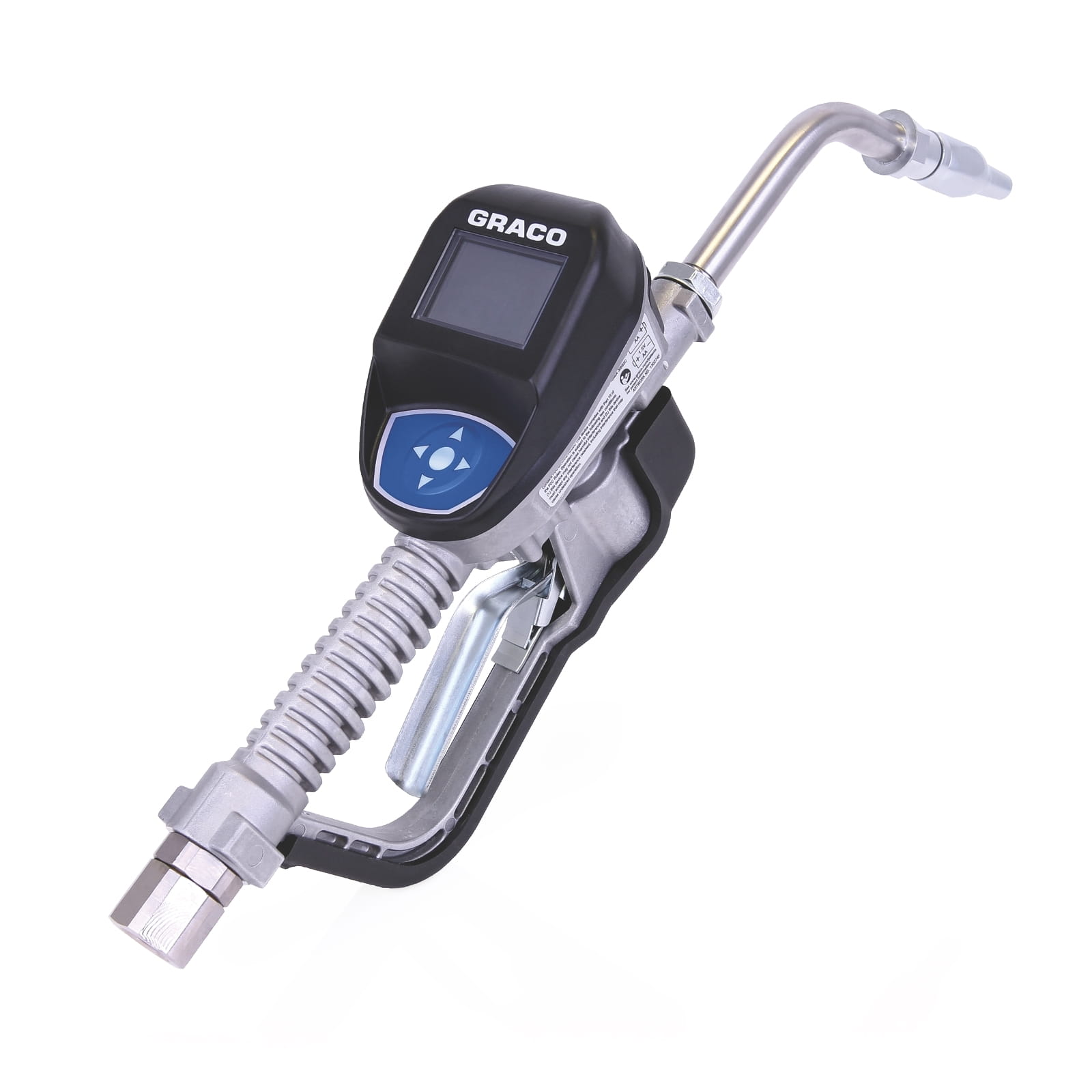

Pulse® dosing valve with measuring display for antifreeze applications - 1/2" BSPP, rigid outlet, antifreeze nozzle

€2,131.29*

Prices include VAT plus shipping costs

€1,791.00*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange

Free shipping within Germany

EU B2B: net prices with valid VAT ID

Also interesting

Product information

Graco dosing counters for our Pulse® material management system are durable and easy to use. Everything you need is always at hand. Enter PINs and other data via the intuitive display.

Track and record inventory with electronic measurement
Increase technician productivity
Flexible - one meter can handle all liquids
Reliable - time-tested Graco technology
Large, intuitive display - high-contrast display for low and bright light conditions
Trigger guard - prevents accidental dispensing
Four-finger trigger with locking function
No need to leave the bay or use the computer to finalise dispensing
Long battery life - uses 4 easily replaceable AA batteries

Artikel Art:	Düse

More information

Product number: 1035901
Manufacturer: Graco
EAN: 00755652692232
Weight: 2.993 kg
Length: 410 mm
Width: 180 mm
Height: 140 mm

Technical details

Specifications

Operating specifications

UPC product	755652692232
Division	LED
Price Block	1 54
Country of origin	US
Unit of measurement	EA
Height	14 CM
Length	41 cm
Width	18 cm
Volume	. 01 m³
Shipping weight	2 .99 KG

Technical

Display type	L CD
Extension Type	R igid
Fluid inlet thread gender	Female
Includes	Extension, nozzle, batteries, swivel boot
Inlet size (cm)	1. 27
Inlet size (in)	1/2
Inlet size (mm)	12. 7
Maximum operating temperature (°C)	70
Maximum operating temperature (°F)	158
Maximum storage temperature (°F)	158
Maximum storage temperature (°C)	70
Maximum working pressure (psi)	1 5 00
Maximum working pressure (kPa)	1 0 340
Maximum working pressure (bar)	103. 4
Meter Accuracy (%)	±0. 5
Overall Length (cm)	33
Overall Length (ft)	1
Overall Length (in)	13
Overall Length (mm)	330
Overall Width (cm)	9. 5
Overall width (in)	3. 75
Overall width (mm)	95
Meter Technology	Oval Gear
Metering Gun Weight (lb)	5. 3
Metering gun weight (kg)	2. 4
Minimum flow rate (GPM)	0. 25
Minimum flow rate (L/min)	0. 9
Warranty	Five years structural, three years electronics, one year wear components
Trigger lock	L ocking
Minimum operating temperature (°C)	4
Minimum operating temperature (°C)	-16
Maximum Working Pressure (MPa)	10. 3
Overall Length (m)	0. 33
Product Type	Meter
Model	P ulse
