Manufacturer no.: TK1000

ProMix 3KS dispenser, G3000 measuring device, single colour

€16,664.22*

% €24,151.05* (31% saved)

Prices include VAT plus shipping costs

€14,003.55*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange

Free shipping within Germany

EU B2B: net prices with valid VAT ID

Also interesting

Product information

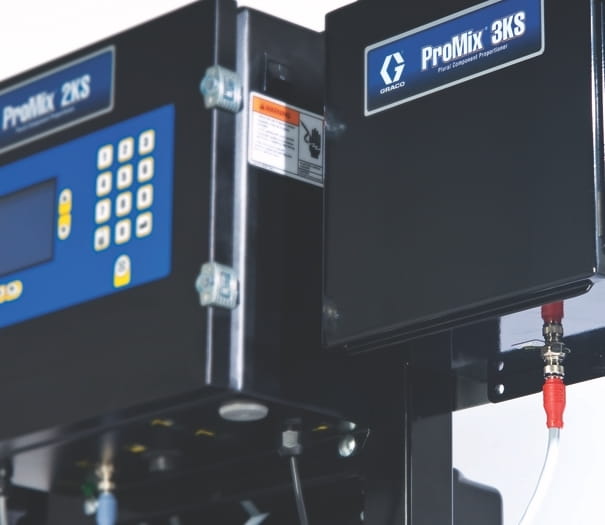

ProMix 3KS products provide highly accurate mixing of a broad range of three-component materials, including aggressive acid catalysts. They precisely match your coating materials to the correct viscosity for the working conditions. This enables extremely precise control of the mix ratio for superior results in manual or automatic operation. Efficient monitoring and reporting features with efficient colour change for less material waste.

Available in combination with a ProMix 2KS system or for upgrading existing 2KS systems
State-of-the-art web interface ensures comprehensive system management and reporting
Intrinsically safe mixing panels allow installation in hazardous locations
Easy programming makes for quick system preparation and powerful process control

Air inlet size (inches):	3/8
Air inlet thread type:	NPT
Component type:	Three components
Dosage type:	Manual Electronic, Automatic Electronic
Frequency (Hz):	50/60
Gender of the air inlet thread:	Internal thread
Gender of the material inlet thread:	Internal thread
Gender of the material outlet thread:	Internal thread
Gun activation:	Hand-
Material inlet thread type:	NPT
Material outlet size (cm):	635
Material outlet size (mm):	6.35
Material outlet thread type:	NPT
Material type:	Three components
Maximum delivery rate (L/min):	3.79
Maximum flow rate (cm³/min):	3790
Maximum material viscosity (cP):	3000
Maximum mixing ratio:	50:1
Maximum number of colours:	Up to 25
Maximum operating pressure (MPa):	27.6
Maximum operating pressure (kPa):	27600
Maximum operating pressure (psi):	4000
Maximum operating temperature (°C):	50
Measurement type:	G3000
Minimum flow rate (L/min):	75
Minimum flow rate (cm³/min):	75
Minimum material viscosity (cP):	20
Minimum mixing ratio:	0.1:1
Mixing accuracy (%):	1
Model:	ProMix
Noise pressure level, (dB(A)):	70
Number of colours:	1
Number of colour valves:	No valves
Number of hardeners:	4
Number of reducers:	4
Number of resin colours:	1
Permissible operating pressure (bar):	276
Series:	3KS
Sink type:	Air/solvent
Size of the air inlet (cm):	9,525
Size of the air inlet (mm):	9,525
Size of the material inlet opening (cm):	635
Size of the material inlet opening (inches):	1/4
Size of the material inlet opening (mm):	6.35
Size of the material outlet opening (inches):	1/4
Sound level, (dB(A)):	85
Supply voltage:	Electric
Type:	Dosing system
Wetted material:	Perfluoroelastomer, PTFE, stainless steel, tungsten carbide

More information

Product number: 1038964
Manufacturer: Graco
EAN: 00633955545045
Weight: 57.984 kg
Length: 1050 mm
Width: 900 mm
Height: 750 mm

Technical details

Specifications

Operating specifications

UPC product	633955545045
Division	IPD
Price Block	039
Country of Origin	US
Unit	EA
Height	75 CM
Length	105 cm
Width	90 cm
Volume	. 709 m³
Shipping weight	57.98 KG
HTS code (EU)	8479820000
HTS code (GB)	8479820000

Technical

Air inlet size (cm)	0. 9525
Air inlet size (in)	3/8
Air inlet size (mm)	9. 525
Air inlet thread gender	Female
Amperage (A)	2
Component Type	Three Component
Fluid inlet size (cm)	0. 635
Fluid inlet size (in)	1/4
Fluid inlet size (mm)	6. 35
Fluid inlet thread gender	Female
Fluid outlet size (cm)	0. 635
Fluid outlet size (mm)	6. 35
Fluid outlet thread gender	Female
Frequency (Hz)	50/60
Material Type	Three Component
Maximum flow rate (cc/min)	3 7 90
Maximum flow rate (L/min)	3. 79
Maximum fluid viscosity (cP)	3000
Maximum Mix Ratio	50: 1
Maximum number of colours	Up to 25
Maximum operating temperature (°C)	50
Maximum operating temperature (°F)	1 22
Maximum working pressure (bar)	2 76
Maximum working pressure (kPa)	2 7 600
Maximum working pressure (MPa)	27. 6
Maximum working pressure (psi)	4 0 00
Minimum flow rate (cc/min)	75
Minimum flow rate (GPM)	0. 02
Minimum flow rate (L/min)	0. 075
Minimum fluid viscosity (cP)	20
Minimum mix ratio	0.1: 1
Mix Accuracy (%)	1
Number of catalysts	4
Number of colour valves	No valves
Number of colours	1
Number of reducers	4
Number of resin colours	1
Sound pressure level (dB(A))	70
Model	ProMix
Series	3KS
