Manufacturer no.: SP15.0074

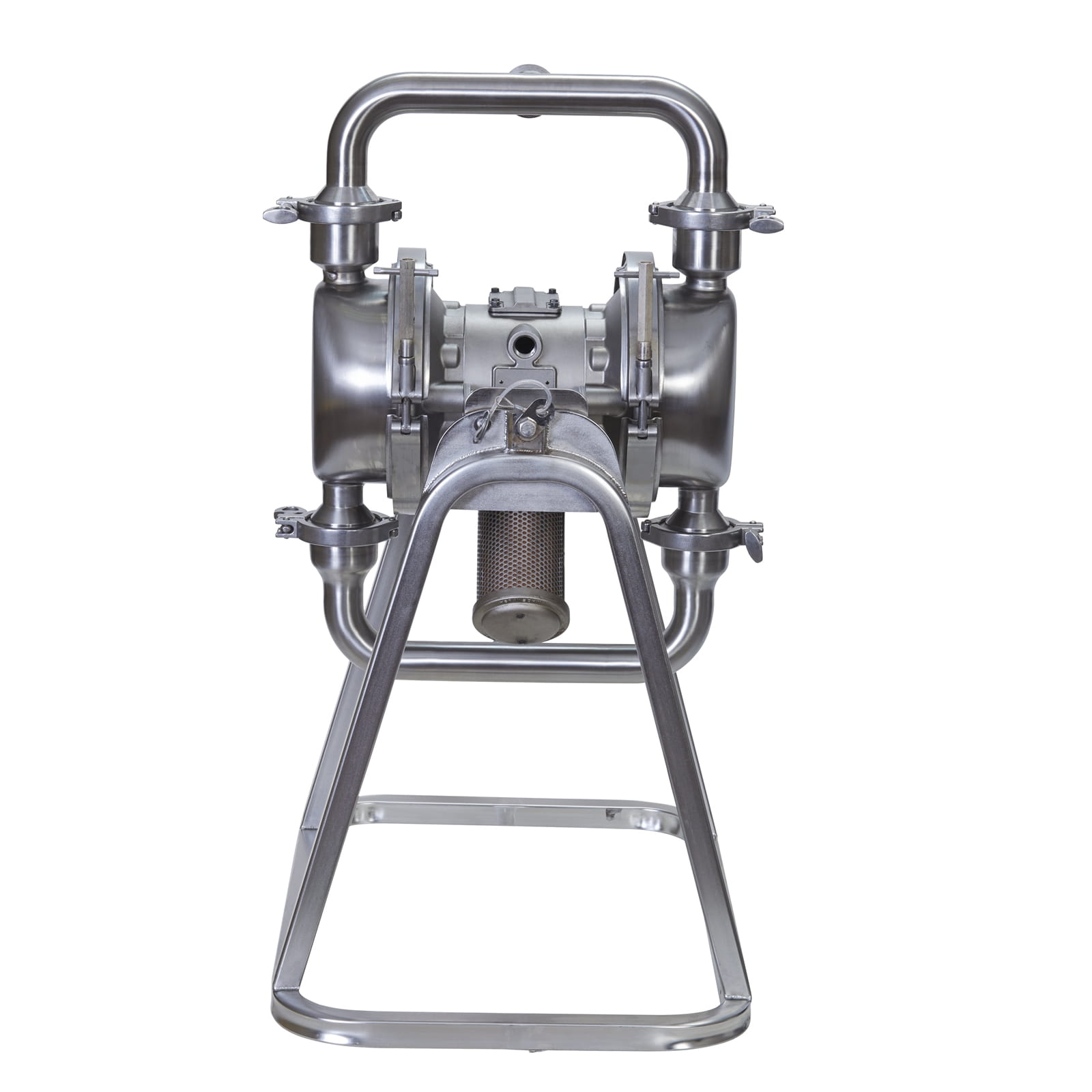

Pneumatic diaphragm pump from the SaniForce 2.0 HS, 1590, S01A, SSC, SS, PT, P, C21 series

€12,292.95*

% €14,360.92* (14.4% saved)

Prices include VAT plus shipping costs

€10,330.21*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange

Free shipping within Germany

EU B2B: net prices with valid VAT ID

Also interesting

Product information

SaniForce pneumatic diaphragm pumps are designed to meet the stringent hygiene requirements of the most demanding food, beverage, personal care and pharmaceutical applications. Air-operated SaniForce double diaphragm pumps reduce the number of tri-clamps and seals used in the material path. The result is a pump that is easier to sanitise and clean, and quicker and easier to disassemble and maintain. Conveying solids up to 3.8" in diameter and vertical and horizontal mounting of the pump. 316L stainless steel material section and multiple elastomer options provide flexibility for handling almost any material and cleaning chemical. Elastomer options for high temperature materials or steam cleaning options.

Hygienic pneumatic diaphragm pumps ranging in size from 101 mm (1" up to 4")

Flow rates up to 567 l/min and pressure up to 8.6 bar (125 psi)
Handles solids up to 96.5 mm (3.8'') in diameter
One-piece manifolds require fewer tri-clamps and gaskets for a cleaner material path and design
Surface finish options or 125, 32 or 20 Ra
Multiple approval and certification options: 3A, ATEX, USP Class VI, CE, 3.1 certification
Optional leak sensors notify users if processes could be compromised
All wetted parts made entirely of 316L stainless steel
Multiple internal elastomers ensure compatibility with your material and cleaning chemicals
Tri-clamp and hygienic DIN connections available

Item type:	Komplettgerät
Pumps:	Membranpumpe

More information

Product number: 1035872
Manufacturer: Graco
EAN: 00755652876526
Weight: 43.544 kg

Technical details

Specifications

Operating specifications

UPC product	755652876526
Division	PRO
Price Block	2 44
Country of origin	US
Unit	EA
Height	0 CM
Length	0 CM
Width	0 CM
Volume	0 M3
Shipping weight	43.54 KG

Technical

Air exhaust port size (in)	3/4
Air exhaust port thread gender	Female
Air inlet size (in)	1/2
Air inlet thread gender	Female
Fluid inlet size (cm)	3. 8
Fluid inlet size (in)	1-1/2
Fluid inlet size (mm)	38. 1
Fluid outlet size (cm)	3. 81
Fluid outlet size (mm)	38. 1
For use with	Food, personal care
Maximum Air Consumption (SCFM)	150
Maximum air pressure (bar)	8. 27
Maximum air pressure (kPa)	827
Maximum air pressure (psi)	120
Maximum cycle rate (CPM)	1 65
Maximum flow rate (L/min)	3 41
Maximum fluid pressure (bar)	8. 27
Maximum fluid pressure (kPa)	827
Maximum fluid pressure (psi)	120
Maximum operating temperature (°C)	1 04
Maximum operating temperature (°F)	220
Maximum solid size (cm)	1. 27
Maximum solid size (in)	0. 5
Maximum solid size (mm)	12. 7
Minimum operating temperature (°C)	4. 4
Minimum operating temperature (°F)	40
Overall Height (in)	32. 6
Maximum Fluid Pressure (MPa)	0. 827
Maximum air pressure (MPa)	0. 827
Diaphragm compatible material	PTFE
