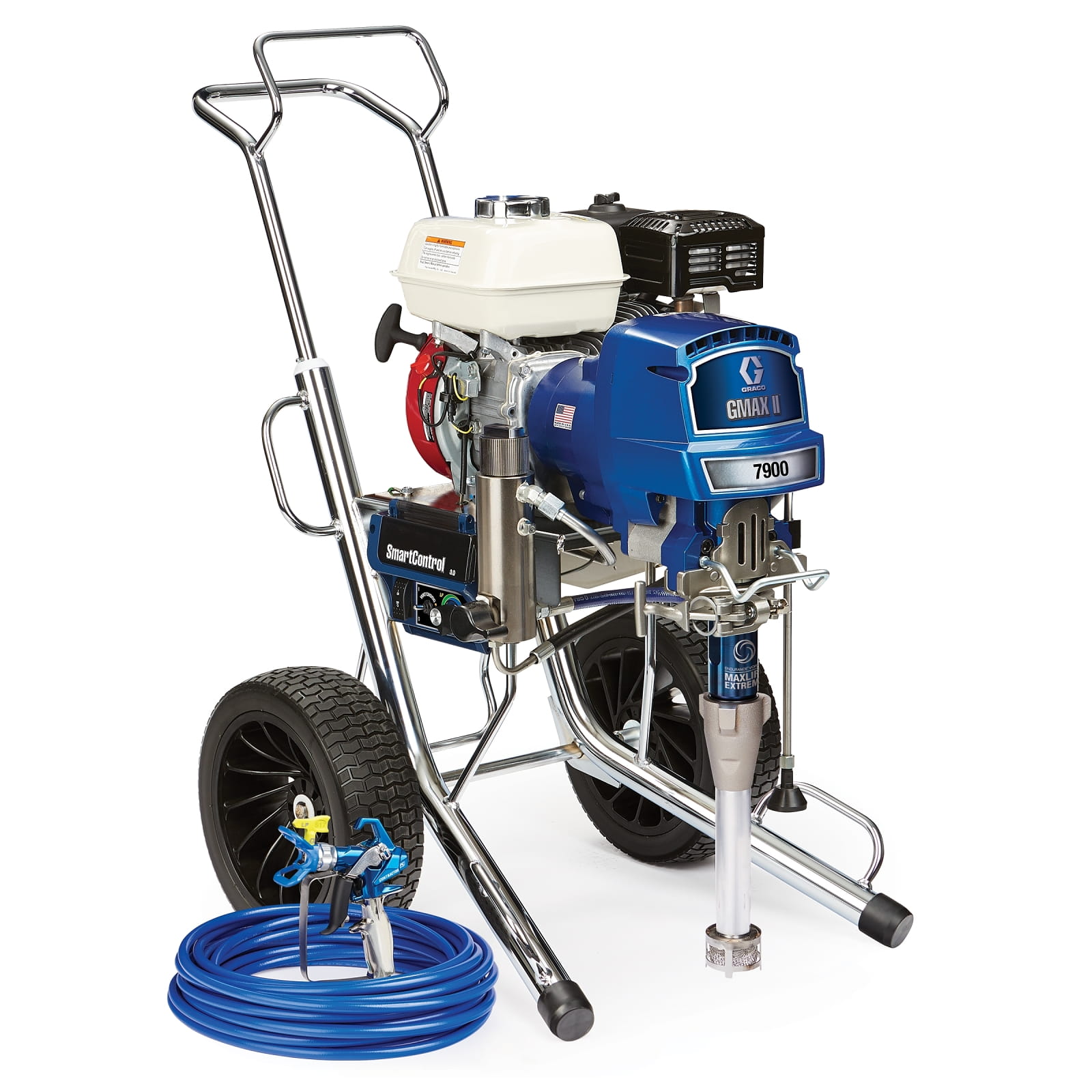

Petrol-powered airless sprayer from the GMAX II 7900 IronMan series
€12,561.94*
% €16,749.25* (25% saved)Ready for shipping in 5-8 days
Also interesting
Product information
With 35% more power than the GMAX II 5900, the GMAX II 7900 is Graco's largest fuel-powered sprayer. These units can easily handle a wide range of nozzle sizes, multi-gun operation, longer hose lengths and thicker coatings.
Ideal for demanding job sites The Graco IronMan range of petrol-powered airless paint sprayers offer superior performance and durability to tackle the toughest and most demanding conditions typically found on large commercial and industrial job sites.
- Endurance Vortex MaxLife Extreme piston pump
- The longest service life
- Pioneering Vortex torsion bar technology
- Extreme rod extends pump rod life by three times
- Oversized high flow passages to rotate the rod for even wear
- 6x more gallons can be sprayed after each replacement
- Graco's exclusive abrasion-resistant composite material provides the most durable wear surface
- Pump can be replaced in minutes with the new QuikPak cartridge repair system
- ProConnect 2 pump replacement system
- Pump replacement in 1 minute or less - no tools, pins or parts to lose
- No more costly downtime
- Fully rubberised tyres
- Never get a flat tyre again
- Tyres cannot be damaged by nails, screws or other sharp-edged parts
- Pressure-resistant inlet screen
- Durable filtration
- Withstands harsh conditions to maintain filtration and flow
- SmartControl 3.0
- Constant spray jet and pressure control
- Handles the widest range of coatings with the most consistent spray pattern
- Lowest dead zone at any pressure
- WatchDog pump protection system
- Automatically prevents pump damage if the material supply is too low
- Advantage precision drive
- The drive with the longest service life
- Improved job site conditions with extremely quiet operation
- Lifetime warranty
- Honda® engine
- Reliable, powerful and easy to start
- Oil level warning switches off the engine to prevent damage if the oil level drops too low
- Favoured by users
- LED display The easy-to-read display provides a quick overview:◦Pressure value Order/lifetime/gallon counter Self-diagnosis
- Additional features:
- Easy Out pump filter
- Robust suction valve
- Ultra-lightweight ProContractor PC gun
- Durable chassis in robust design
| Compatible material: | Stains, oils, varnishes, primers, fillers, acrylic paints, interior emulsion paints, exterior emulsion paints, latex, anti-corrosion paints |
|---|---|
| Compatible replacement pump: | 17H827 |
| Convertible: | Not convertible |
| Features: | Endurance Vortex MaxLife Extreme Pump, SmartControl 3.0, Solid Tires, Honda Engine, Advantage Drive, ProConnect 2, Easy Out Filter, Pressure Resistant Inlet Strainer, Heavy Duty Suction Valve, WatchDog, LED Display, Contractor PC Gun |
| Filter mesh size: | 60 |
| Frame configuration: | Hi boy |
| Hose inlet diameter (cm): | 635 |
| Hose inlet diameter (inch): | 1/4 |
| Hose inlet diameter (mm): | 6.35 |
| Hose reel type: | Hose holder |
| Includes: | All devices are delivered complete and ready to spray: |
| Inlet colour screen: | 8 mesh stainless steel strainer |
| Inner diameter of material hose (inch): | 1/4 |
| Material inlet thread type: | UN-2A |
| Material outlet size (mm): | 9,525 |
| Material outlet thread type: | NPSM |
| Maximum delivery rate (L/min): | 8.33 |
| Maximum hose length (m): | 60 |
| Maximum nozzle size (inch): | 48 |
| Maximum nozzle size 1 gun (inch): | 48 |
| Maximum nozzle size 2 guns (inch): | 35 |
| Maximum nozzle size 3 guns (inch): | 27 |
| Maximum nozzle size 4 guns (inch): | 23 |
| Maximum operating pressure (MPa): | 22.8 |
| Maximum operating pressure (kPa): | 22700 |
| Maximum operating pressure (kg/cm²): | 22.7 |
| Maximum operating pressure (psi): | 3300 |
| Maximum sound pressure level (dB(A)): | 96 |
| Model: | GMAX II |
| Nominal power (cm³): | 200 |
| Number of guns: | 1 |
| Outlet colour screen: | 60 mesh stainless steel sieve |
| Permissible operating overpressure (psi): | 3300 |
| Permissible operating pressure (bar): | 227 |
| Pressure control type: | SmartControl 3.0 |
| Product series: | IronMan |
| Pump mounting type: | ProConnect 2 |
| Pump rod type: | MaxLife Extreme |
| Pump sleeve material: | MaxLife |
| Pump type: | Endurance Vortex |
| Rated power (W): | 4847 |
| Rated power (kW): | 4.85 |
| Series: | 7900 |
| Size of the material inlet opening (inches): | 1-5/16 |
| Size of the material inlet opening (mm): | 33.34 |
| Size of the material outlet opening (inches): | 3/8 |
| Spray gun type: | Contractor PC Pro pistol |
| Spraying technology: | Airless |
| Supply voltage: | petrol |
| Total height (cm): | 102.9 |
| Total height (mm): | 1029 |
| Total length (cm): | 96.8 |
| Total length (mm): | 968 |
| Total width (cm): | 62.0 |
| Total width (mm): | 620 |
| Type: | Airless sprayer |
| Weight (kg): | 71 |
| Wetted material: | Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc Plated Carbon Steel, Nickel Plated Carbon Steel |
More information
- Product number: 1034732
- Manufacturer: Graco
- EAN: 00755652817123
- Weight: 89.811 kg
Technical details
Operating specifications
| UPC product | 755652817123 |
|---|---|
| Division | CED |
| Price Block | 2 48 |
| Country of origin | US |
| Unit | EA |
| Height | 103 CM |
| Length | 84 CM |
| Width | 70 cm |
| Volume | . 606 m³ |
| Shipping weight | 89.81 KG |
Technical
| Compatible replacement pump | 1 7 H827 |
|---|---|
| Convertible | Non - convertible |
| Engine Brand | Honda |
| Engine size (HP) | 6. 5 |
| Fluid inlet size (in) | 1 -5/16 |
| Fluid inlet size (mm) | 33. 34 |
| Fluid outlet size (mm) | 9. 525 |
| Frame Configuration | Hi-Boy |
| Hose inlet diameter (cm) | 0. 635 |
| Hose inlet diameter (in) | 1/4 |
| Hose inlet diameter (mm) | 6. 35 |
| Hose reel type | Hose rack |
| Includes | Contractor PC Gun, RAC X LP 517 Spray Tip, RAC X Guard, 3/8 in x 50 ft (15 m) BlueMax II Airless Hose, 1/4 in x 3 ft (0.9 m) BlueMax II Airless Whip Hose, TSL 4 oz (118 ml ) |
| Maximum flow rate (L/min) | 8. 33 |
| Maximum Hose Length (ft) | 2 00 |
| Maximum Hose Length (m) | 60 |
| Maximum sound pressure level (dB(A)) | 96 |
| Maximum tip size (in) | 0. 048 |
| Maximum tip size gun 1 (in) | 0. 048 |
| Maximum working pressure (psi) | 3 3 00 |
| Maximum working pressure (kPa) | 2 2 700 |
| Power Rating (HP) | 6. 5 |
| Power Rating (kW) | 4. 85 |
| Power rating (W) | 4 8 47 |
| Maximum working pressure (MPa) | 22. 8 |
| Pressure control type | SmartControl 3. 0 |
| Overall Width (mm) | 620 |
| Model | GMAX II |
| Maximum working pressure (bar) | 2 27 |
| Overall Height (cm) | 102. 9 |
| Overall height (in) | 40. 5 |
| Weight (kg) | 71 |
| Overall height (mm) | 1029 |
| Overall length (cm) | 96. 8 |
| Overall width (in) | 24. 4 |
| Overall Length (in) | 38. 1 |
| Series | 7 9 00 |
| Overall Length (mm) | 968 |
| Overall width (cm) | 62 |
| Maximum working pressure (kg/cm²) | 22. 7 |
| Fluid Hose Inside Diameter (in) | 1/4 |
| Outlet Paint Filter | 60 mesh stainless steel screen |
| Pump Mount Type | ProConnect 2 |
| Pump Rod Type | MaxLife Extreme |
| Number of Guns | 1 |
| Filter mesh size | 60 |
| Maximum Tip Size Gun 2 (in) | 0. 035 |
| Recommended annual usage | Up to 1,000 gallons per week |
| Maximum tip size gun 3 (in) | 0. 027 |
| Maximum tip size gun 4 (in) | 0. 023 |
| Power Rating (cc) | 2 00 |
| Product Series | IronMan |
