Manufacturer no.:
LP415
Low pressure RAC X LP SwitchTip, 415
€53.94*
% €116.62* (53.75% saved)Ready for shipping in 5-8 days
Also interesting
Product information

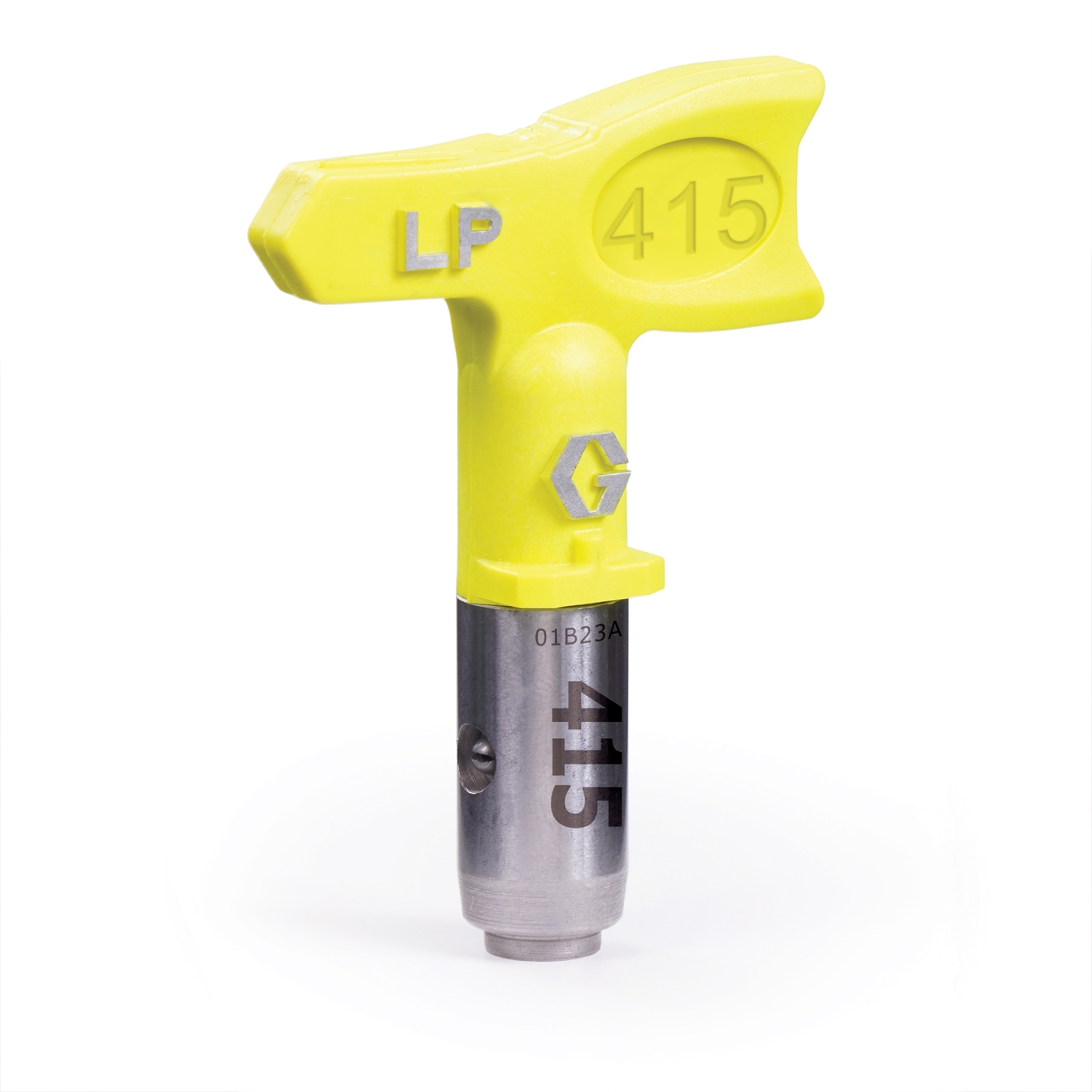

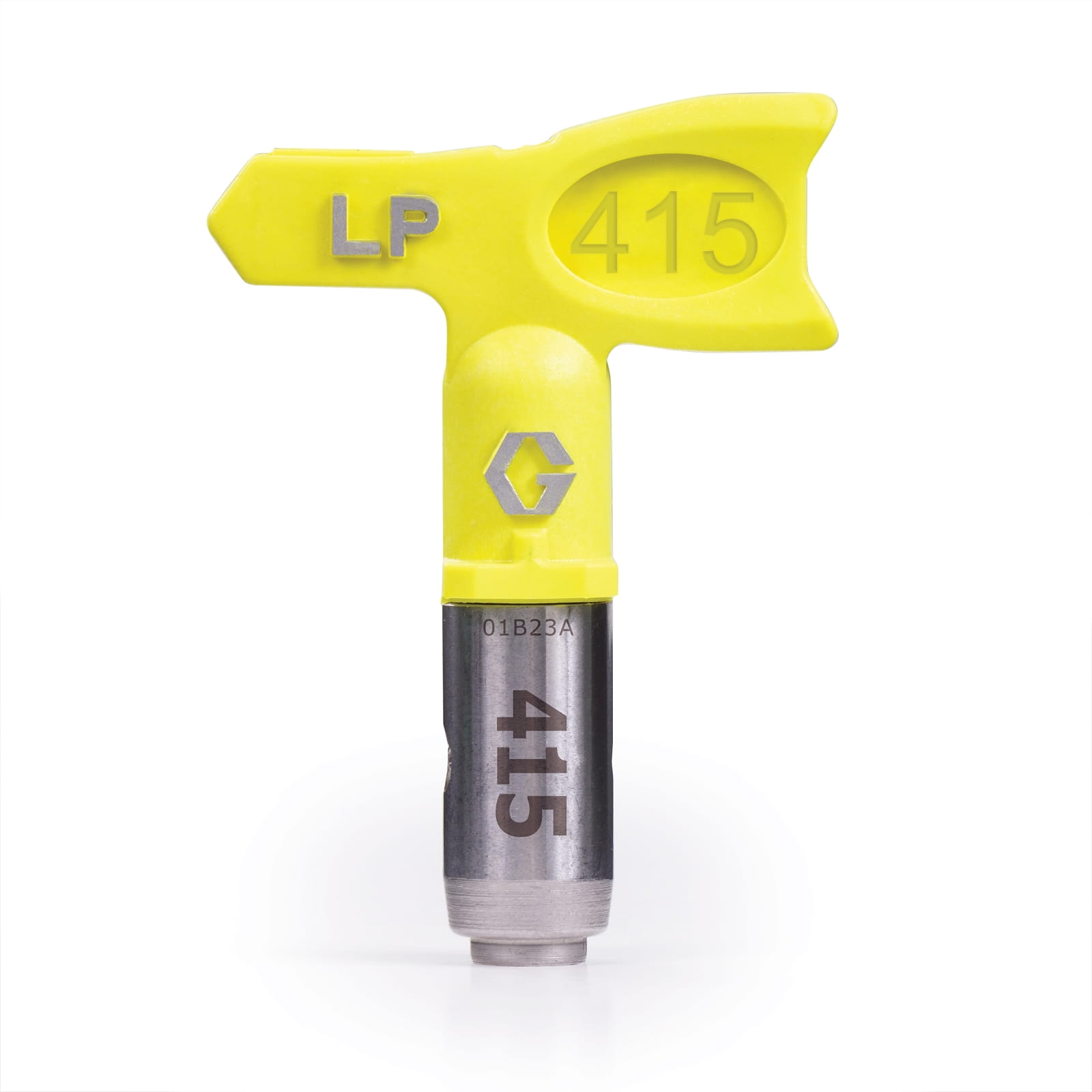

Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 415 low pressure (LP) RAC X SwitchTip. This low-pressure, high-performance nozzle produces an 8-10" spray pattern and has a 0.015" orifice. Simply reverse the SwitchTip to easily clear any blockages.
For large areas such as walls, ceilings and floors
- Less preparation and clean up time
- Less mess with less overspray
- Get the paint where you want it
- Easy pattern overlap
- Smoother spray pattern
- Easy application of any material to any surface
- Consistent finish quality
- Longer service life
- Half pressure atomisation doubles the nozzle life
- Reduced sprayer maintenance – up to twice the lifespan
- SmartTip Technology
- Exclusive internal nozzle geometry
- Reduces the energy needed to atomise paints, stains and other materials
- Delivers a superior finish with less pressure
- Works with SmartControl on select Graco sprayers
- Best nozzle on the market
- Suitable for any airless sprayer
- The most durable spray pattern
- High-quality finish with even spray pattern
- Easy-to-read tip size
- Large raised numbers are always legible, even when covered in paint
- Superior nozzle design
- The locking tab ensures that the nozzle stays securely in the nozzle guard.
- The nozzle locks in the spray position or in the reverse position.
- OneSeal nozzle seal installs without tools
- A solvent seal is available for use with extremely hot solvents
| For use with: | RAC X HandTite nozzle guard |
|---|---|
| Maximum delivery rate (L/min): | 0.91 |
| Maximum operating pressure (kPa): | 28000 |
| Maximum operating pressure (psi): | 4050 |
| Maximum spray width (cm): | 20 |
| Maximum spray width (inches): | 8 |
| Maximum spray width (mm): | 305 |
| Minimum spray width (mm): | 203 |
| Model: | RAC X |
| Permissible operating pressure (bar): | 280 |
| Series: | LP SwitchTip |
| Size of the material opening (inches): | 0.015 |
| Type: | spray nozzle |
More information
- Product number: 1031317
- Manufacturer: Graco
- EAN: 00755652694892
- Weight: 0.04 kg
- Length: 135 mm
- Width: 70 mm
- Height: 30 mm
Technical details
Operating specifications
| UPC product | 755652694892 |
|---|---|
| Division | CED |
| Price Block | 1 01 |
| Country of Origin | US |
| Unit | EA |
| Height | 3 CM |
| Length | 13.5 cm |
| Width | 7 cm |
| Volume | 0 m³ |
| Shipping weight | . 04 KG |
Technical
| Orifice diameter (in) | 0. 015 |
|---|---|
| Maximum working pressure (kPa) | 2 8 000 |
| Maximum working pressure (psi) | 4 050 |
| Maximum working pressure (bar) | 2 80 |
| For use with | RAC X HandTite Tip Guard |
| Maximum fan width (in) | 8 |
| Maximum fan width (mm) | 305 |
| Maximum fan width (cm) | 20 |
| Maximum flow rate (L/min) | 0. 91 |
| Minimum fan width (in) | 8 |
| Minimum fan width (mm) | 203 |
| Model | RAC X |
| Series | LP SwitchTip |
