Manufacturer no.:
25C975
Installation kit for electric Grease Jockey system - Sealed spring pins, drum brakes, 4x2 single axle, 3 modules, 22 points
€4,678.13*
% €5,197.92* (10% saved)Ready for shipping in 5-8 days
Also interesting
Product information

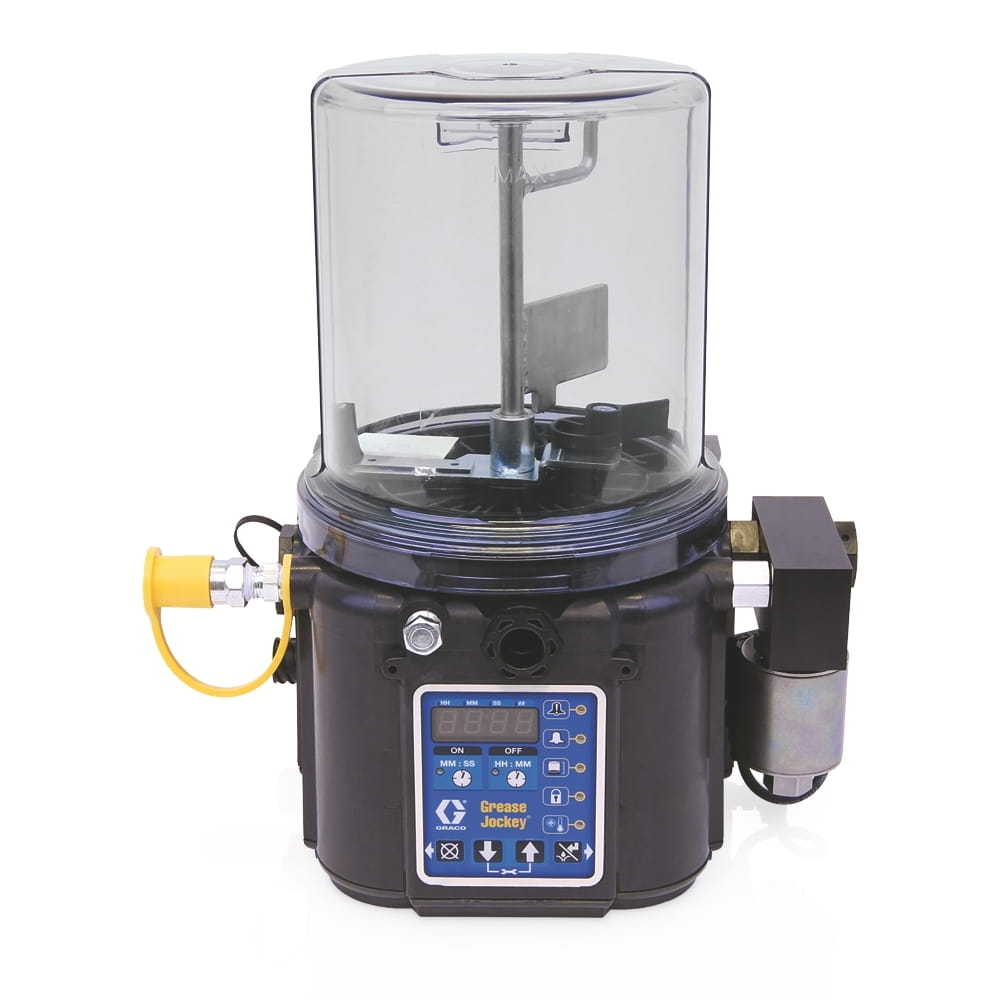

Automatic lubrication that keeps you moving. Use the electric Grease Jockey pump when you need a reliable, simple alternative to manual lubrication. Make your equipment and employees work smarter and more productively.
- Installation kit for electric Grease Jockey system
- Sealed spring pins, drum brakes - 4 x 2 single axles, 22-point / 3-module set
- Robust construction - UV resistant, chemical resistant and high impact resistant - thoroughly tested and proven in the field.
- NLGI #2 compatible - NLGI #000 to #2 and 138 bar (2000 psi).
- Low level signal - Warns when grease is low.
- Electric drive - 12 VDC (7 amp) or 24 VDC (4 amp) power. Protected against motor burnout.
- Data Management System* - Tracks critical lubrication data. Fast programming.
- Integrated Controls - Includes adjustable ON/OFF times, PIN code lockout and control panel alerts.
- In-cab feedback* - Three-colour system feedback LED indicator with manual operation button.
- Single-line distributor modules:
- Preset, field-adjustable metering modules to customise to your chassis requirements
- Modules for the right front wheel, left front wheel, rear wheel and fifth wheel cover almost every vehicle
- Each module contains everything you need for correct connections
- Innovative mounting accessories position system components along the chassis rail for added protection
| Application: | Road vehicles |
|---|---|
| Compatible material: | Fat |

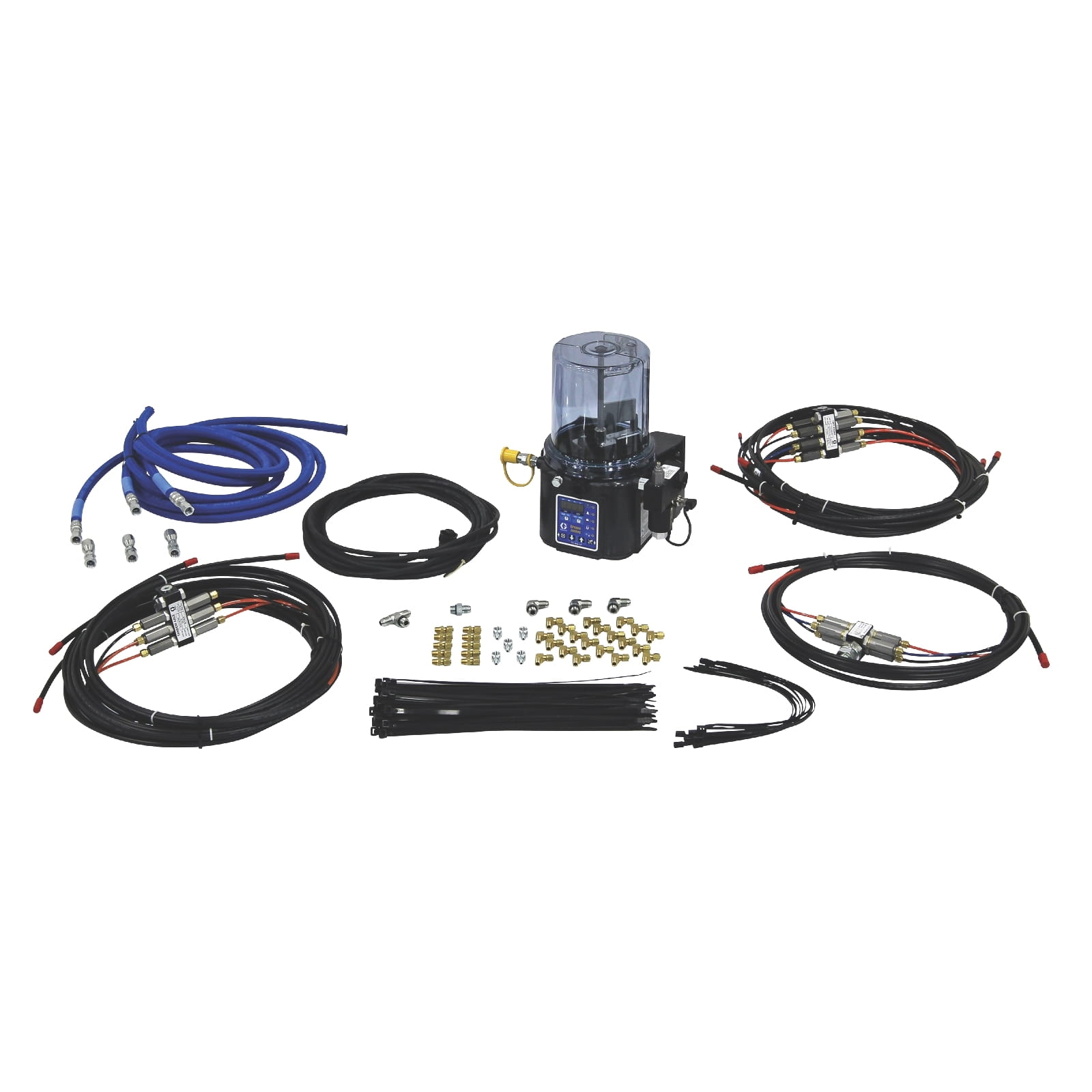

| Includes: | 12 VDC Grease Jockey pump, meter modules for front wheel left/right, 5th wheel and rear axle, hose fittings |
| Model: | Grease jockey |
| Record type: | Mobile lubrication kit |
| Type: | Barrel system |
More information
- Product number: 1031311
- Manufacturer: Graco
- EAN: 00755652653950
- Weight: 23.132 kg
Technical details
Operating specifications
| UPC product | 755652653950 |
|---|---|
| Division | LED |
| Price Block | 128 |
| Country of origin | US |
| Unit | EA |
Technical
| Kit type | Mobile Lubrication Kit |
|---|---|
| Includes | 12 VDC grease jockey pump, front left/right, 5th wheel and rear axle meter modules, hoses, fittings |
| Model | Grease Jockey |
Further manufacturer information
Produktbroschüre
Produkthandbücher
- 3A5082M, Electric Grease Jockey Automatic Lubrication System, Manual, English (English)
- 3A5082M, Electric Grease Jockey Automatic Lubrication System, Manual, English (Français)
- 3A5082M, Electric Grease Jockey Automatic Lubrication System, Manual, English (русский)
- 3A5082M, Electric Grease Jockey Automatic Lubrication System, Manual, English (Español)
- 3A5985A Grease Jockey Right Front 5 point, Kit #25C851 (Deutsch)
- 3A5985A Grease Jockey Right Front 5 point, Kit #25C851 (Français)
- 3A5985A Grease Jockey Right Front 5 point, Kit #25C851 (русский)
- 3A5985A Grease Jockey Right Front 5 point, Kit #25C851 (Español)
- 3A5989A Grease Jockey 5th Wheel SAX 10 point, Kit #25C855 (Deutsch)
- 3A5989A Grease Jockey 5th Wheel SAX 10 point, Kit #25C855 (Français)
- 3A5989A Grease Jockey 5th Wheel SAX 10 point, Kit #25C855 (русский)
- 3A5989A Grease Jockey 5th Wheel SAX 10 point, Kit #25C855 (Español)
- 3A5980A Grease Jockey Left Front 7 Point, Kit #25C858 (Deutsch)
- 3A5980A Grease Jockey Left Front 7 Point, Kit #25C858 (Français)
- 3A5980A Grease Jockey Left Front 7 Point, Kit #25C858 (русский)
- 3A5980A Grease Jockey Left Front 7 Point, Kit #25C858 (Español)
Verkaufsliteratur
- 340540ENEU Grease Jockey On-Road Lubrication Solutions (English (UK))
- 340540ENEU Grease Jockey On-Road Lubrication Solutions (русский)
- 340540ENEU Grease Jockey On-Road Lubrication Solutions (Português (BR))
Zertifizierungen
