Manufacturer no.:
DB3311

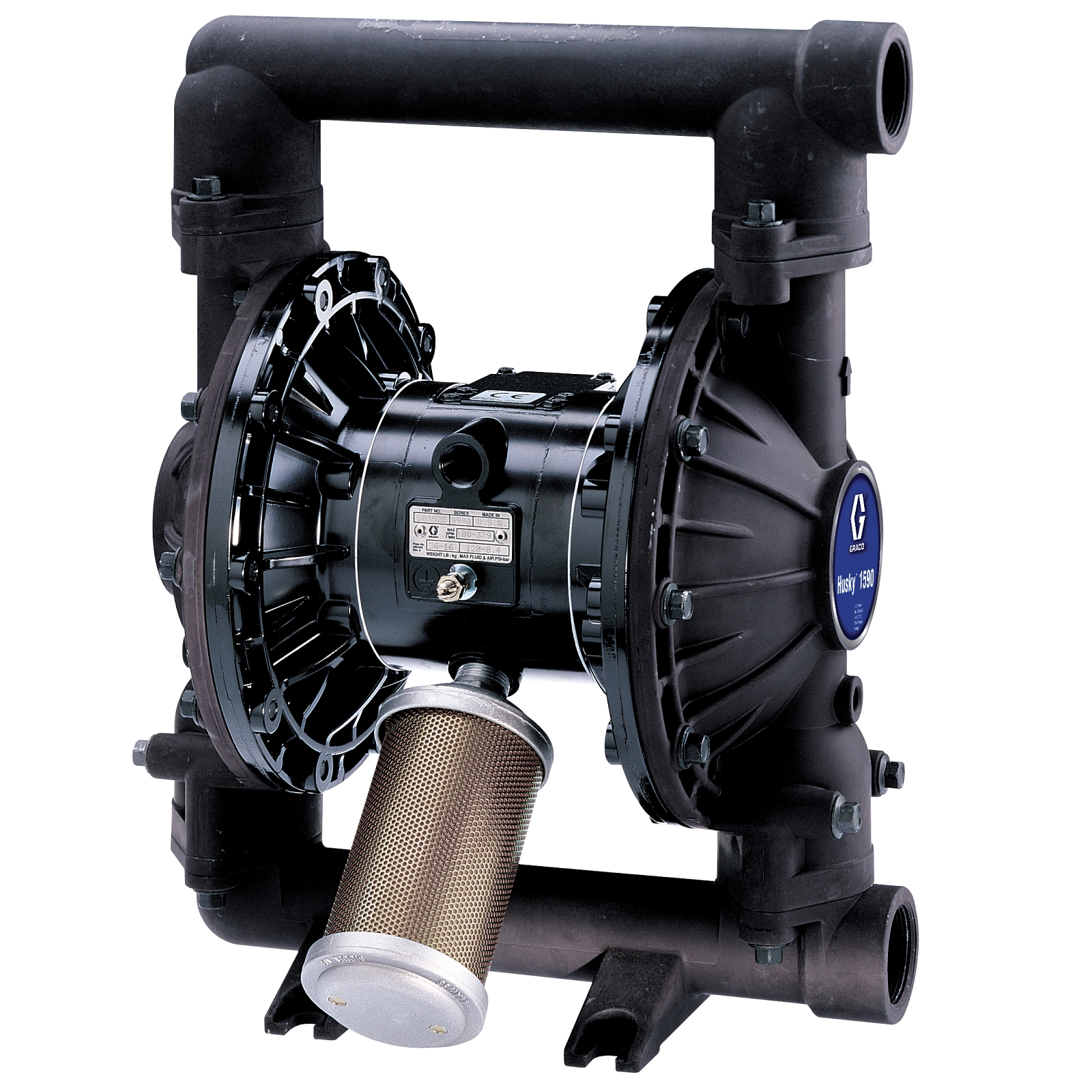

Husky 1590 AL 38.1 mm (1-1/2") BSP NPT standard pump, AL centre housing, SS seats, PTFE balls and PTFE diaphragm
€2,622.76*
% €3,617.60* (27.5% saved)Ready for shipping in 5-8 days
Also interesting
Product information
The 1590 air-operated diaphragm pump features a patented air valve with a closed centre section for high reliability, which can be maintained online, and an epoxy-coated air section for harsh environmental conditions.
- Up to 5 times longer diaphragm life compared to other diaphragm pumps in this class
- Expanded range of materials for use in a variety of applications
- The pump consists of fewer parts than many competitor products and the complete air valve is accessible from the outside. This makes it quick and easy to service without having to remove the diaphragm pump.
- Available in ATEX configuration.
- 38.1 mm (1-1/2'') ANSI end opening
- High flow - 378 l/min in a compact, portable size
- Material pressure up to 0.84 MPa (8.4 bar, 120 psi)
- Lubricant-free operation
- Available in polypropylene, aluminium and stainless steel
- Epoxy-coated air section for harsh working conditions
| Anschluss Gewinde Größe: | 1 1/2" |
|---|---|
| Artikel Art: | Komplettgerät |
| Material Art: | Aluminium, PTFE |
| Pumpen: | Membranpumpe |
More information
- Product number: 1030067
- Manufacturer: Graco
- EAN: 00633955646254
- Weight: 15.28 kg
- Length: 470 mm
- Width: 290 mm
- Height: 580 mm
Technical details
Operating specifications
| UPC product | 6 3 3955646254 |
|---|---|
| Division | PRO |
| Price Block | 263 |
| Country of Origin | US |
| Unit | EA |
| Height | 58 CM |
| Length | 47 cm |
| Width | 29 cm |
| Volume | . 079 m³ |
| Shipping weight | 22 kg |
| HTS code (GB) | 8413508090 |
| HTS code (EU) | 8413508090 |
Technical
| Air exhaust port size (in) | 3/4 |
|---|---|
| Air exhaust port thread gender | Female |
| Air inlet size (in) | 1/2 |
| Air inlet thread gender | Female |
| Fluid inlet size (cm) | 3. 81 |
| Fluid inlet size (in) | 1-1/2 |
| Fluid inlet size (mm) | 38. 1 |
| Fluid inlet thread gender | Female |
| Fluid outlet size (cm) | 3. 81 |
| Fluid outlet size (mm) | 38. 1 |
| Fluid outlet thread gender | Female |
| Maximum air consumption (SCFM) | 125 |
| Maximum air pressure (bar) | 8 |
| Maximum air pressure (kPa) | 800 |
| Maximum air pressure (psi) | 120 |
| Maximum cycle rate (CPM) | 2 00 |
| Maximum flow rate (L/min) | 379 |
| Maximum fluid pressure (bar) | 8 |
| Maximum fluid pressure (kPa) | 800 |
| Maximum fluid pressure (psi) | 120 |
| Maximum operating temperature (°C) | 82 |
| Maximum operating temperature (°F) | 180 |
| Maximum solid size (cm) | 0. 4763 |
| Maximum solid size (in) | 0. 1875 |
| Maximum solid size (mm) | 4. 763 |
| Model | H usky |
| Overall height (in) | 19. 6 |
| Series | 1590 |
| Maximum fluid pressure (MPa) | 0. 8 |
| Maximum air pressure (MPa) | 0. 8 |
| Diaphragm compatible material | PTFE |
Further manufacturer information
Produktbroschüre
Produkthandbücher
- 3A3515ZAU, Handbuch, Husky 1590 Membranpumpen aus Aluminium und Edelstahl, Installation - Teileliste (Deutsch)
- 3A3515ZAU, Handbuch, Husky 1590 Membranpumpen aus Aluminium und Edelstahl, Installation - Teileliste (Français)
- 3A3515ZAU, Handbuch, Husky 1590 Membranpumpen aus Aluminium und Edelstahl, Installation - Teileliste (Español)
- 3A3515ZAU, Handbuch, Husky 1590 Membranpumpen aus Aluminium und Edelstahl, Installation - Teileliste (русский)
- 3A3515ZAU, Handbuch, Husky 1590 Membranpumpen aus Aluminium und Edelstahl, Installation - Teileliste (Nederlands)
- 3A3515ZAU, Handbuch, Husky 1590 Membranpumpen aus Aluminium und Edelstahl, Installation - Teileliste (Italiano)
- 3A3515ZAU, Handbuch, Husky 1590 Membranpumpen aus Aluminium und Edelstahl, Installation - Teileliste (Svenska)
- 3A3515ZAU, Handbuch, Husky 1590 Membranpumpen aus Aluminium und Edelstahl, Installation - Teileliste (Türkçe)
- 3A3515ZAU, Handbuch, Husky 1590 Membranpumpen aus Aluminium und Edelstahl, Installation - Teileliste (Magyar)
- 3A3515ZAU, Handbuch, Husky 1590 Membranpumpen aus Aluminium und Edelstahl, Installation - Teileliste (日本語)
- 3A3515ZAU, Handbuch, Husky 1590 Membranpumpen aus Aluminium und Edelstahl, Installation - Teileliste (Português)
- 3A3515ZAU, Handbuch, Husky 1590 Membranpumpen aus Aluminium und Edelstahl, Installation - Teileliste (English)
- 3A3515ZAU, Handbuch, Husky 1590 Membranpumpen aus Aluminium und Edelstahl, Installation - Teileliste (中文)
