Manufacturer no.:
651158

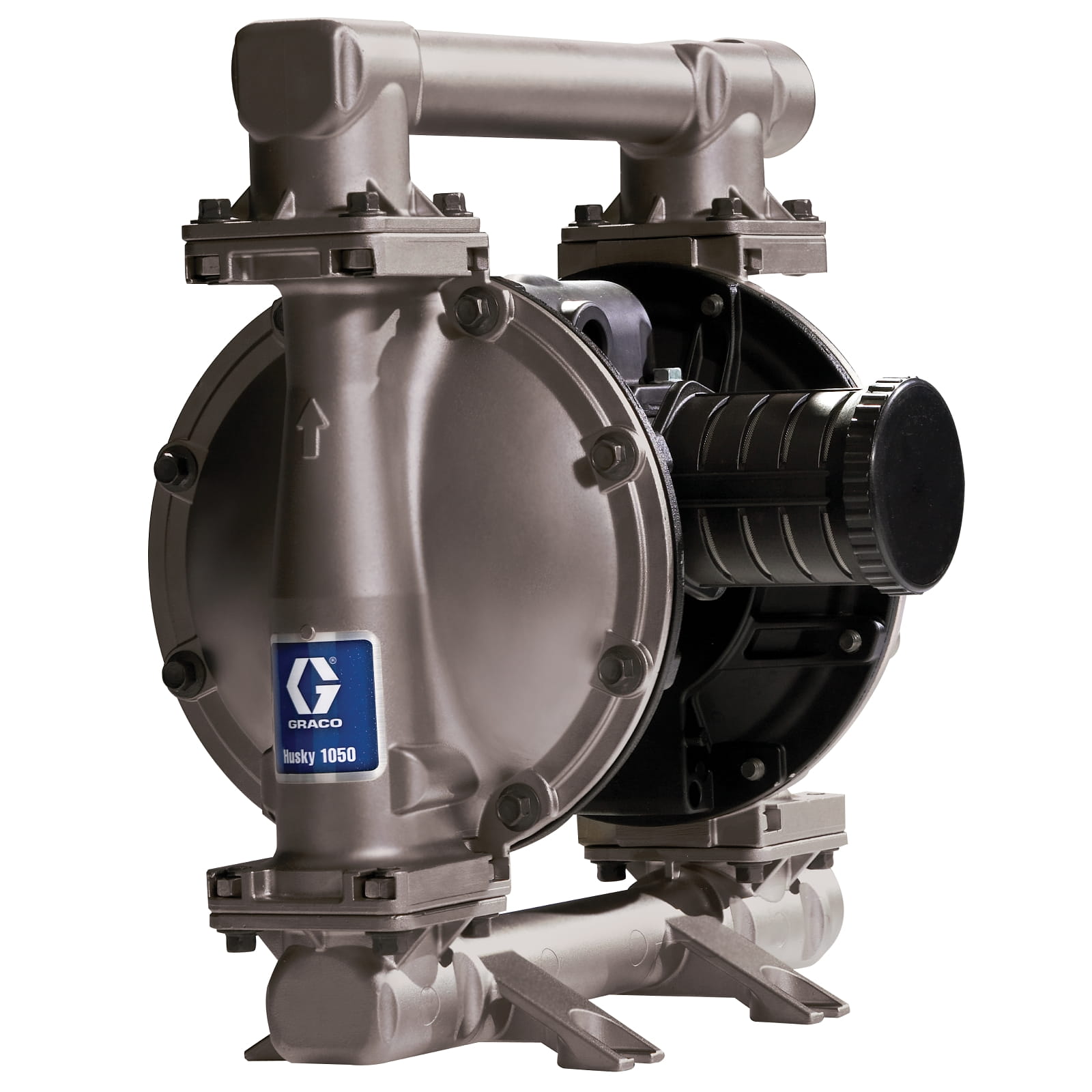

Husky 1050 SS 1" NPT pump, PP centre housing, SS seats, SP balls and SP diaphragm
Sale price:
€3,212.81
% Regular price: €4,493.44 (28.5% saved)€2,699.84*
Price excl. VAT
Ready for shipping in 5-8 days
Create PDF offer for this product
Tip: Add multiple products to the cart and create the offer there. Logged in users get an individualized offer.
Product number:
1036714
PDF offer
Create PDF offer for this product
Tip: Add multiple products to the cart and create the offer there. Logged in users get an individualized offer.
Our payment methods:
Custom image 1
Question about this product?
We are here for you. Mon-Fri, 9am - 4pm
Also interesting
Product information
The Husky 1050 air-operated diaphragm pump with a low-pulsation, non-failing air valve that provides smooth and fast stroke changes. The one-piece centre section eliminates leakage and reduces maintenance requirements for Husky pumps compared to other diaphragm pumps.
Extended diaphragm life
- The diaphragm, which has a lifespan up to five times longer, reduces maintenance and means less downtime
Modular air valve
- Zero downtime operation with low pulsation for smooth, fast parison changeovers
One-piece centre section
- Eliminates leaks and provides more efficient operation
Four-bolt connection
- The fitting ensures even contact pressure on the seal and guarantees leak-free operation.
Multiple ports
- Multiple connections for flexible installation
Optional Features
- DataTrak™ - Dry-running protection and material usage tracking
- Pulse Output - Enables cycle counting
- Spring-loaded, externally serviceable control valves for faster change-outs and reduced pulsation
- 30% more efficient than the market leader
- 20% higher material flow compared to Husky 1040
| Item type: | Membranpumpe |
|---|---|
| Type of material: | Polypropylen |
More information
- Product number: 1036714
- Manufacturer: Graco
- EAN: 00633955527676
- Weight: 18.573 kg
- Length: 360 mm
- Width: 220 mm
- Height: 400 mm
Technical details
Operating specifications
| UPC product | 633955527676 |
|---|---|
| Division | PRO |
| Price Block | 2 62 |
| Country of origin | US |
| Unit | EA |
| Height | 40 CM |
| Length | 36 cm |
| Width | 22 cm |
| Volume | . 032 m³ |
| Shipping weight | 18.57 KG |
| HTS code (GB) | 8413508090 |
| HTS code (EU) | 8413508090 |
Technical
| Air exhaust port size (in) | 3/4 |
|---|---|
| Air exhaust port thread gender | Female |
| Air inlet size (in) | 1/2 |
| Air inlet thread gender | Female |
| Fluid inlet size (cm) | 2. 54 |
| Fluid inlet size (in) | 1 |
| Fluid inlet size (mm) | 25. 4 |
| Fluid inlet thread gender | Female |
| Fluid outlet size (cm) | 2. 54 |
| Fluid outlet size (mm) | 25. 4 |
| Fluid outlet thread gender | Female |
| Maximum Air Consumption (SCFM) | 67 |
| Maximum air pressure (bar) | 8. 6 |
| Maximum air pressure (kPa) | 860 |
| Maximum air pressure (psi) | 125 |
| Maximum cycle rate (CPM) | 2 80 |
| Maximum flow rate (L/min) | 1 89 |
| Maximum fluid pressure (bar) | 8. 6 |
| Maximum fluid pressure (kPa) | 860 |
| Maximum fluid pressure (psi) | 125 |
| Maximum solid size (cm) | 0. 3175 |
| Maximum solid size (in) | 0. 125 |
| Maximum solid size (mm) | 3. 175 |
| Model | H usky |
| Series | 1 0 50 |
| Maximum fluid pressure (MPa) | 0. 86 |
| Maximum Air Pressure (MPa) | 0. 86 |
| Diaphragm compatible material | Sant op rene |
Further manufacturer information
Produktbroschüre
Produkthandbücher
- 3A0553ZAG, Handbuch, Husky 1050 Druckluft-Membranpumpe, Bedienunge (Deutsch)
- 3A0553ZAG, Handbuch, Husky 1050 Druckluft-Membranpumpe, Bedienunge (中文)
- 3A0553ZAG, Handbuch, Husky 1050 Druckluft-Membranpumpe, Bedienunge (日本語)
- 3A0553ZAG, Handbuch, Husky 1050 Druckluft-Membranpumpe, Bedienunge (한국어)
- 3A0553ZAG, Handbuch, Husky 1050 Druckluft-Membranpumpe, Bedienunge (Nederlands)
- 3A0553ZAG, Handbuch, Husky 1050 Druckluft-Membranpumpe, Bedienunge (Italiano)
- 3A0553ZAG, Handbuch, Husky 1050 Druckluft-Membranpumpe, Bedienunge (русский)
- 3A0553ZAG, Handbuch, Husky 1050 Druckluft-Membranpumpe, Bedienunge (Svenska)
- 3A0553ZAG, Handbuch, Husky 1050 Druckluft-Membranpumpe, Bedienunge (Español)
- 3A0553ZAG, Handbuch, Husky 1050 Druckluft-Membranpumpe, Bedienunge (Français)
- 3A0553ZAG, Handbuch, Husky 1050 Druckluft-Membranpumpe, Bedienunge (Slovenčina)
- 3A0553ZAG, Handbuch, Husky 1050 Druckluft-Membranpumpe, Bedienunge (Português)
- 3A0553ZAG, Handbuch, Husky 1050 Druckluft-Membranpumpe, Bedienunge (Polski)
- 3A0553ZAG, Handbuch, Husky 1050 Druckluft-Membranpumpe, Bedienunge (English)
- 3A0561ZAE, Druckluftbetriebene Membranpumpen 1050, Reparatur/Teile (Deutsch)
- 3A0561ZAE, Druckluftbetriebene Membranpumpen 1050, Reparatur/Teile (中文)
- 3A0561ZAE, Druckluftbetriebene Membranpumpen 1050, Reparatur/Teile (日本語)
- 3A0561ZAE, Druckluftbetriebene Membranpumpen 1050, Reparatur/Teile (한국어)
- 3A0561ZAE, Druckluftbetriebene Membranpumpen 1050, Reparatur/Teile (Nederlands)
- 3A0561ZAE, Druckluftbetriebene Membranpumpen 1050, Reparatur/Teile (Italiano)
- 3A0561ZAE, Druckluftbetriebene Membranpumpen 1050, Reparatur/Teile (русский)
- 3A0561ZAE, Druckluftbetriebene Membranpumpen 1050, Reparatur/Teile (Svenska)
- 3A0561ZAE, Druckluftbetriebene Membranpumpen 1050, Reparatur/Teile (Español)
- 3A0561ZAE, Druckluftbetriebene Membranpumpen 1050, Reparatur/Teile (Français)
- 3A0561ZAE, Druckluftbetriebene Membranpumpen 1050, Reparatur/Teile (Slovenčina)
- 3A0561ZAE, Druckluftbetriebene Membranpumpen 1050, Reparatur/Teile (Português)
- 3A0561ZAE, Druckluftbetriebene Membranpumpen 1050, Reparatur/Teile (Polski)
- 3A0561ZAE, Druckluftbetriebene Membranpumpen 1050, Reparatur/Teile (English)
Verkaufsliteratur
- 300570-L Prozessgeräte (Deutsch)
- 300570-L Prozessgeräte (Português (BR))
- 300570-L Prozessgeräte (English)
- 300570-L Prozessgeräte (English (UK))
- 300570-L Prozessgeräte (Español)
- 300570-L Prozessgeräte (Français)
- 300570-L Prozessgeräte (Italiano)
- 300570-L Prozessgeräte (Polski)
- 300570-L Prozessgeräte (Svenska)
- 300570-L Prozessgeräte (Türkçe)
Zertifizierungen
