Manufacturer no.:
650069

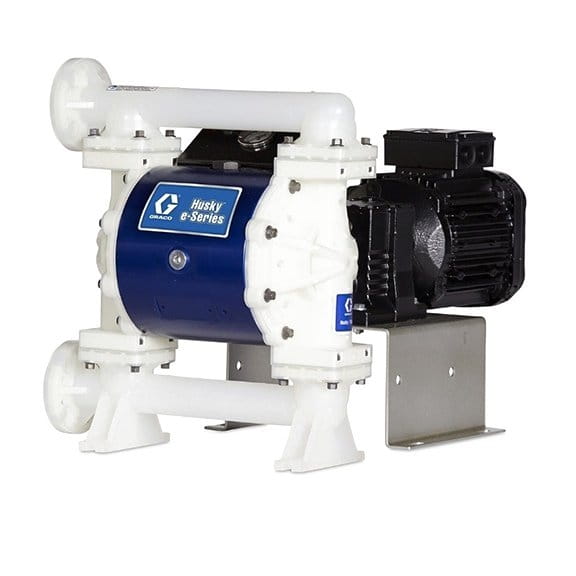

Husky 1050 PP pump, IEC 90 gearbox, end flange, AL centre housing, PP seats, PTFE balls & PO diaphragm
€7,399.54*
% €8,221.71* (10% saved)Ready for shipping in 5-8 days
Also interesting
Product information
Our e-Series Husky pumps are ideal for applications that require low pulsation and smooth flow. Thanks to the patented air drive, pulsation can be minimised or even completely avoided, without the need for expensive pulsation dampers or pressure compensation tanks.
Durable pump technology
- Conveys slurries and abrasives without damaging the pump
- Gentle on shear-sensitive material
Diaphragm pump
- Runs dry
- No rotating or moving material seals
- Self-priming
Electric drive
- Reduced energy consumption and operating costs
- Even more pump control
- Precise material dosing
Material section
- Put together your own ideal pump with our versatile material range of manifolds, seats, balls and diaphragms
Patent pending air drive
- Increase the service life of the diaphragm without affecting the material
- Possibility to reduce pulsation at the material outlet
- Standstill under pressure without additional switches and controls
- Superior energy efficiency: the electric drive consumes up to five times less energy than conventional air-operated diaphragm pumps
- Sealless diaphragm pumps prevent leaks and pump failures due to dry running
| Air inlet size (inches): | 3/8 |
|---|---|
| Air inlet thread type: | NPT |
| Application: | industry |
| Ball material: | PTFE |
| Connection type: | End flange, ANSI/DIN |
| Distributor O-ring material: | PTFE |
| Distributor configuration: | End opening |
| Gender of the air inlet thread: | Internal thread |
| Material: | Polypropylene |
| Material in the liquid housing: | Polypropylene |
| Material of the centre housing: | aluminum |
| Material outlet size (cm): | 2.54 |
| Material outlet size (mm): | 25.4 |
| Maximum air pressure (MPa): | 0.55 |
| Maximum air pressure (bar): | 5.5 |
| Maximum air pressure (kPa): | 550 |
| Maximum air pressure (psi): | 80 |
| Maximum delivery rate (L/min): | 159 |
| Maximum material pressure (MPa): | 0.48 |
| Maximum material pressure (bar): | 4.8 |
| Maximum material pressure (kPa): | 480 |
| Maximum material pressure (psi): | 70 |
| Maximum number of cycles (DH/min): | 280 |
| Maximum operating temperature (°C): | 40 |
| Maximum permissible storage temperature (°C): | 40 |
| Maximum solids size (cm): | 3,175 |
| Maximum solids size (mm): | 3,175 |
| Membrane, compatible material: | PTFE |
| Membrane material: | PTFE/EPDM encapsulated |
| Minimum operating temperature (°C): | 0 |
| Minimum storage temperature (°C): | 0 |
| Model: | Husky |
| Motor type: | No |
| Seat material: | Polypropylene |
| Series: | 1050e |
| Size of the material inlet opening (cm): | 2.54 |
| Size of the material inlet opening (inches): | 1 |
| Size of the material inlet opening (mm): | 25.4 |
| Size of the material outlet opening (inches): | 1 |
| Supply voltage: | Electric |
| Type: | Electric diaphragm pump |
More information
- Product number: 1034189
- Manufacturer: Graco
- EAN: 00755652313465
- Weight: 4.989 kg
Technical details
Operating specifications
| UPC product | 755652313465 |
|---|---|
| Division | PRO |
| Price Block | 2 16 |
| Country of origin | US |
| Unit | EA |
| Height | 0 CM |
| Length | 0 CM |
| Width | 0 CM |
| Volume | 0 M3 |
| Shipping weight | 4 .99 KG |
Technical
| Air inlet size (in) | 3/8 |
|---|---|
| Air inlet thread gender | Female |
| Fluid inlet size (cm) | 2. 54 |
| Fluid inlet size (in) | 1 |
| Fluid inlet size (mm) | 25. 4 |
| Fluid outlet size (cm) | 2. 54 |
| Fluid outlet size (mm) | 25. 4 |
| Maximum air pressure (bar) | 5. 5 |
| Maximum air pressure (kPa) | 550 |
| Maximum air pressure (psi) | 80 |
| Maximum cycle rate (CPM) | 2 80 |
| Maximum flow rate (L/min) | 1 59 |
| Maximum fluid pressure (bar) | 4. 8 |
| Maximum fluid pressure (kPa) | 480 |
| Maximum fluid pressure (psi) | 70 |
| Maximum operating temperature (°C) | 40 |
| Maximum operating temperature (°F) | 104 |
| Maximum solid size (cm) | 0. 3175 |
| Maximum solid size (in) | 0. 125 |
| Maximum solid size (mm) | 3. 175 |
| Maximum storage temperature (°C) | 40 |
| Maximum storage temperature (°F) | 104 |
| Minimum operating temperature (°C) | 0 |
| Minimum operating temperature (°F) | 32 |
| Minimum storage temperature (°C) | 0 |
| Minimum storage temperature (°F) | 32 |
| Model | H usky |
| Series | 1050e |
| Maximum fluid pressure (MPa) | 0. 48 |
| Maximum Air Pressure (MPa) | 0. 55 |
| Diaphragm compatible material | PTFE |
