Manufacturer no.:
650108

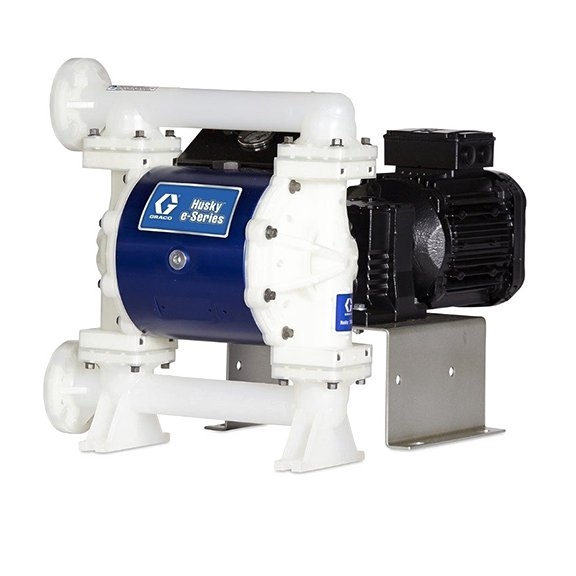

Husky 1050 PP pump, 120V compressor, BLDC motor, centre flange, AL centre housing, FKM seats, FKM balls & FKM diaphragm
€9,791.32*
% €11,519.20* (15% saved)Ready for shipping in 5-8 Werktage
Also interesting
Product information
Our e-Series Husky pumps are ideal for applications that require low pulsation and smooth flow. Thanks to the patented air drive, pulsation can be minimised or even completely avoided, without the need for expensive pulsation dampers or pressure compensation tanks.
Durable pump technology
- Conveys slurries and abrasives without damaging the pump
- Gentle on shear-sensitive material
Diaphragm pump
- Runs dry
- No rotating or moving material seals
- Self-priming
Electric drive
- Reduced energy consumption and operating costs
- Even more pump control
- Precise material dosing
Material section
- Create your own ideal pump with our versatile material range of manifolds, seats, balls and diaphragms
Patent pending air drive
- Increase the service life of the diaphragm without affecting the material
- Possibility to reduce pulsation at the material outlet
- Standstill under pressure without additional switches and controls
- Superior energy efficiency: the electric drive consumes up to five times less energy than conventional air-operated diaphragm pumps
- Sealless diaphragm pumps prevent leaks and pump failures due to dry running
| Air inlet size (inches): | 3/8 |
|---|---|
| Air inlet thread type: | NPT |
| Application: | industry |
| Ball material: | Fluoroelastomer |
| Connection type: | Centre flange, ANSI/DIN |
| Distributor configuration: | Connection in the centre: |
| Gender of the air inlet thread: | Internal thread |
| Material: | Polypropylene |
| Material in the liquid housing: | Polypropylene |
| Material of the centre housing: | aluminum |
| Material outlet size (cm): | 2.54 |
| Material outlet size (mm): | 25.4 |
| Maximum air pressure (MPa): | 0.55 |
| Maximum air pressure (bar): | 5.5 |
| Maximum air pressure (kPa): | 550 |
| Maximum air pressure (psi): | 80 |
| Maximum current (A): | 5.2 |
| Maximum delivery rate (L/min): | 159 |
| Maximum material pressure (MPa): | 0.48 |
| Maximum material pressure (bar): | 4.8 |
| Maximum material pressure (kPa): | 480 |
| Maximum material pressure (psi): | 70 |
| Maximum motor speed (rpm): | 3600 |
| Maximum number of cycles (DH/min): | 280 |
| Maximum operating temperature (°C): | 40 |
| Maximum permissible storage temperature (°C): | 40 |
| Maximum solids size (cm): | 3,175 |
| Maximum solids size (mm): | 3,175 |
| Membrane, compatible material: | FKM |
| Membrane material: | Fluoroelastomer |
| Minimum operating temperature (°C): | 0 |
| Minimum storage temperature (°C): | 0 |
| Model: | Husky |
| Motor type: | Brushless, DC |
| Seat material: | Fluoroelastomer |
| Series: | 1050e |
| Size of the material inlet opening (cm): | 2.54 |
| Size of the material inlet opening (inches): | 1 |
| Size of the material inlet opening (mm): | 25.4 |
| Size of the material outlet opening (inches): | 1 |
| Supply voltage: | Electric |
| Type: | Electric diaphragm pump |
| Voltage (V ac): | 320 |
More information
- Product number: 1039055
- Manufacturer: Graco
- EAN: 00755652313915
- Weight: 73.935 kg
