Manufacturer no.:
96G501

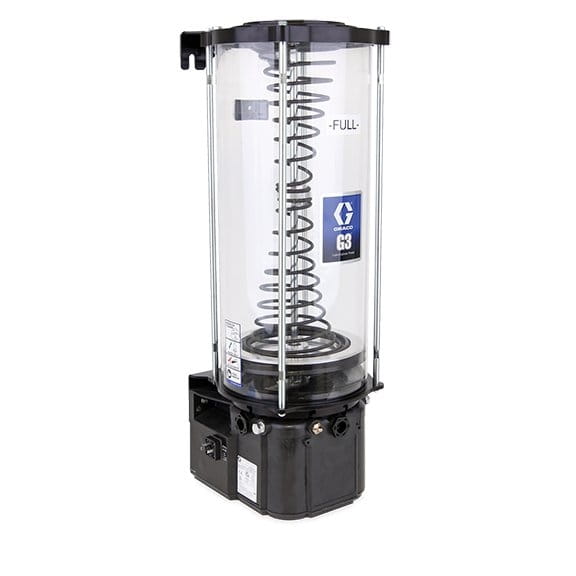

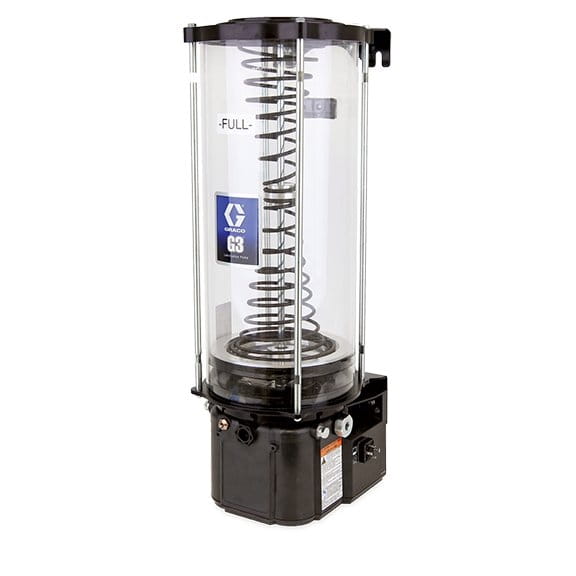

G3™ Standard grease lubricant pump, 24 VDC, 12 litre one-piece reservoir, follower plate, external low level, DIN
€2,220.18*
% €2,466.87* (10% saved)Ready for shipping in 5-8 days
Also interesting
Product information
Longer service life, lower operating costs and higher productivity with the G3 from Graco! Thanks to its flexible design, the G3 Standard works with progressive and single-line systems. A cost-effective pump for a wide range of markets and applications. It comes standard with one adjustable pump element and room for two more. Ultimate flexibility - high quality and customised for your application.
- No internal controller - for use with separate or existing controllers for a cost-effective solution.
- Can send a low signal to your external controller or PLC
| Application: | Road vehicles |
|---|---|
| Compatible dosing system: | Progressive system, multi-line system |
| Compatible material: | Fat |
| Control options: | standard |
| Energy type: | Electric |
| For use with: | Single-line systems, progressive systems |
| Gender of the material outlet thread: | Internal thread |
| IP dimensioning: | IP69K |
| Includes: | Follow plate, external low level |
| Material outlet size (mm): | 6,3500 |
| Material outlet thread type: | NPSF |
| Maximum NLGI grade: | No. 2 |
| Maximum filling inlet pressure (bar): | 344.7 |
| Maximum filling inlet pressure (kPa): | 34470 |
| Maximum filling inlet pressure (psi): | 5000 |
| Maximum operating pressure (MPa): | 35.1 |
| Maximum operating pressure (kPa): | 35160 |
| Maximum operating pressure (psi): | 5100 |
| Maximum running time (min): | 30 |
| Maximum voltage (V dc): | 32 |
| Minimum voltage (V dc): | 18 |
| Model: | G3 |
| Number of pump elements: | Up to 3 |
| Permissible operating pressure (bar): | 351.6 |
| Power connection type: | DIN |
| Reservoir size (L): | 8 |
| Series: | standard |
| Size of the material outlet opening (inches): | 0.25 |
| Type: | Electric piston pump |
| Voltage (V): | 24VDC |
| Voltage (V dc): | 24 |
| Wetted material: | Nylon, Trogamid T5004-060, Galvanized Steel, Mild Steel, Alloy Steel, Stainless Steel, Nitrile Rubber, Bronze, Nickel Plated Alnico, Chemically Lubricated Acetal, Aluminum, PTFE, Grillamid |
More information
- Product number: 1035224
- Manufacturer: Graco
- EAN: 00755652833031
- Weight: 12.791 kg
Technical details
Operating specifications
| UPC product | 755652833031 |
|---|---|
| Division | LED |
| Price Block | 125 |
| Country of origin | US |
| Unit of measurement | EA |
| Height | 0 CM |
| Length | 0 CM |
| Width | 0 CM |
| Volume | 0 M3 |
| Shipping weight | 12.79 KG |
Technical
| Fluid outlet size (mm) | 6. 3500 |
|---|---|
| Fluid outlet thread gender | Female |
| For use with | Injector-based systems, series progressive systems |
| Includes | Follower Plate, External Low Level |
| Maximum NLGI Grade | #2 |
| Maximum working pressure (bar) | 351. 6 |
| Maximum working pressure (kPa) | 3 5160 |
| Maximum working pressure (psi) | 5 1 00 |
| Model | G3 |
| Reservoir Size (gal) | 2. 11 |
| Series | Standard |
| Voltage (V DC) | 2 4 |
| Control options | Standard |
| IP rating | IP 6 9K |
| Maximum fill inlet pressure (bar) | 344. 7 |
| Maximum fill inlet pressure (kPa) | 3 4 470 |
| Maximum fill inlet pressure (psi) | 5 0 00 |
| Maximum run time (min) | 30 |
| Maximum voltage (V DC) | 32 |
| Minimum voltage (V DC) | 18 |
| Number of pump elements | Up to 3 |
| Maximum working pressure (MPa) | 35. 1 |
