Fire-Ball® oil pump, 425 series, universal size, 10:1 – complete wall-mounted unit
€5,903.59*
Prices include VAT plus shipping costs
€4,961.00*
Price excl. VAT
Ready for shipping in 5-8 days
Also interesting
Product information
Graco Fire-Ball 425 Oil Pump 10:1 (Wall-Mounted Complete Unit) – High Delivery Performance for Long Lines & Parallel Dispensing Points

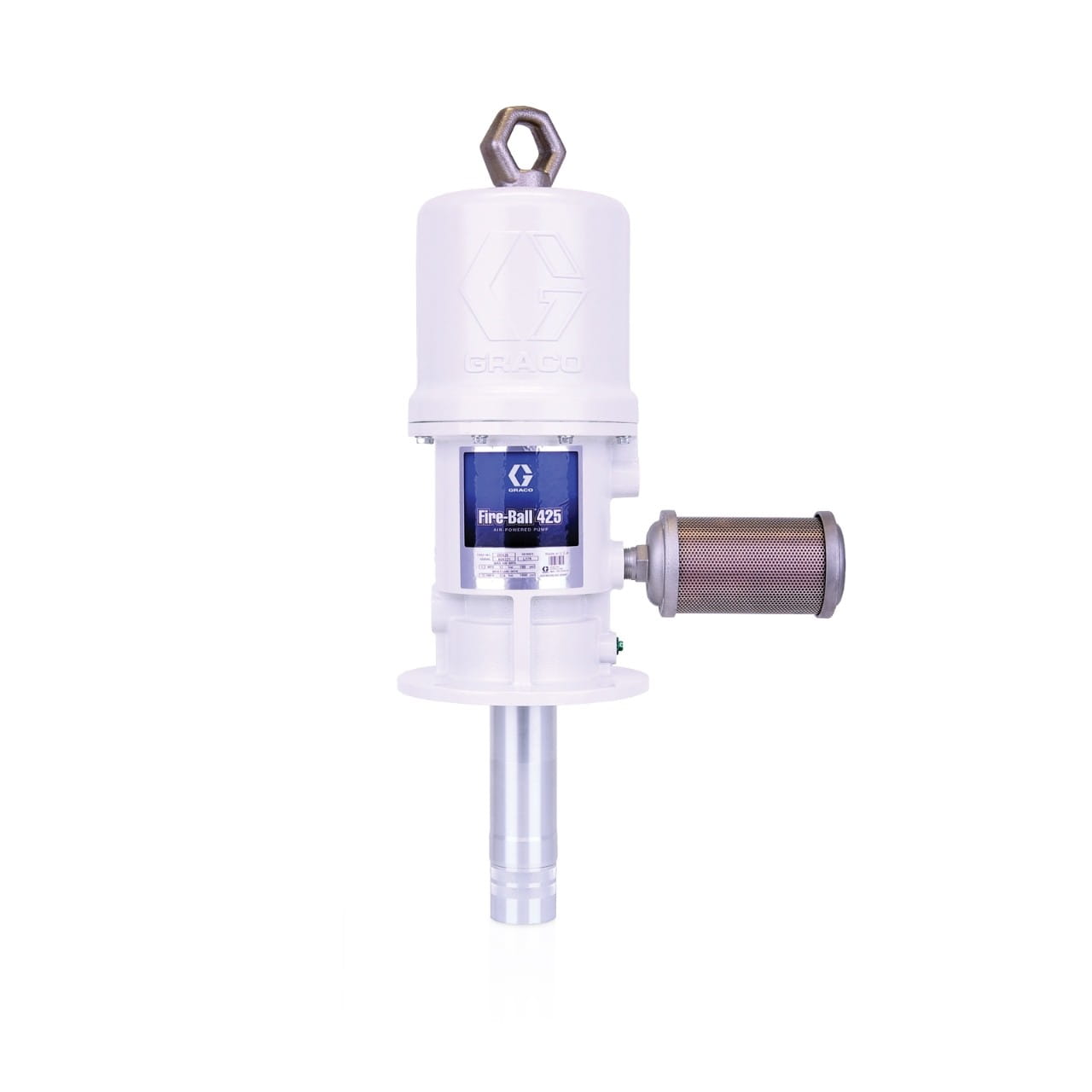

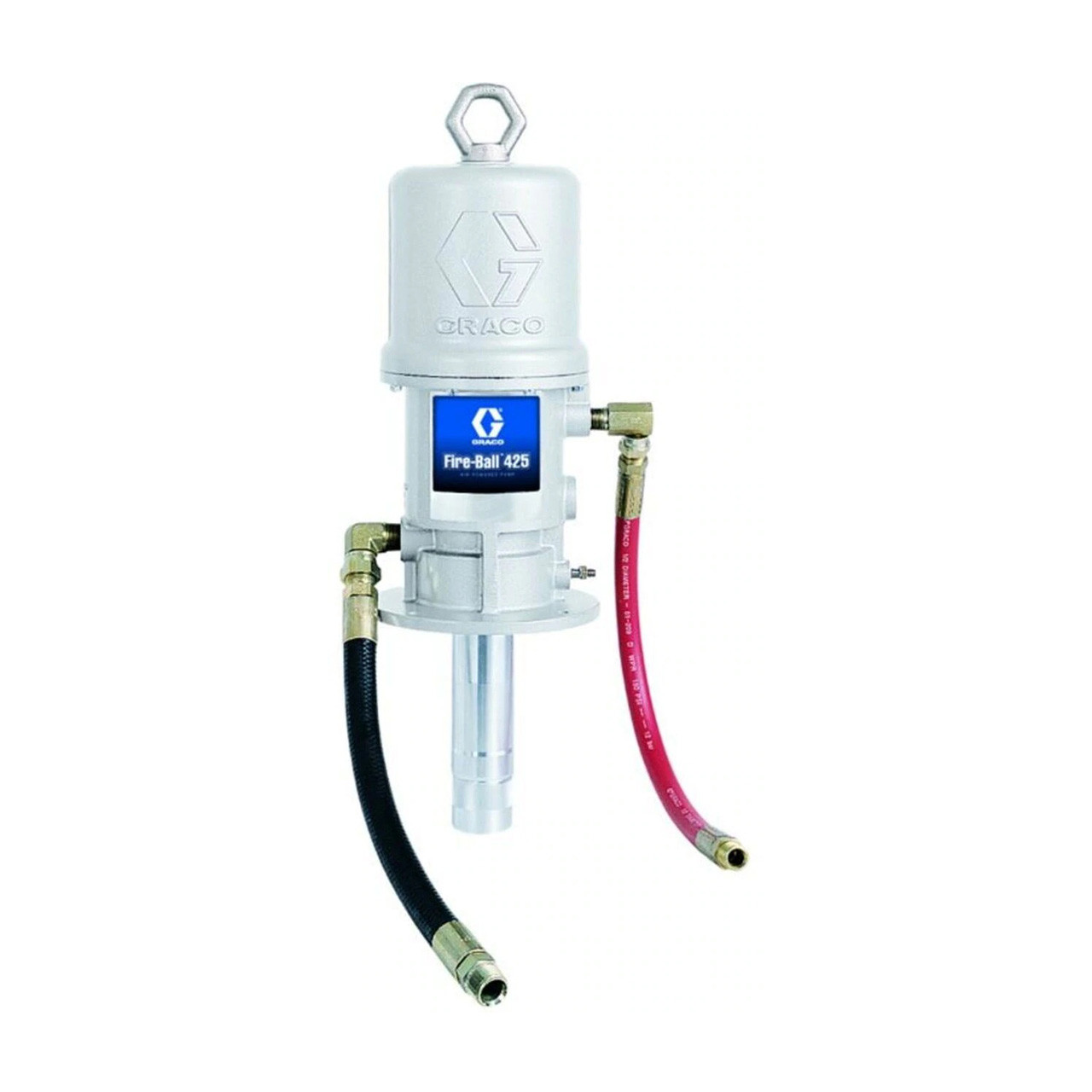

Fire-Ball 425 – air-operated piston pump for oil transfer with a 10:1 ratio. The wall-mounted complete unit is designed for long piping runs and higher output volumes – ideal when multiple dispensing operations occur simultaneously.
The Fire-Ball 425 operates with a 4.25" (107.9 mm) air motor and delivers the performance you need for demanding oil supply and distribution applications. Built for durability, easy to service, and designed for a long service life – especially in workshop and industrial environments with high dispensing frequency.
- 4.25" air motor – strong performance for long lines & high output volumes
- Robust casting – extremely durable die-cast aluminum air motor housing
- Reduced downtime – fewer moving parts in the air motor = fewer repairs
- Excellent sealing – plastic poppet valves provide reliable sealing even with “dirty” air
- Corrosion-resistant – long-lasting components thanks to nitriding, nickel/chrome plating, and stainless steel/aluminum
Details & Information
Product Features
- Air-operated oil pump (piston pump system) for stationary oil supply/distribution
- Ratio: 10:1
- Max. air inlet pressure: 180 psi (approx. 12.4 bar)
- Max. working pressure (fluid): 1800 psi (approx. 124 bar)
- Max. flow rate: 4.1 gpm at 80 double strokes/min (≈ 15.5 l/min)
- Fluids: Oil
- Connections: Air 1/2" NPT (female), Fluid inlet 1-1/2" NPT, Fluid outlet 3/4" NPT
- Inline design (aligned air motor piston & fluid piston) – for extended seal life
- Pump weight: 38 lb (≈ 17.2 kg)
Practical advantage: Stable oil flow even with parallel dispensing points – ensuring high process reliability over long piping distances.
Variants Overview – Configurations & System Setup
The Fire-Ball 425 is available in different configurations (e.g., as a pump only or as a complete system). This product is the wall-mounted complete unit in the 10:1 version – designed for higher volumes and simultaneous dispensing.
| Version | Typical Benefit |
|---|---|
| Wall-mounted complete unit (10:1) | Fixed installation, clean distribution via piping, ideal for multiple dispensing points |
| Pump (without system components) | Flexible integration into existing fluid management systems |
Note: The suitable version depends on factors such as line length, number of simultaneous dispensing points, required flow rate, and installation concept.
Setup & Commissioning (Checklist)
For stable and long-lasting operation of the wall-mounted Fire-Ball 425 system, we recommend:
- Install air preparation (filter/regulator) – protects valves and ensures smooth operation
- Use shut-off valves on air and fluid lines – for safe maintenance/service shutdown
- Properly size piping – minimizes pressure loss in long pipe runs
- Define pressure settings carefully – observe max. 180 psi air / 1800 psi fluid pressure
- Perform venting & priming correctly – ensures consistent flow from startup
Tip: With multiple simultaneous dispensing points, proper line planning (short runs, appropriate diameters) stabilizes flow and reduces pressure drop.
Intended Use / Applications
- Oil supply in workshops & service areas
- Fleet maintenance with multiple dispensing points
- Industrial & manufacturing facilities with high dispensing frequency
- Centralized oil distribution via long piping networks
Product Brochure
For further technical details, measurement ranges, and model differences, please refer to the official Graco Fire-Ball 425 Oil Pump Product Brochure.
| Air inlet size (inches): | 1/2 |
|---|---|
| Air inlet thread type: | NPT |
| Application: | industry |
| Compatible material: | oil |
| Energy type: | Pneumatic |
| Gender of the air inlet thread: | Internal thread |
| Gender of the material inlet thread: | Internal thread |
| Gender of the material outlet thread: | Internal thread |

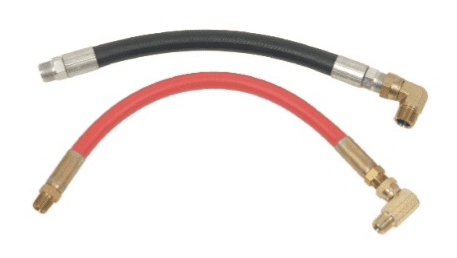

| Includes: | Fireball 425 10:1 pump, hose/fitting kit, fluid hose, air hose, filter regulator, air shut-off valve, fluid shut-off valve, wall mount |
| Material inlet thread type: | NPT |
| Material outlet size (cm): | 1,905 |
| Material outlet size (mm): | 19.05 |
| Material outlet thread type: | NPT |
| Maximum operating pressure (MPa): | 12.4 |
| Maximum operating pressure (kPa): | 12400 |
| Maximum operating pressure (kg/cm²): | 126.56 |
| Maximum operating pressure (psi): | 1800s |
| Model: | Fire Ball |
| Motor type: | Pneumatic |
| Mounting position: | Wall mounting |
| Permissible operating air pressure (psi): | 180 |
| Permissible operating overpressure (psi): | 1800s |
| Permissible operating pressure (bar): | 124 |
| Series: | 425 |
| Size of the material inlet opening (cm): | 3.81 |
| Size of the material inlet opening (inches): | 1-1/2 |
| Size of the material inlet opening (mm): | 38.1 |
| Size of the material outlet opening (inches): | 3/4 |
| Transmission ratio of the pump: | 10:1 |
| Type: | Piston pump system |
| Wetted material: | Steel, polyurethane, aluminum, leather, nitrile |
More information
- Product number: 1036617
- Manufacturer: Graco
- EAN: 00633955648098
- Weight: 27.209 kg
Technical details
Betriebsspezifikationen
| UPC Produkt | 633955648098 |
|---|---|
| Division | LED |
| Price Block | 240 |
| Country of Origin | US |
| Maßeinheit | EA |
Technische Daten
| Fluid Inlet Size (cm) | 3.81 |
|---|---|
| Fluid Inlet Size (in) | 1-1/2 |
| Fluid Inlet Size (mm) | 38.1 |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Size (cm) | 1.905 |
| Fluid Outlet Size (mm) | 19.05 |
| Fluid Outlet Thread Gender | Female |
| Includes | 10:1 Fireball 425 Pump, Hose/Fitting Kit, Fluid Hose, Air Hose, Filter Regulator, Air Shutoff Valve, Fluid Shutoff Valve, Wall-Mount Bracket |
| Maximum Working Pressure (bar) | 124 |
| Maximum Working Pressure (kg/cm²) | 126.56 |
| Maximum Working Pressure (kPa) | 12400 |
| Maximum Working Pressure (psi) | 1800 |
| Series | 425 |
| Air Inlet Size (in) | 1/2 |
| Air Inlet Thread Gender | Female |
| Maximum Air Working Pressure (psi) | 180 |
| Maximum Flow Rate (gpm @ 80 cpm) | 4.1 |
| Pump Weight (lb) | 38 |
| Maximum Working Pressure (MPa) | 12.4 |
| Model | Fire-Ball |
Further manufacturer information
Produktbroschüre
Produkthandbücher
