Manufacturer no.:
244635
Fire-Ball® 425 Series Grease Pump, 75:1, 120 lb (54 kg), 1/2" x 6' - stationary cover-mounted complete unit
€7,562.45*
Ready for shipping in 5-8 Werktage
Also interesting
Product information
The Fire-Ball 425 has a large air motor to deliver the power you need for long pipework and dosing larger quantities. An ideal choice for applications where multiple dosing operations take place simultaneously.
The Fire-Ball 425 pump is the first choice for your most demanding high-volume applications
- Robust casting - Unsurpassed robust air motor housing made from extremely strong cast aluminium
- Fewer repairs - Fewer moving parts in the air motor assembly means less downtime and therefore lower repair costs
- Excellent sealing - Plastic disc valves provide a positive seal even in environments with polluted "dirty" air and ensure a long service life with low maintenance requirements
- Longer seal life - The inline pump design with aligned air motor pistons and material pistons ensures maximum seal life
- Corrosion-resistant - Corrosion resistance and long service life of important components thanks to salt bath nitriding, nickel plating, chrome plating and the use of stainless steel and aluminium
| Air inlet size (inches): | 0.5 |
|---|---|
| Air inlet thread type: | NPT |
| Application: | industry |
| Compatible material: | Fat |
| Energy type: | Pneumatic |
| Gender of the air inlet thread: | Internal thread |
| Gender of the material outlet thread: | Internal thread |

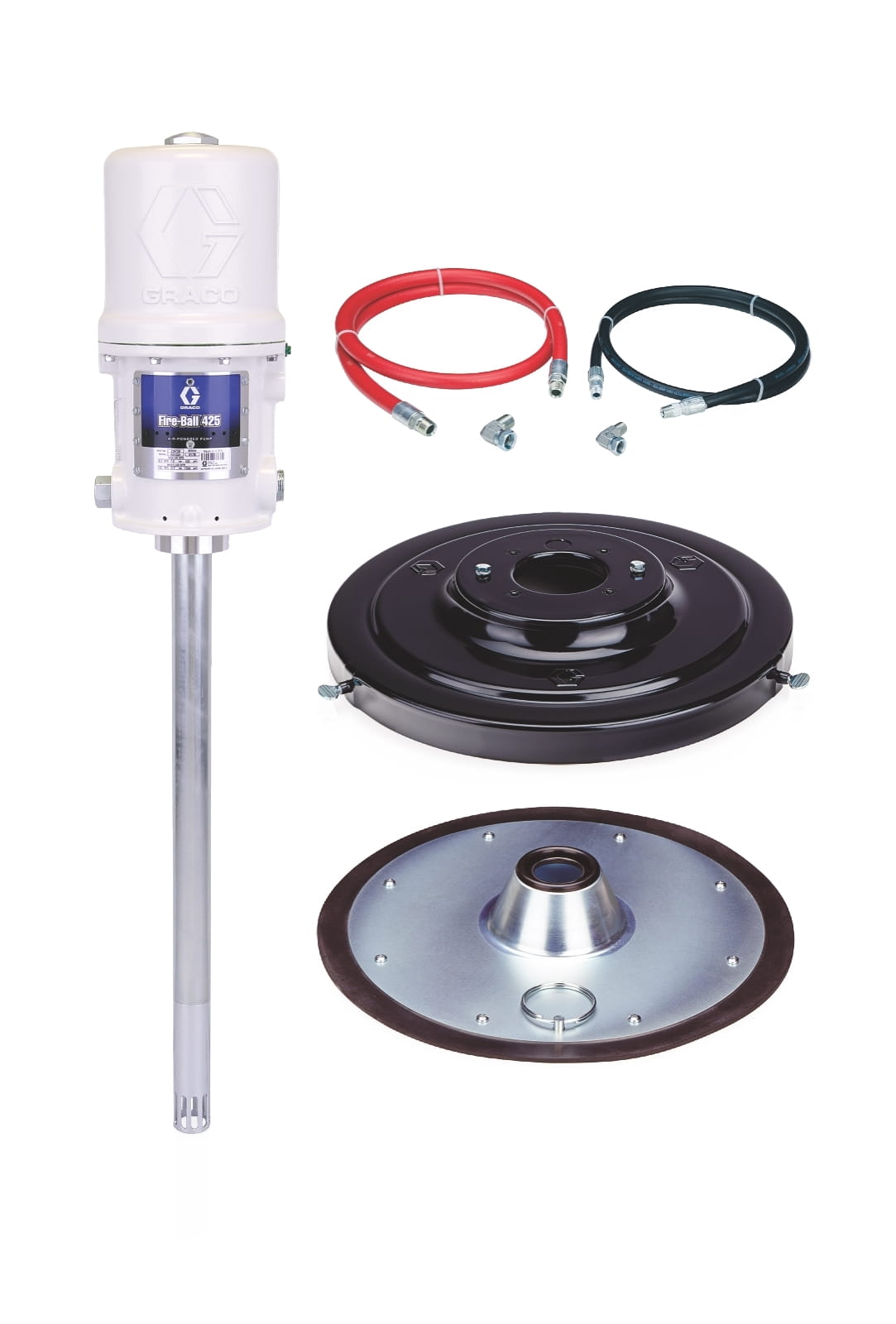

| Includes: | Fireball pump 425, 75:1, hose and fitting set, barrel cover, follower plate |
| Material outlet size (cm): | 9,525 |
| Material outlet size (mm): | 9,525 |
| Material outlet thread type: | NPT |
| Maximum operating air pressure: | 100 |
| Maximum operating pressure (MPa): | 27.6 |
| Maximum operating pressure (kPa): | 27600 |
| Maximum operating pressure (psi): | 4000 |
| Model: | Fire Ball |
| Motor type: | Pneumatic |
| Mounting position: | Lid assembly |
| Permissible operating overpressure (psi): | 7500 |
| Permissible operating pressure (bar): | 276 |
| Series: | 425 |
| Size of the material outlet opening (inches): | 3/8 |
| Transmission ratio of the pump: | 75:1 |
| Type: | Piston pump system |
| Wetted material: | Steel, leather |
More information
- Product number: 1031253
- Manufacturer: Graco
- EAN: 00633955644892
- Weight: 24.53 kg
