Manufacturer no.: 17H823

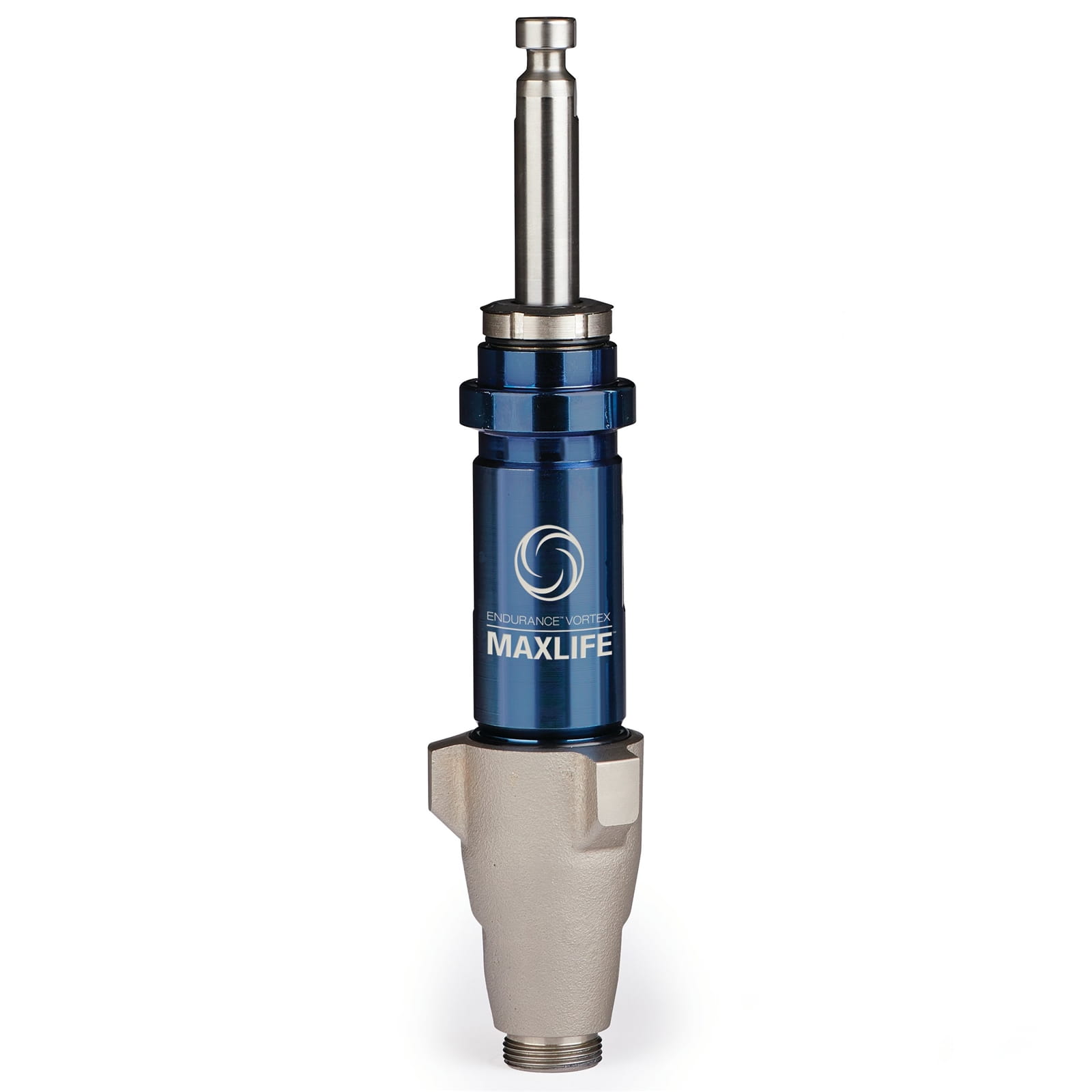

Endurance Vortex MaxLife piston pump

€1,467.27*

% €1,956.36* (25% saved)

Prices include VAT plus shipping costs

€1,233.00*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange

Free shipping within Germany

EU B2B: net prices with valid VAT ID

Also interesting

Product information

The Endurance Vortex MaxLife piston pump offers superior pump life thanks to patented MaxLife technology and ground-breaking Vortex torsion bar technology.

Replacement pump for the Ultra Max II 695/795 sprayers in the ProContractor series and GMAX II 3900 sprayers in the ProContractor series, model year 2019 and newer.

Lasts 6x longer after each seal change thanks to innovative MaxLife technology
Oversized passages for high flow to rotate the rod for even wear
Change pump seal in minutes with the new QuikPak cartridge repair system

For use with:	Ultra Max II 695 ProContractor Series (2019 and newer), Ultra Max II 795 ProContractor Series (2019 and newer), GMAX II 3900 ProContractor Series (2019 and newer)
Gender of the material inlet thread:	External thread
Gender of the material outlet thread:	Internal thread
Material inlet thread type:	NV
Material outlet thread type:	NPT
Maximum operating pressure (psi):	3300
Model:	Endurance
Series:	Vortex MaxLife
Size of the material inlet opening (cm):	333,375
Size of the material inlet opening (inches):	1 5/16
Size of the material outlet opening (inches):	3/8
Type:	Replacement pump

More information

Product number: 1035190
Manufacturer: Graco
EAN: 00755652850427
Weight: 2.506 kg
Length: 230 mm
Width: 90 mm
Height: 90 mm

Technical details

Specifications

Operating specifications

UPC product	755652850427
Division	CED
Price Block	094
Country of Origin	US
Unit	EA
Height	9 CM
Length	23 cm
Width	9 cm
Volume	. 002 m³
Shipping weight	2 .51 kg

Technical

Fluid inlet size (in)	1 5/16
Fluid outlet thread gender	Female
For use with	Ultra Max II 695 ProContractor Series (2019 and newer), Ultra Max II 795 ProContractor Series (2019 and newer), GMAX II 3900 ProContractor Series (2019 and newer )
Fluid inlet size (cm)	3. 3375
Fluid inlet thread gender	Male
Maximum working pressure (psi)	3 3 00
Model	End urance
Series	Vortex MaxLife
