Manufacturer no.:
24W354

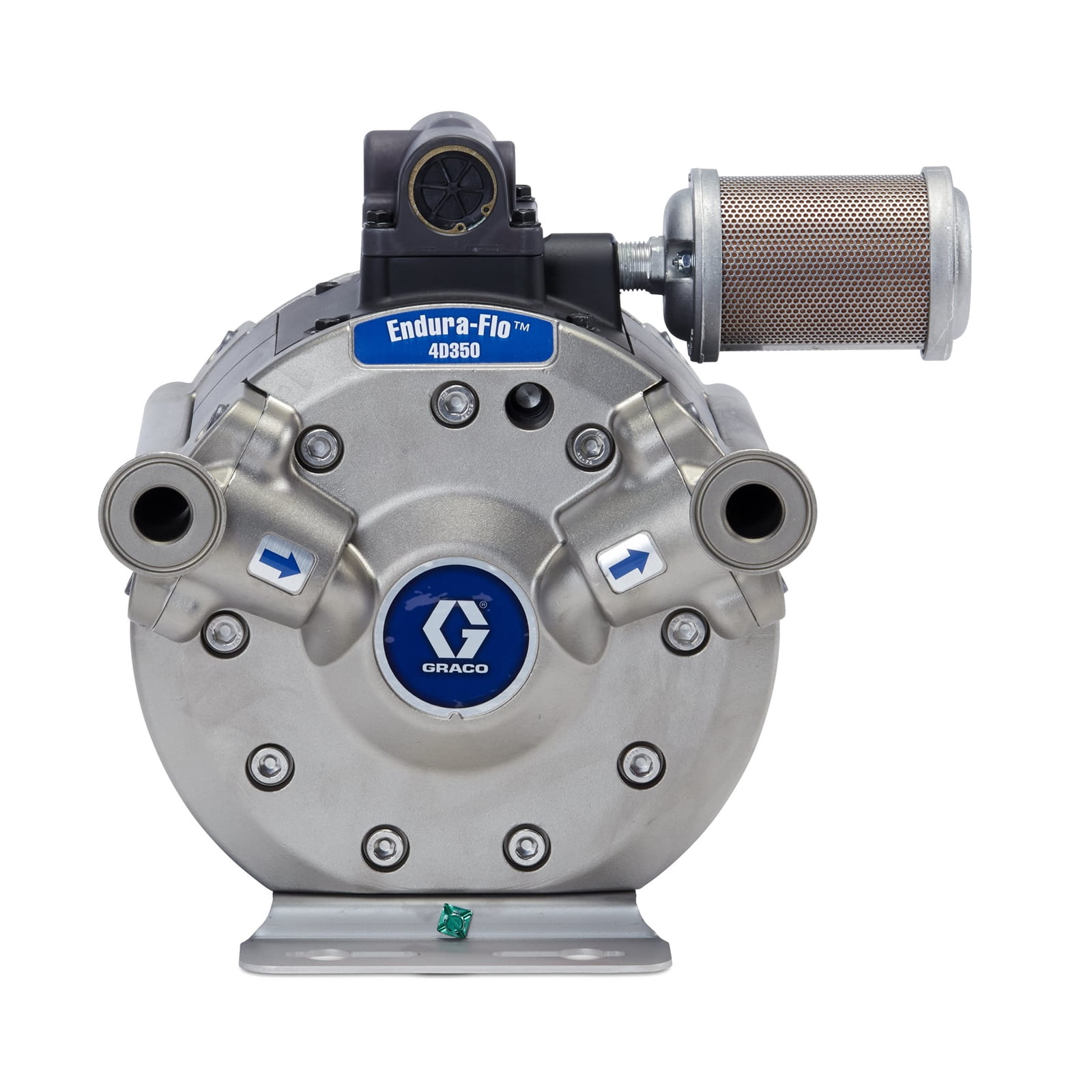

Endura-Flo 4D350, air-operated diaphragm pump 4:1, 350 cm³, Tri-Clamp, DataTrak
€6,176.70*
% €8,823.85* (30% saved)Ready for shipping in 5-8 Werktage
Also interesting
Product information
The Endura-Flo 4D offers the industry's highest 4:1 pressure ratio. This easy-to-install pump is ideal for pumping and feeding liquid materials, reduced colour circulation and piggable colour systems. This pump offers low pulsation and easy replacement for quick colour changes, saving you time and money.
- Endure-Flo diaphragms are particularly durable and can withstand extreme operating conditions
- Easy access to key components allows for quick maintenance during operation
- This pump offers low pulsation and easy replacement for quick colour changes, saving you time and money
- Low amount of solvent for flushing and consistent starting pressure makes it ideal for multiple colour change applications and pigging systems
- Customised mounting options include rotating fluid mounting blocks, brackets and cartridges with spring check valves.
- The DataTrak option prevents dry running and records material consumption
| Air inlet size (inches): | 1/2 |
|---|---|
| Air inlet thread type: | NPT |
| Application: | circulation |
| Compatible material: | High solids content, Xirallic, CARC, metal, stain, varnish, fast set |
| Connection type: | Tri-Clamp |
| Gender of the air inlet thread: | Internal thread |
| Includes: | Tri-clamp fittings, DataTrak |
| Material: | stainless steel |
| Material outlet size (cm): | 2.54 |
| Material outlet size (mm): | 25.4 |
| Maximum air pressure (MPa): | 0.7 |
| Maximum air pressure (bar): | 7 |
| Maximum air pressure (kPa): | 700 |
| Maximum air pressure (psi): | 100 |
| Maximum delivery rate (L/min): | 8/20 |
| Maximum material pressure (MPa): | 2.8 |
| Maximum material pressure (bar): | 28 |
| Maximum material pressure (kPa): | 2800 |
| Maximum material pressure (psi): | 400 |
| Maximum number of cycles (DH/min): | 20 |
| Maximum operating temperature (°C): | 50 |
| Minimum operating temperature (°C): | 0 |
| Model: | Endura Flo |
| Series: | 4D350 |
| Size of the material inlet opening (cm): | 2.54 |
| Size of the material inlet opening (inches): | 1 |
| Size of the material inlet opening (mm): | 25.4 |
| Size of the material outlet opening (inches): | 1 |
| Standards met:: | ATEX, CE |
| Supply voltage: | Air |
| Transmission ratio of the pump: | 4:5 |
| Type: | Pneumatic diaphragm pump |
More information
- Product number: 1033995
- Manufacturer: Graco
- EAN: 00755652276234
- Weight: 35.334 kg
- Length: 340 mm
- Width: 320 mm
- Height: 400 mm
