Manufacturer no.:
25M757

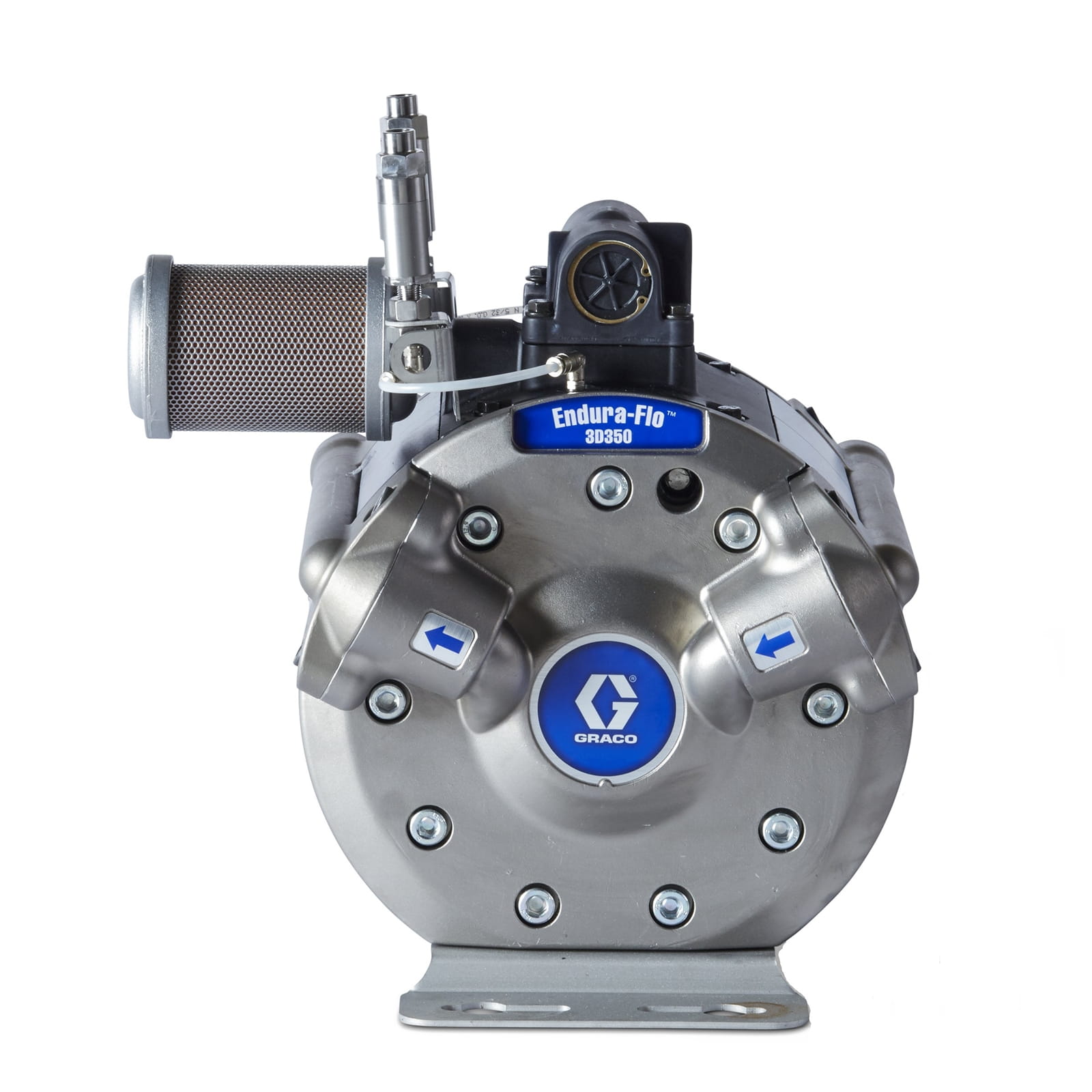

Endura-Flo 3D350, air-operated diaphragm pump 3:1, 350 cm³, Tri-Clamp
€5,883.43*
% €7,241.15* (18.75% saved)Ready for shipping in 5-8 days
Also interesting
Product information
The Endura-Flo 3D is particularly durable. Its insulated air section prevents liquids from entering the air section and the silencer. Ideal for conveying and feeding liquid materials, for reduced paint circulation and piggable paint systems with a longer diaphragm service life.
- Endure-Flo diaphragms are particularly durable and can withstand extreme operating conditions
- Easy access to key components allows for quick maintenance during operation
- This pump offers low pulsation and easy replacement for quick colour changes, saving you time and money
- Low amount of solvent for flushing and consistent starting pressure makes it ideal for multiple colour change applications and pigging systems
- Customised mounting options include swivel fluid mounting blocks, brackets and cartridges with spring check valves.
| Air inlet size (inches): | 1/2 |
|---|---|
| Air inlet thread type: | NPT |
| Application: | circulation |
| Compatible material: | High solids content, Xirallic, CARC, metal, stain, varnish, fast set |
| Connection type: | Tri-Clamp |
| Gender of the air inlet thread: | Internal thread |
| Includes: | Tri-clamp fittings |
| Material: | stainless steel |
| Material outlet size (cm): | 2.54 |
| Material outlet size (mm): | 25.4 |
| Maximum air pressure (MPa): | 0.7 |
| Maximum air pressure (bar): | 7 |
| Maximum air pressure (kPa): | 700 |
| Maximum air pressure (psi): | 100 |
| Maximum delivery rate (L/min): | 8/20 |
| Maximum material pressure (MPa): | 2.1 |
| Maximum material pressure (bar): | 21 |
| Maximum material pressure (kPa): | 2100 |
| Maximum material pressure (psi): | 300 |
| Maximum number of cycles (DH/min): | 20 |
| Maximum operating temperature (°C): | 50 |
| Minimum operating temperature (°C): | 0 |
| Model: | Endura Flo |
| Series: | 3D350 |
| Size of the material inlet opening (cm): | 2.54 |
| Size of the material inlet opening (inches): | 1 |
| Size of the material inlet opening (mm): | 25.4 |
| Size of the material outlet opening (inches): | 1 |
| Standards met:: | ATEX, CE |
| Supply voltage: | Air |
| Transmission ratio of the pump: | 3:1 |
| Type: | Pneumatic diaphragm pump |
| Wetted material: | PTFE, stainless steel, perfluoroelastomer, polyphenylene sulfide |
More information
- Product number: 1032743
- Manufacturer: Graco
- EAN: 00755652773849
- Weight: 34.291 kg
- Length: 320 mm
- Width: 340 mm
- Height: 400 mm
Technical details
Operating specifications
| UPC product | 755652773849 |
|---|---|
| Division | IPD |
| Price Block | 0 77 |
| Country of Origin | US |
| Unit | EA |
| Height | 40 CM |
| Length | 32 CM |
| Width | 34 cm |
| Volume | 0 . 044 m³ |
| Shipping weight | 34.29 KG |
| HTS code (GB) | 8413508090 |
| HTS code (EU) | 8413508090 |
Technical
| Air inlet size (in) | 1/2 |
|---|---|
| Air inlet thread gender | Female |
| Fluid inlet size (cm) | 2. 54 |
| Fluid inlet size (in) | 1 |
| Fluid inlet size (mm) | 25. 4 |
| Fluid outlet size (cm) | 2. 54 |
| Fluid outlet size (mm) | 25. 4 |
| Includes | Tri-Clamp fittings |
| Maximum air pressure (bar) | 7 |
| Maximum air pressure (kPa) | 700 |
| Maximum air pressure (psi) | 100 |
| Maximum cycle rate (CPM) | 20 |
| Maximum flow rate (L/min) | 20. 8 |
| Maximum fluid pressure (bar) | 2 1 |
| Maximum fluid pressure (kPa) | 2 100 |
| Maximum fluid pressure (psi) | 300 |
| Maximum operating temperature (°C) | 50 |
| Maximum operating temperature (°F) | 1 22 |
| Minimum operating temperature (°C) | 0 |
| Minimum operating temperature (°F) | 32 |
| Model | Endura-Flo |
| Overall Height (in) | 14. 39 |
| Series | 3D350 |
| Maximum fluid pressure (MPa) | 2. 1 |
| Maximum air pressure (MPa) | 0. 7 |
