Manufacturer no.: P10ECK

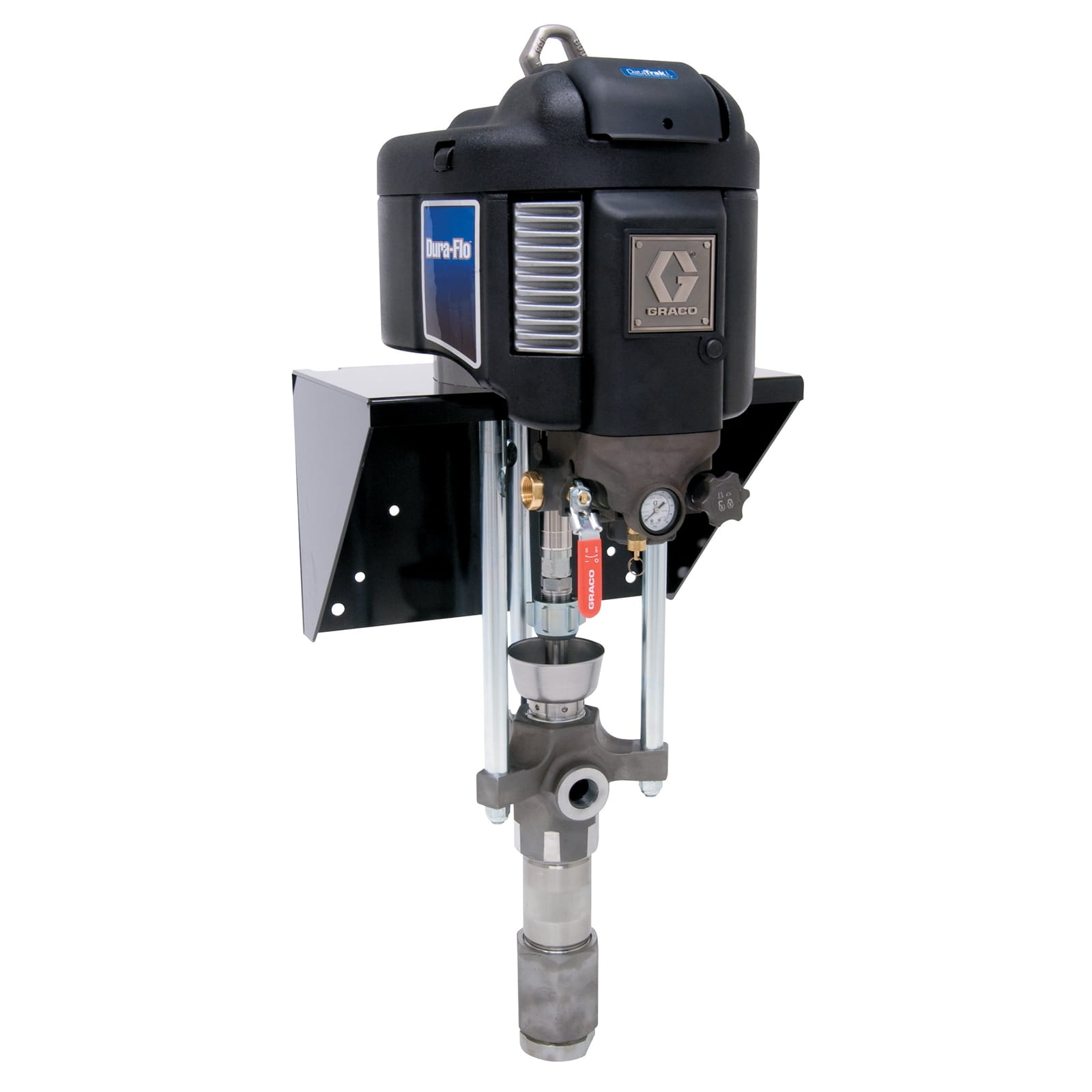

Dura-Flo NXT 2 ball piston pump, 10:1, de-icing exhaust motor, DataTrak, carbon steel, UHMW and leather seals

€11,675.33*

% €14,594.16* (20% saved)

Prices include VAT plus shipping costs

€9,811.20*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange

Free shipping within Germany

EU B2B: net prices with valid VAT ID

Also interesting

Product information

Graco's Dura-Flo pumps with NXT technology provide a consistent and easy to control material delivery. Ideal for feed applications, these heavy-duty pumps feature an NXT motor and can cover an even higher pressure range without sacrificing flow.

The positive displacement, 2-ball piston design provides a consistent and easy to control delivery
High pump pressure and flow to handle a wide range of colours and coatings
Improved maintainability with fewer parts, faster repairs and low total cost of ownership
Monitor and protect your pumps with DataTrak technology

Artikel Art:	Kolbenpumpe
Dichtung Typ:	Leder, UHMWPE
Verhältnis:	10:1

More information

Product number: 1035689
Manufacturer: Graco
EAN: 00633955225497
Weight: 73 kg
Length: 1500 mm
Width: 420 mm
Height: 480 mm

Technical details

Specifications

Operating specifications

UPC product	633955225497
Division	IPD
Price Block	180
Country of Origin	US
Unit	EA
Height	48 CM
Length	150 CM
Width	42 cm
Volume	. 302 m³
Shipping weight	73 KG

Technical

Fluid outlet size (mm)	38. 1
Fluid outlet thread gender	Female
Includes	Carbon steel pump, de-icing exhaust motor, DataTrak monitor, UHMW/leather pack ings
Maximum Air Inlet Pressure (bar)	6. 9
Maximum air inlet pressure (kPa)	690
Maximum air inlet pressure (psi)	100
Maximum continuous cycle rate (CPM)	60
Maximum flow rate (L/min)	65. 87
Maximum operating temperature (°C)	66
Maximum operating temperature (°F)	1 5 0
Maximum working pressure (bar)	82
Maximum working pressure (kPa)	8200
Maximum working pressure (psi)	1190
Model	D ura-Flo
Mount Type	Wall or Stand Mount
Portable	Non-portable
Series	2-Ball
Maximum working pressure (MPa)	8. 2
