Manufacturer no.:
L430SS

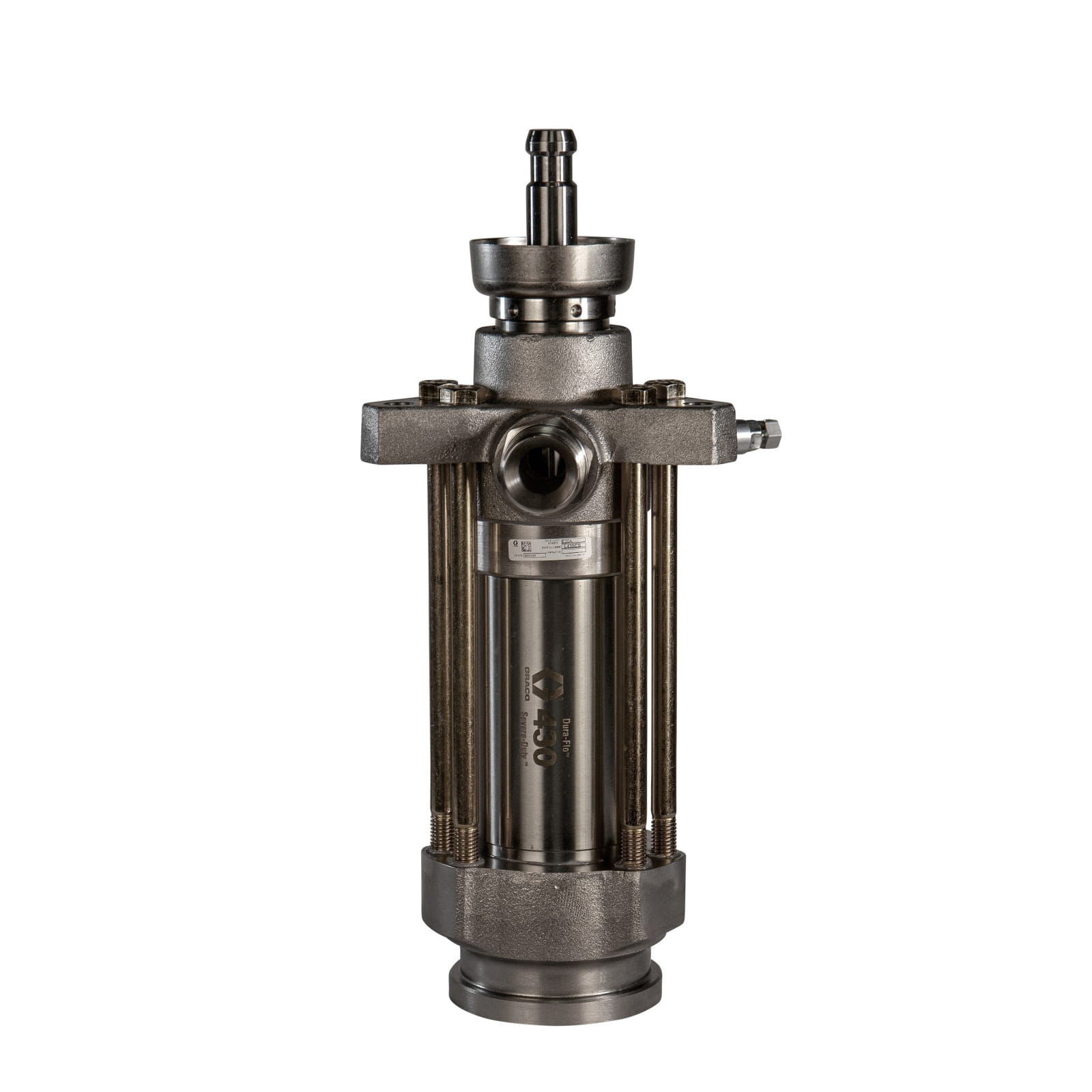

Dura-Flo 1800 (430 cm³) displacement pump, stainless steel, 3 UHMWPE/2 PTFE seals
€8,554.29*
% €10,967.04* (22% saved)Prices include VAT plus shipping costs
€7,188.48*
Price excl. VAT
Ready for shipping in 5-8 days
Also interesting
Product information
With scoop piston, rod and cylinder.
| Application: | Bonding, sealing, sealing, potting, encapsulation, injection molding, spraying, liquid conveying, unloading, underfilling |
|---|---|
| Compatible material: | Engine oil, transmission oil, automatic transmission oil, oil |
| For use with: | Dura-Flo oil pumps |
| Gender of the material inlet thread: | Internal thread |
| Gender of the material outlet thread: | External thread |
| Material inlet thread type: | NPT |
| Material outlet thread type: | NPT |
| Max. Pump speed (CPM): | 60 |
| Maximum operating pressure (psi): | 4700 |
| Maximum output (cm³): | 430 |
| Model: | Dura Flo |
| Size of the material inlet opening (cm): | 05.08 |
| Size of the material inlet opening (inches): | 2 |
| Size of the material outlet opening (inches): | 1-1/2 |
| Type: | lower pump |
| Wetted parts: | Stainless steel, tungsten carbide, acetal, PTFE |
More information
- Product number: 1038349
- Manufacturer: Graco
- EAN: 00633955377936
- Weight: 21.603 kg
- Length: 700 mm
- Width: 330 mm
- Height: 290 mm
Technical details
Operating specifications
| UPC product | 633955377936 |
|---|---|
| Division | IPD |
| Price Block | 223 |
| Country of Origin | US |
| Unit | EA |
| Height | 29 CM |
| Length | 70 cm |
| Width | 33 cm |
| Volume | . 067 m³ |
| Shipping weight | 35 KG |
Technical
| Maximum pump speed (CPM) | 60 |
|---|---|
| Fluid inlet size (in) | 2 |
| Fluid outlet thread gender | Male |
| For use with | Dura-Flo oil pumps |
| Stroke Length (in) | 4. 75 |
| Fluid inlet size (cm) | 5. 08 |
| Fluid inlet thread gender | Female |
| Maximum operating temperature (°F) | 150 |
| Maximum output (cm³) | 430 |
| Maximum Working Pressure (psi) | 4 7 00 |
| Model | D ura-Flo |
Further manufacturer information
Produktbroschüre
Produkthandbücher
- 312589R, Handbuch, Dura-Flo-Unterpumpen, Anweisungen-Teile (Deutsch)
- 312589R, Handbuch, Dura-Flo-Unterpumpen, Anweisungen-Teile (English)
- 312589R, Handbuch, Dura-Flo-Unterpumpen, Anweisungen-Teile (Français)
- 312589R, Handbuch, Dura-Flo-Unterpumpen, Anweisungen-Teile (Español)
- 312589R, Handbuch, Dura-Flo-Unterpumpen, Anweisungen-Teile (Italiano)
- 312589R, Handbuch, Dura-Flo-Unterpumpen, Anweisungen-Teile (中文)
- 312589R, Handbuch, Dura-Flo-Unterpumpen, Anweisungen-Teile (日本語)
- 312589R, Handbuch, Dura-Flo-Unterpumpen, Anweisungen-Teile (한국어)
- 312589R, Handbuch, Dura-Flo-Unterpumpen, Anweisungen-Teile (Nederlands)
- 312589R, Handbuch, Dura-Flo-Unterpumpen, Anweisungen-Teile (Suomi)
- 312589R, Handbuch, Dura-Flo-Unterpumpen, Anweisungen-Teile (Svenska)
Verkaufsliteratur
- 338921DE Graco® Versorgungssysteme (Deutsch)
- 338921DE Graco® Versorgungssysteme (中文)
- 338921DE Graco® Versorgungssysteme (Nederlands)
- 338921DE Graco® Versorgungssysteme (Français)
- 338921DE Graco® Versorgungssysteme (Italiano)
- 338921DE Graco® Versorgungssysteme (Polski)
- 338921DE Graco® Versorgungssysteme (русский)
- 338921DE Graco® Versorgungssysteme (Español)
- 338921DE Graco® Versorgungssysteme (Svenska)
- 338921DE Graco® Versorgungssysteme (English (UK))
- 338921DE Graco® Versorgungssysteme (日本語)
Zertifizierungen
