Manufacturer no.:
237129

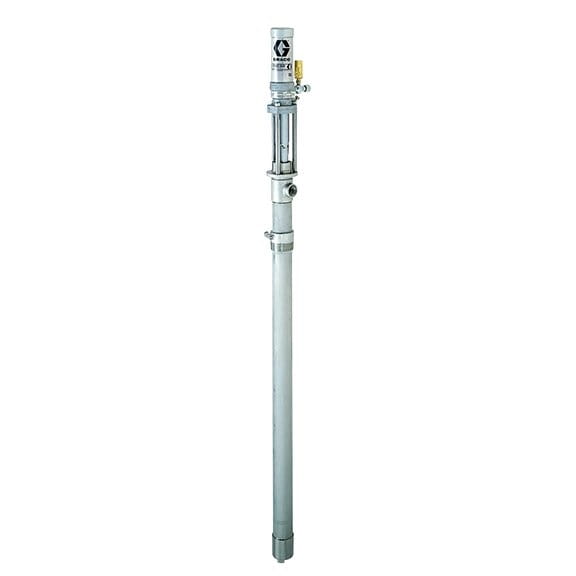

Compressed air-operated Fast-Flo piston drum pump made of stainless steel, 1:1 ratio and T-packing
€3,322.33*
% €3,543.82* (6.25% saved)Ready for shipping in 5-8 days
Also interesting
Product information
Fast Flo 1:1 pumps are designed for inlet air pressures up to 1.2 MPa (12 bar, 180 psi) and deliver a consistent, reliable flow. Long barrel models or short models are available for barrel delivery or wall-mounted suction feed. Ideal for low viscosity materials with shallow testing capabilities.
Maximum flow rate of up to 19 litres/min and maximum material operating pressure of up to 12 bar (180 psi). Ideal for low viscosity materials.
- Air-powered for high reliability and low cost
- Delivers up to 19 litres/min
- Available in stainless steel or carbon steel
- UL options available with NFPA installation
| Air inlet size (inches): | 1/4 |
|---|---|
| Air inlet thread type: | NPT |
| Application: | industry |
| Compatible drum height (inch): | 34.6 |
| Compatible material: | Antifreeze, asphalt, windshield washer fluid, engine oil, used oil, hydraulic fluid, oil, ink |
| Energy type: | Pneumatic |
| Gender of the air inlet thread: | Internal thread |
| Gender of the material outlet thread: | Internal thread |
| Material: | stainless steel |
| Material outlet size (mm): | 19.05 |
| Material outlet thread type: | NPT |
| Maximum air supply pressure (bar): | 12.41 |
| Maximum air supply pressure (kPa): | 1241 |
| Maximum continuous double stroke rate (DH/min): | 100 |
| Maximum delivery rate (L/min): | 15.1 |
| Maximum inlet air pressure (psi): | 180 |
| Maximum intermittent double stroke rate (CPM): | 4 |
| Maximum operating pressure (MPa): | 1.2 |
| Maximum operating pressure (kPa): | 1240 |
| Maximum operating pressure (psi): | 180 |
| Model: | Almost Flo |
| Package options: | None |
| Permissible operating pressure (bar): | 12.4 |
| Portable: | Not portable |
| Sealing material: | PTFE |
| Size of the air inlet (mm): | 6.35 |
| Size of the material outlet opening (inches): | 3/4 |
| Transmission ratio of the pump: | 1:1 |
| Type: | Piston transfer pump |
More information
- Product number: 1035532
- Manufacturer: Graco
- EAN: 00633955558250
- Weight: 8.37 kg
- Length: 1450 mm
- Width: 100 mm
- Height: 100 mm
Technical details
Operating specifications
| UPC product | 633955558250 |
|---|---|
| Division | PRO |
| Price Block | 1 79 |
| Country of Origin | CN |
| Unit | EA |
| Height | 10 CM |
| Length | 145 CM |
| Width | 10 cm |
| Volume | . 015 m³ |
| Shipping weight | 8 .37 KG |
Technical
| Air inlet size (in) | 1/4 |
|---|---|
| Air inlet size (mm) | 6. 35 |
| Air inlet thread gender | Female |
| Fluid outlet size (mm) | 19. 05 |
| Fluid outlet thread gender | Female |
| Maximum air inlet pressure (bar) | 12. 41 |
| Maximum air inlet pressure (kPa) | 1 2 41 |
| Maximum air inlet pressure (psi) | 180 |
| Maximum continuous cycle rate (CPM) | 100 |
| Maximum flow rate (L/min) | 15. 1 |
| Maximum intermittent cycle rate (CPM) | 4 |
| Maximum working pressure (bar) | 12. 4 |
| Maximum working pressure (kPa) | 1 2 40 |
| Maximum working pressure (psi) | 180 |
| Minimum flow rate (GPM) | 180 |
| Model | Fast-Flo |
| Portable | Non-portable |
| Maximum working pressure (MPa) | 1. 2 |
| Compatible drum height (in) | 34. 6 |
