Manufacturer no.: 24A769

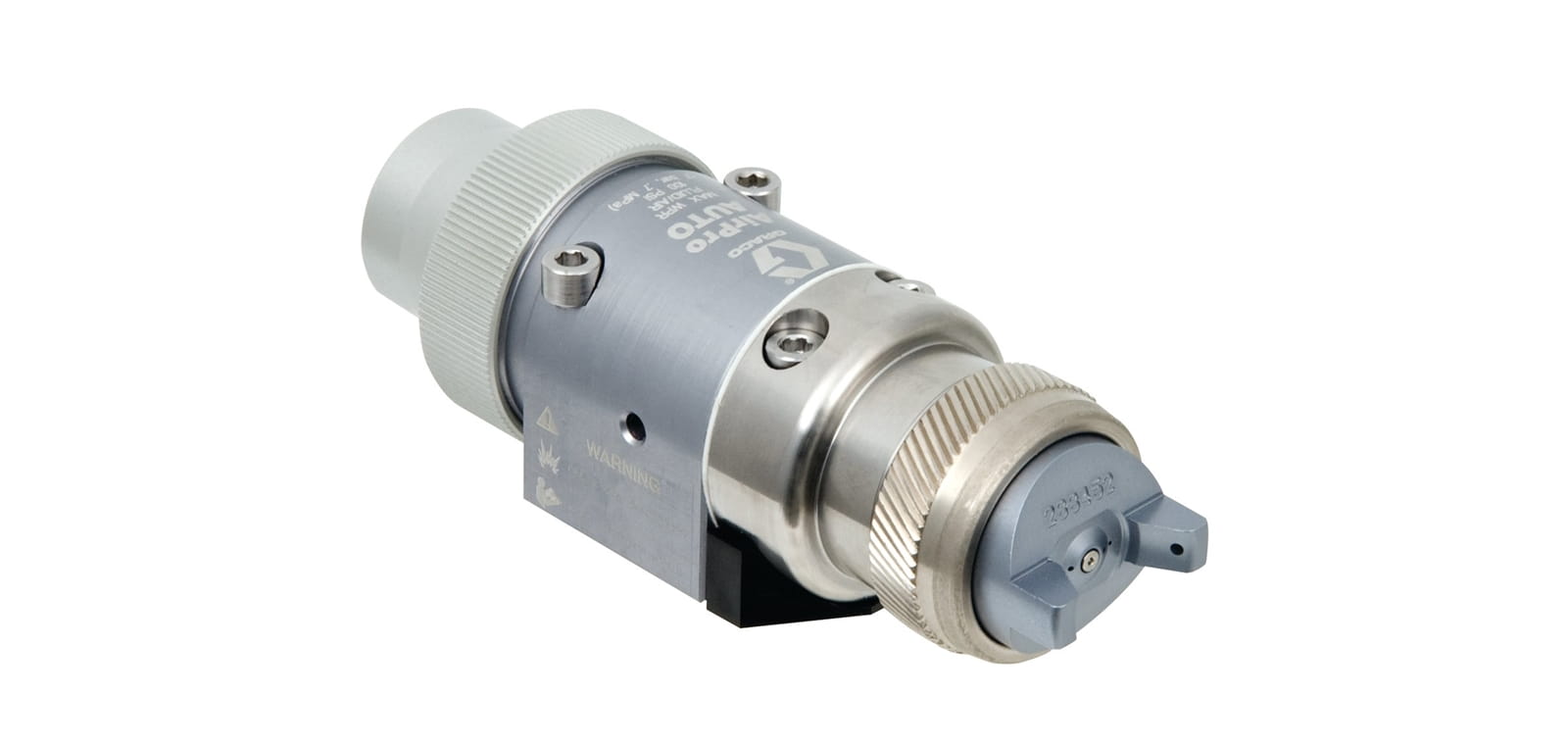

AirPro automatic air spray gun, conventional, 1 mm nozzle (0.040 inch), for wood applications

€841.81*

% €1,247.12* (32.5% saved)

€707.40*

Price excl. VAT

Ready for shipping in 5-8 days

EU B2B: net prices with valid VAT ID

Also interesting

Product information

Graco's automatic applicators are lightweight, compact and provide uniform spray patterns for high quality coatings.

Gun models for wood applications are designed for particularly efficient spraying performance
Models with control knob for precise material adjustment.
Stainless steel construction for the toughest coating materials, from acids to waterborne materials
Air cap ensures quick and precise positioning in vertical and horizontal positions
Lightweight and compact rounded gun design

Artikel Art:	Pistole
Düsen Größe:	1,0 mm

More information

Technical details

Bleed type	B leeder
Component Type	Single Component
Feed Type	Pressure Feed
Fluid Orifice Size (cm)	0.1 0
Fluid orifice size (mm)	1
Gun Weight (g)	680
Gun weight (kg)	0. 68
Gun weight (lb)	1. 5
Includes	Air cap with pin, air cap without pin, piston cap, manifolds, nozzle, needle tip, needle assembly, needle/nozzle kit
Maximum air pressure (bar)	7
Maximum air pressure (kPa)	700
Maximum air pressure (psi)	100
Maximum flow rate @ PSI (oz/min)	14
Maximum fluid pressure (bar)	7
Maximum fluid pressure (kPa)	700
Maximum fluid pressure (psi)	100
Maximum fluid temperature (°C)	4 9
Maximum fluid temperature (°F)	120
Minimum flow rate @ PSI (oz/min)	8
Model	Air Pro
Overall Height (cm)	3
Overall height (in)	1
Overall height (mm)	25
Overall Length (cm)	13
Overall Length (in)	5. 3
Overall Length (mm)	135
Overall width (cm)	3. 8
Overall width (in)	1
Overall width (mm)	25
Purge Method	Air
Series	Auto
Technology Type	Conventional
Maximum fluid pressure (MPa)	0. 7
Maximum air pressure (MPa)	0. 7
Maximum air inlet pressure (bar)	7
Maximum air inlet pressure (kPa)	700
Maximum air inlet pressure (psi)	100
Maximum air inlet pressure (MPa)	0. 7
