Manufacturer no.:
24K240

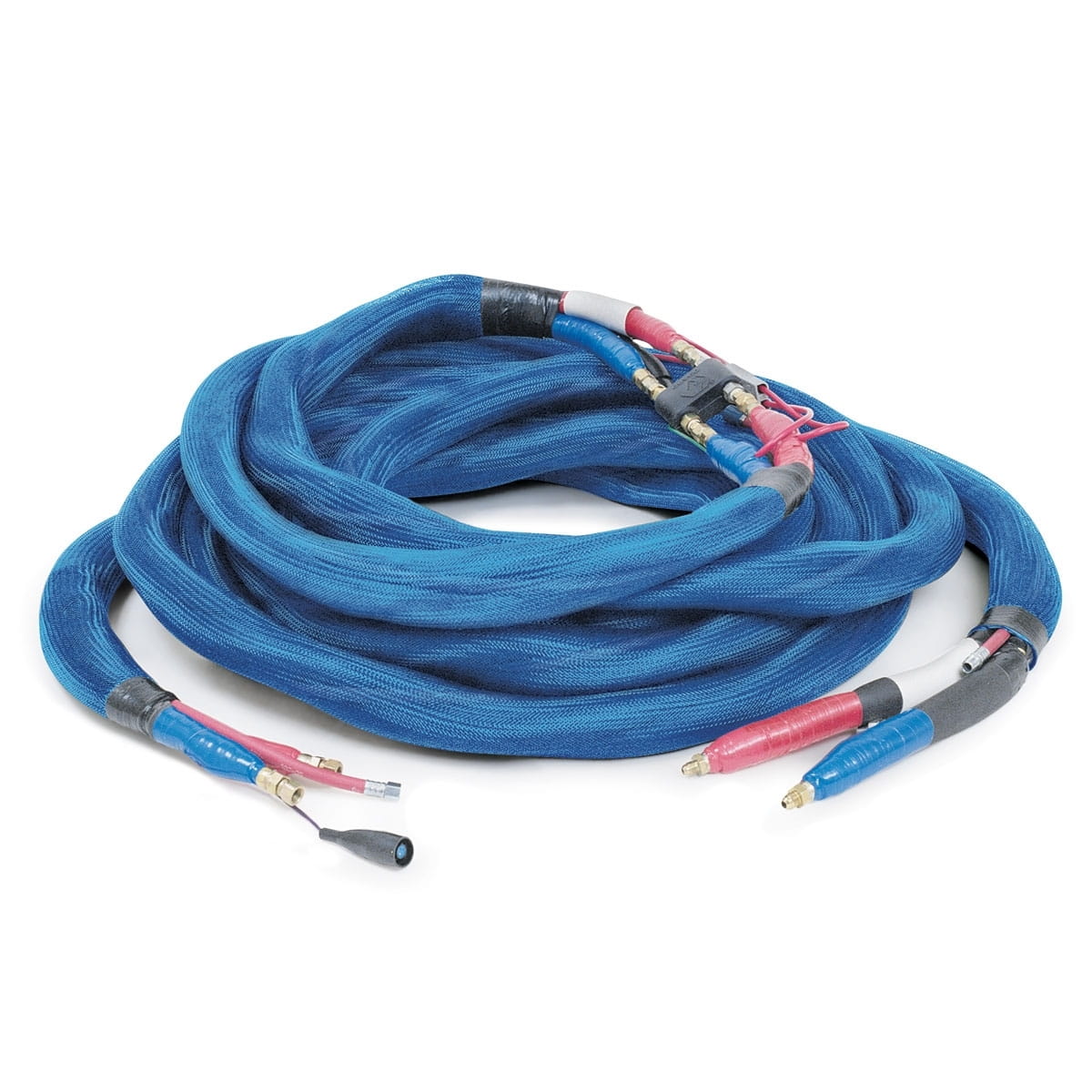

15 m (50') of low-pressure heated hose with anti-abrasion protection and 9.5 mm (3/8") internal diameter
€3,020.22*
Ready for shipping in 5-8 days
Also interesting
Product information
Graco heated hoses are designed specifically for use with Reactor equipment. Hoses are a critical component for the entire system, so it is important to achieve precise and consistent heating for the best possible application.
For Reactor dispensers
The new multi-core copper heating element has significantly improved hose quality:
- Offers 10x* the lifespan compared to previous flat copper heaters
- Long-term, even heating without "hot spots"
- Backwards compatible with existing Reactor heated hoses
- Copper heated hoses are designed specifically for use with Graco dispensers
- Coated with a proprietary butyl layer to protect against moisture-sensitive isocyanates.
- Hoses are fitted with foam insulation to retain heat.
- Different fitting sizes on the hoses for isocyanates and resin prevent the incorrect hoses from being connected accidentally
- Hoses utilise customised fitting set to electrically connect the hoses without the need to run copper under the fittings
- Coiled whip hose with braided copper wires for added flexibility and longer service life
Resistance Temperature Detector (RTD)
- Graco has applied RTD technology to its latest state-of-the-art control developments in the Reactor 2 and Integrated Reactor. RTDs provide the highest precision and best reproducibility of fluid temperature in the hose from one day to the next. Thanks to RTD technology, the device can automatically shut down if a sensor has been damaged, minimising the loss of time and material.
| For use with: | Multi-component dosing devices |
|---|---|
| Hose heater type: | Externally heated |
| Hose length (m): | 15.2 |
| Inner diameter (inch): | 3/8 |
| Inner diameter hose (inch): | 3/8 |
| Inner diameter hose (mm): | 9,525 |
| Maximum operating pressure (MPa): | 13.8 |
| Maximum operating pressure (kPa): | 13800 |
| Maximum operating pressure (psi): | 2000 |
| Model: | Reactor 2 |
| Permissible operating pressure (bar): | 138 |
| Series: | Mesh Scuff |
| Type: | Heated hose |
More information
- Product number: 1031582
- Manufacturer: Graco
- EAN: 00633955651401
- Weight: 20.3 kg
- Length: 650 mm
- Width: 650 mm
- Height: 250 mm
Technical details
Operating specifications
| UPC product | 633955651401 |
|---|---|
| Division | CED |
| Price Block | 0 46 |
| Country of Origin | US |
| Unit | EA |
| Height | 25 CM |
| Length | 65 CM |
| Width | 65 cm |
| Volume | . 106 m³ |
| Shipping weight | 20.3 KG |
| HTS code (EU) | 39 1 7390099 |
| HTS code (GB) | 39 1 7390099 |
Technical
| For Use With | Plural Component Proportioners |
|---|---|
| Hose Inside Diameter (mm) | 9. 525 |
| Maximum working pressure (bar) | 138 |
| Maximum working pressure (kPa) | 1 3 800 |
| Maximum working pressure (psi) | 2 0 00 |
| Maximum working pressure (MPa) | 13. 8 |
| Model | Reactor 2 |
| Series | Mesh Scuff |
| Trousers Heating type | External Heated |
| Scuff Guard Type | Mesh Scuff |
| Compatible Sprayer | Reactor 2 |
| Temperature Wire | RTD |
