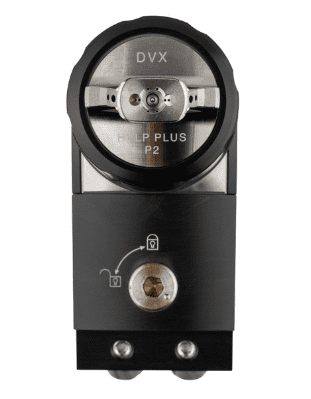

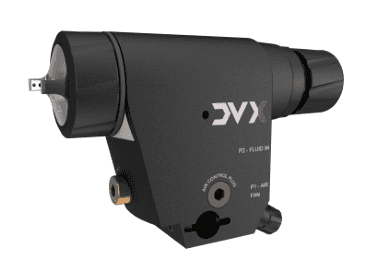

DVXA RATCHET BACK END AUTO GUN KIT
€1,447.04*
% €1,808.00* (19.96% saved)Prices include VAT plus shipping costs
Price excl. VAT
Binks DVX Automatic Spray Gun (DVXA) – reproducible spray pattern, high transfer efficiency, reduced consumption
DVXA Ratchet Back End Auto Gun Kit – automatic spray gun of the DVX series with needle stroke adjustment screw (ratchet back end) for fast, precise process adjustments and maintenance-friendly handling in automated systems.
The DVXA combines an optimized front-end architecture with controlled turbulence management between air and material. This results in very uniform spray patterns with high transfer efficiency – for less overspray and reduced material consumption. At the same time, a air-saving operation is possible (spraying from approx. 2 bar, depending on air cap/material).
- DVXA: reproducible results thanks to indexed air cap – ideal for series and line processes
- High transfer efficiency – less overspray, lower material consumption
- Air-saving process – spraying possible from approx. 2 bar (application-dependent)
- Flexible material setup with three air caps for different materials
- Fast adjustment thanks to ratchet back end (needle stroke) – quick changes without lengthy turning
- Reduced setup time thanks to cam-lock adapter & practically positioned air/material connections
Details & Information
Product Features
- New turbulence control maximizes efficiency, precision, and spray pattern quality
- Indexed air cap for reproducible spray patterns
- Large, uniform spray pattern for fewer spray passes
- Spraying possible from approx. 2 bar (reduced air consumption)
- Operation at low and high inlet air pressure
- Three air caps for handling different materials
- Quick-release air cap with indexing – fast change, more consistent spraying

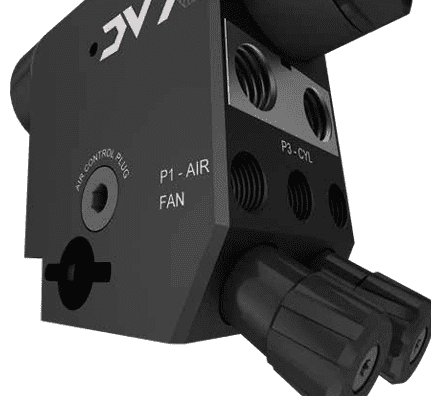

- New adapter design with cam-lock quick coupling and practically arranged air/material inlets
- Smooth housing surfaces – faster and easier to clean
- Improved material-contact areas – less build-up, better flushing
- Rear gun section (auto): simplified access/maintenance for reduced downtime
- Ratchet back end – fewer turns for adjustment, faster handling
- Easy to install, clean, maintain, and repair – fewer parts/part numbers
Variant Overview – Nozzle Size & Design
Selectable by nozzle size (standard or hardened) and by rear section design (fixed or flexible – ratchet back end).
| Nozzle Size (mm) | Standard | Hardened |
|---|---|---|
| 0.8 | ✓ | ✓ |
| 1.0 | ✓ | ✓ |
| 1.2 | ✓ | ✓ |
| 1.4 | ✓ | ✓ |
| 1.6 | ✓ | ✓ |
| 1.7 | ✓ | ✓ |
| 1.8 | ✓ | ✓ |
| 2.0 | ✓ | ✓ |
Applications / Use Cases
- Automated coating processes in industry & manufacturing
- Series/line coating with reproducible spray patterns
- Material- and air-optimized processes (depending on air cap/material setup)
Product Flyer
Further details can be found in the official Binks DVXA Automatic product flyer .
- Product number: 2020184
- Manufacturer: Binks
- EAN: 5021845125371
- Weight: 0.95 kg
Technical details
| Product type | Automatic spray gun (DVXA) |
| Spraying technology | Air spray gun (DVX series) |
| Spraying operation | Spraying possible from approx. 2 bar (air-saving) |
| Air inlet pressure | Operation possible at low and high air inlet pressure |
| Air caps | Three compressed air caps for different materials |
| Air cap alignment | Indexing for reproducible spray pattern |
| Adapters/connections | Cam-lock quick-release fastener & practical air/material inlets |
| Maintenance | Fewer parts/part numbers – easy to clean, maintain and repair |
Note: The optimum setting depends on the material, air cap and process requirements.
