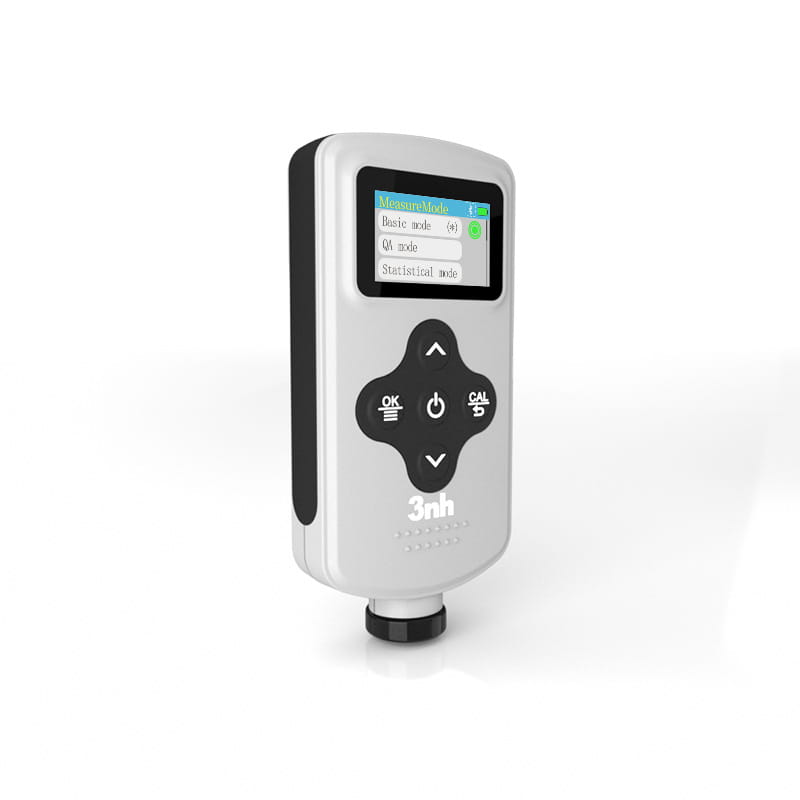

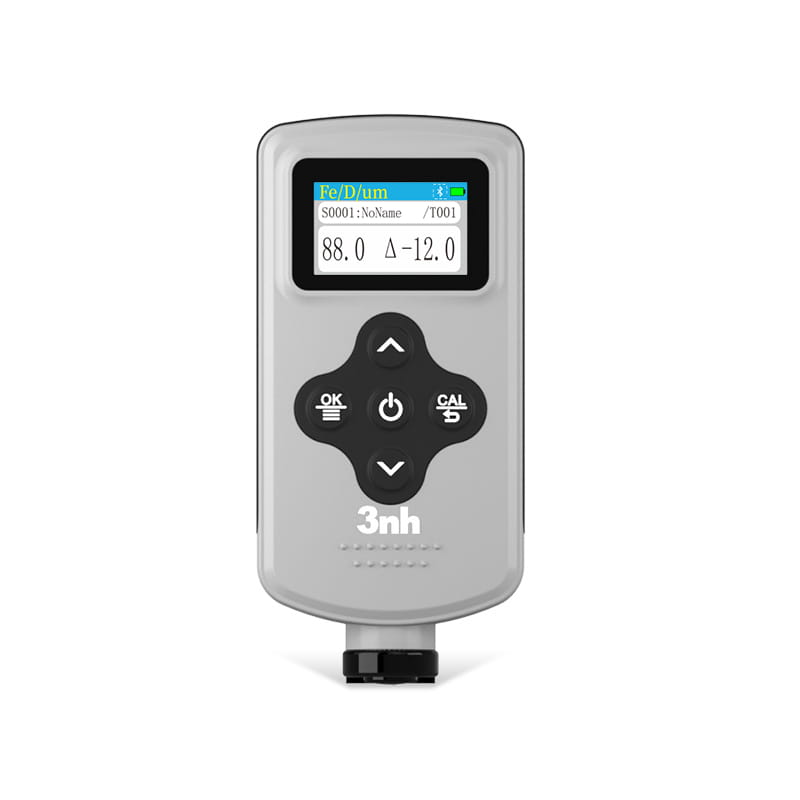

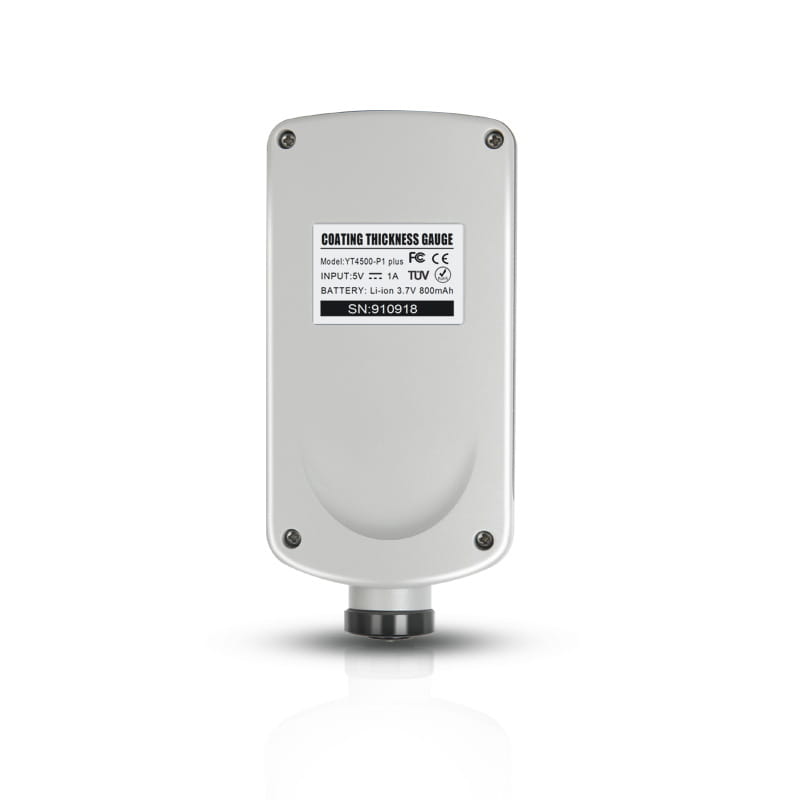

3nh YT6200 Touchscreen Triangular Gloss Meter – Coating Thickness Measurement: Combination Instrument

The YT6200, YT6300 and YT6500 three-angle gloss meters with touchscreens are professional dual-purpose instruments designed for fast and accurate non-destructive coating thickness measurement on metallic substrates. The instruments combine magnetic induction and eddy current measurement in an integrated sensor system, thereby enabling reliable measurements on both magnetic and non-magnetic materials.

Thanks to automatic substrate detection, the instruments are ideal for measuring paints, powder coatings, electroplated layers, galvanised coatings, chrome layers, as well as protective and insulating coatings on steel, aluminium, stainless steel, copper and other metals.

The models differ mainly in their maximum measurement range:

YT6200: 0–2000 µm
YT6300: 0–3000 µm
YT6500: 0–5000 µm

Dual-use measurement method

The integrated Fe/NFe probe automatically detects the respective substrate and independently selects the appropriate measurement method:

Magnetic induction for magnetic substrates such as steel
Eddy current method for non-magnetic metals such as aluminium or stainless steel

This enables fast, convenient and precise measurement without the need for manual switching.

Precise coating thickness control

The YT series enables highly accurate measurements of a wide variety of coatings:

Paints
Powder coatings
Galvanised coatings
Electroplated layers
Chrome and copper layers
Protective coatings
Insulating coatings

High repeatability and multiple calibration methods ensure stable and reproducible measurement results, even in demanding industrial applications.

Functions and features

The devices feature advanced functions for professional quality control:

Automatic material recognition
Non-destructive measurement
Wide measuring range up to 5000 µm
IPS colour display
Multiple measurement and statistical modes
Zero-point, single-point and multi-point calibration
Fast measurement speed
Internal data memory
Compact and robust design

Depending on the model, the devices also support USB and Bluetooth communication for convenient data transfer and documentation.

Typical applications

The YT series three-angle gloss meters with touchscreens are suitable for:

Automotive industry
Mechanical engineering
Surface technology
Electroplating plants
Metalworking
Corrosion protection
Quality assurance
Incoming goods inspection
Industrial coating processes
Paint and powder coating systems

The devices are suitable for both mobile on-site measurements and continuous quality control in industrial manufacturing processes.
