Manufacturer no.:
247554

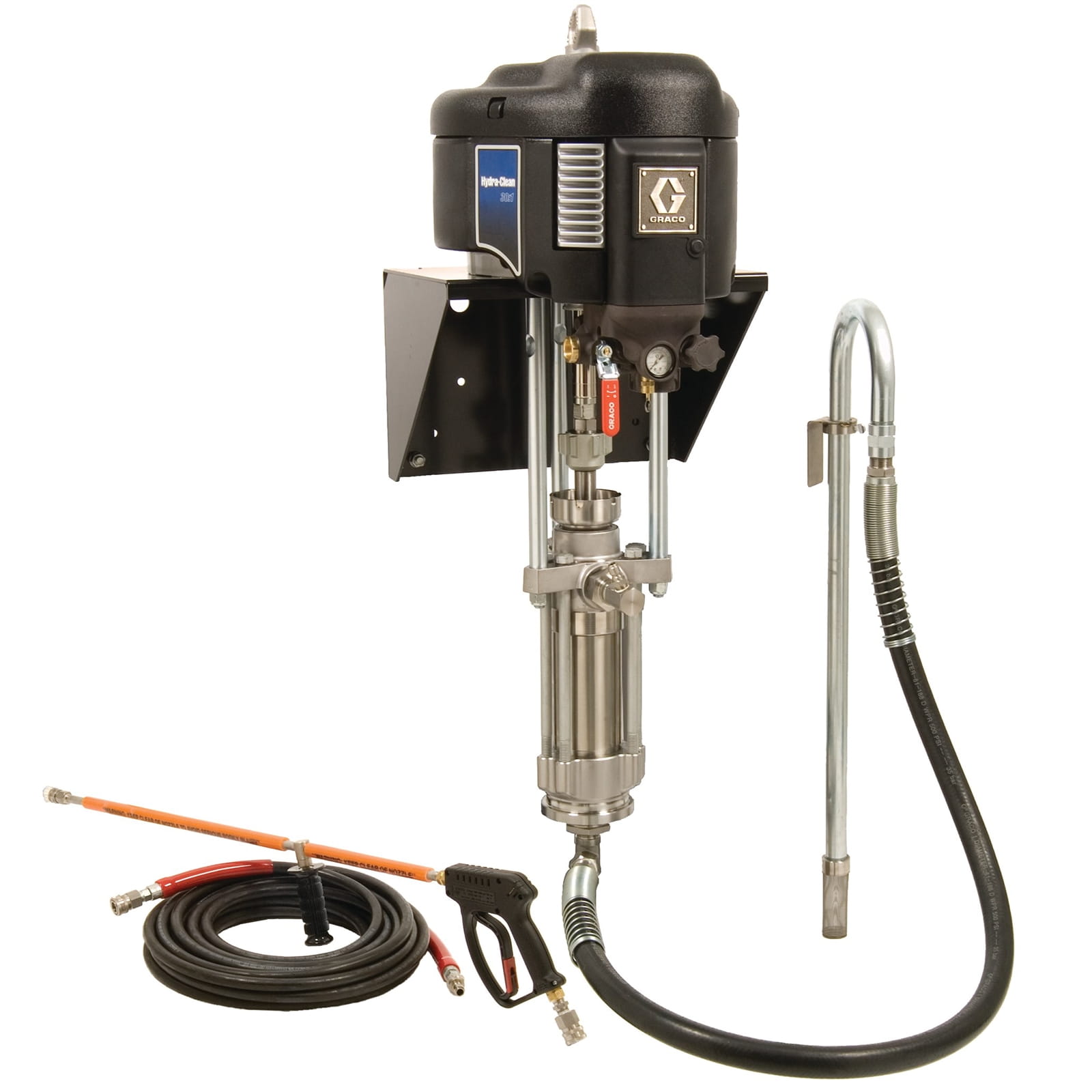

Hydra-Clean® 30:1 Pneumatic high-pressure cleaner complete unit for wall mounting
€21,925.42*
% €25,420.78* (13.75% saved)Ready for shipping in 5-8 days
Also interesting
Product information
Clean your system quickly, easily and efficiently with Graco Hydra-Clean compressed air cleaners. The system with the Graco NXT air motor is ideal for industrial and hygienic applications such as food processing, heavy cleaning, maintenance, shipyards, oil rigs and much more.
Ideal for heavy-duty cleaning and maintenance for industrial and hygienic applications
- Excellent for high-pressure cleaning and plumbing applications
- Meets common pressure, flow and material requirements
- For open-top pails
- For use with cold or warm water up to 200°F (93°C)
- Portable and capable of downward spraying – suitable for plumbing applications
- Multiple guns can be used
- Effective cleaning with water, detergent or chemical fluids
| Air inlet size (inches): | 3/4 |
|---|---|
| Air inlet thread type: | NPT |
| Assembly: | Wall mounting |
| Energy type: | Pneumatic |
| Maximum delivery rate (L/min): | 26 |
| Maximum delivery rate at 60 CPM (L/min): | 25.9 |
| Maximum operating pressure (MPa): | 21.1 |
| Maximum operating pressure (kPa): | 21130 |
| Maximum operating pressure (psi): | 3065 |
| Model: | Hydra Clean |
| Motor series: | NXT air motor |
| Mounting position: | Wall mounting |
| Permissible operating pressure (bar): | 211 |
| Pump type: | Dura-Flo 1800 pump |
| Size of the air inlet (cm): | 1,905 |
| Size of the air inlet (mm): | 19.05 |
| Transmission ratio of the pump: | 30:1 |
| Type: | Hazardous Location Pressure Washer |
| Volume per cycle (oz): | 14.5 |
| Weight (kg): | 129 |
More information
- Product number: 1037393
- Manufacturer: Graco
- EAN: 00633955323162
- Weight: 151.5 kg
- Length: 1400 mm
- Width: 660 mm
- Height: 720 mm
Technical details
Operating specifications
| UPC product | 633955323162 |
|---|---|
| Division | PRO |
| Price Block | 1 4 0 |
| Country of Origin | US |
| Unit | EA |
| Height | 72 CM |
| Length | 140 CM |
| Width | 66 cm |
| Volume | . 665 m3 |
| Shipping weight | 151.5 KG |
| HTS code (GB) | 8424300800 |
| HTS code (EU) | 8424300800 |
Technical
| Air inlet size (cm) | 1. 905 |
|---|---|
| Air inlet size (in) | 3/4 |
| Air inlet size (mm) | 19. 05 |
| Maximum flow rate (L/min) | 26 |
| Maximum fluid flow rate @ 60 CPM (GPM) | 6. 8 |
| Maximum fluid flow rate @ 60 CPM (L/min) | 25. 9 |
| Maximum working pressure (bar) | 211 |
| Maximum working pressure (kPa) | 21130 |
| Maximum working pressure (psi) | 3 065 |
| Model | Hydra -Clean |
| Motor Series | NXT Air Motor |
| Mount type | Wall Mount |
| Volume per cycle (oz) | 14. 5 |
| Weight (kg) | 129 |
| Maximum Working Pressure (MPa) | 21. 1 |
Further manufacturer information
Produktbroschüre
Produkthandbücher
- 313216S, Manual, Hydra-Clean Komplettgeräte, Anleitungen und Teile (Deutsch)
- 313216S, Manual, Hydra-Clean Komplettgeräte, Anleitungen und Teile (русский)
- 313216S, Manual, Hydra-Clean Komplettgeräte, Anleitungen und Teile (한국어)
- 313216S, Manual, Hydra-Clean Komplettgeräte, Anleitungen und Teile (English)
- 313216S, Manual, Hydra-Clean Komplettgeräte, Anleitungen und Teile (Français)
- 313216S, Manual, Hydra-Clean Komplettgeräte, Anleitungen und Teile (Español)
- 313216S, Manual, Hydra-Clean Komplettgeräte, Anleitungen und Teile (中文)
- 313216S, Manual, Hydra-Clean Komplettgeräte, Anleitungen und Teile (日本語)
CAD Drawings
Verkaufsliteratur
- 300570-L Prozessgeräte (Deutsch)
- 300570-L Prozessgeräte (Português (BR))
- 300570-L Prozessgeräte (English)
- 300570-L Prozessgeräte (English (UK))
- 300570-L Prozessgeräte (Español)
- 300570-L Prozessgeräte (Français)
- 300570-L Prozessgeräte (Italiano)
- 300570-L Prozessgeräte (Polski)
- 300570-L Prozessgeräte (Svenska)
- 300570-L Prozessgeräte (Türkçe)
Zertifizierungen
